4. LUBRICATION SYSTEM
4
-
5
MX’er SYSTEM
Outer Rotor
Outer Rotor
Inner Rotor
Pump Body
Screw

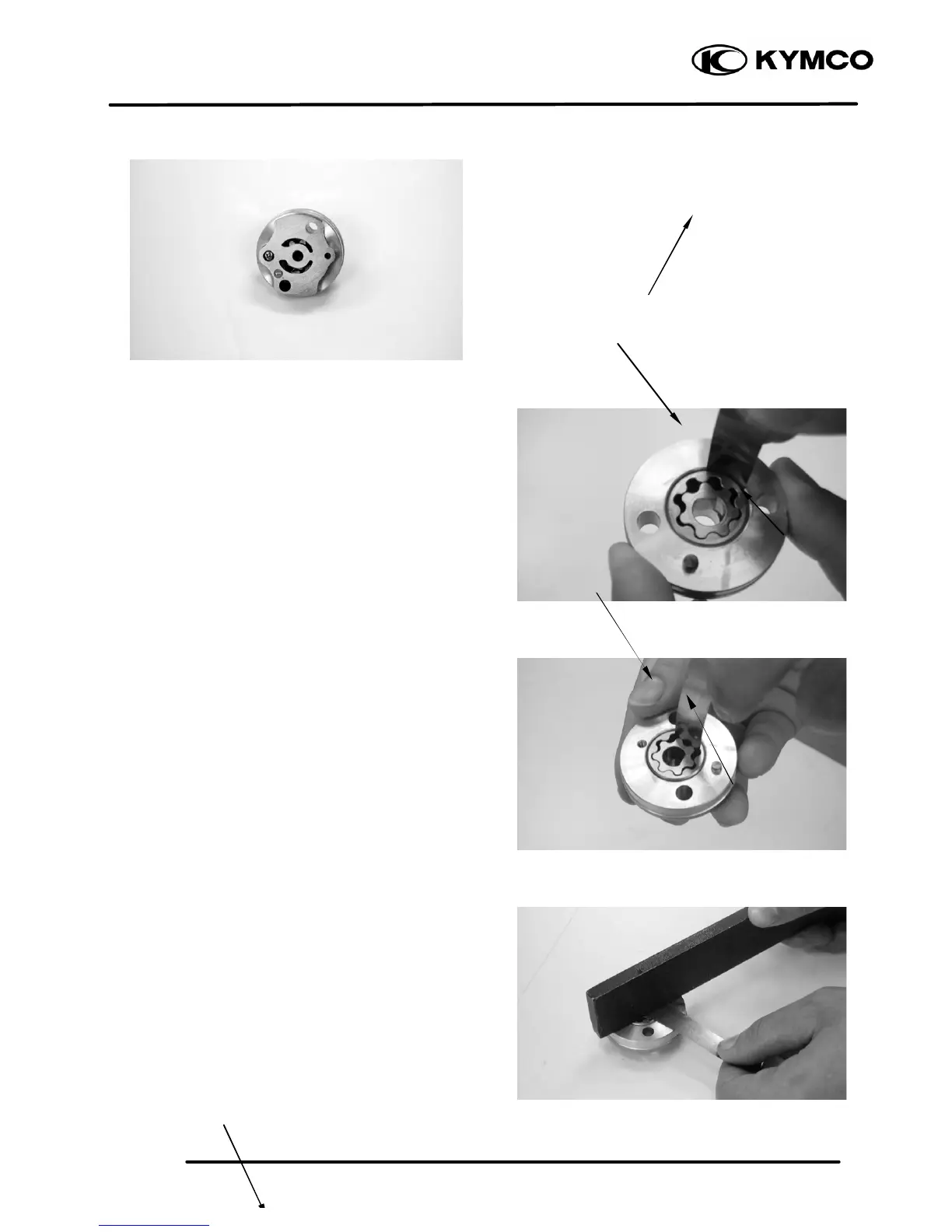

Remove the screw and disassemble the oil
pump.
INSPECTION
Measure the pump body-to-outer rotor
clearance.
Service Limit: 0.12mm
Measure the inner rotor-to-outer rotor
clearance.
Service Limit: 0.12mm
Measure the rotor end-to-pump body
clearance.
Service Limit: 0.2mm
ASSEMBLY
Pump Body
