4. LUBRICATION SYSTEM
4
-
6
MX’er SYSTEM
Screw
Inner Rotor
Bolts
Pump Cover
Outer Rotor
Dowel Pin
Oil Pump
Arrow

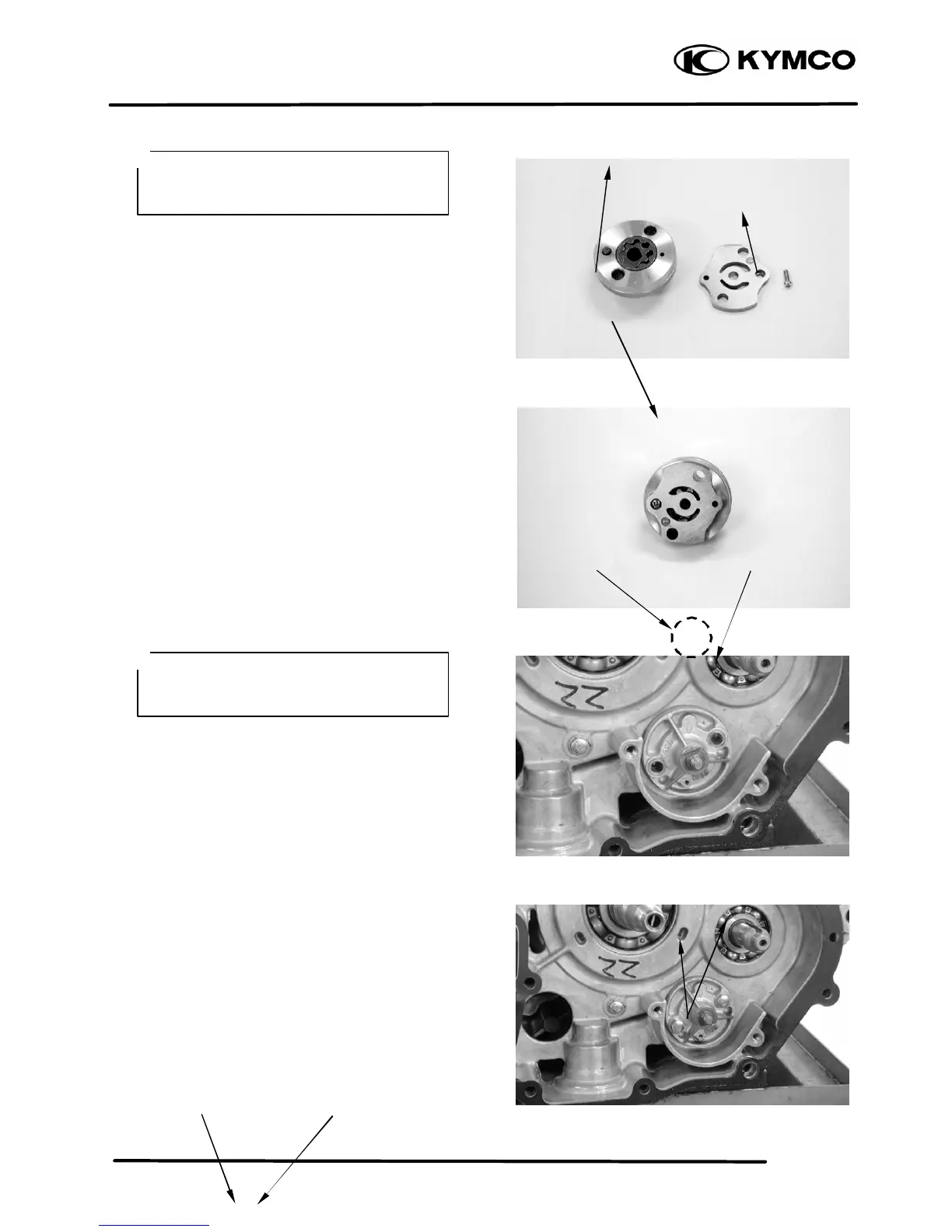

Install the outer rotor, inner rotor and pump
shaft into the pump body.
Install the dowel pin.
Install the pump cover by aligning the hole in
the cover with the dowel pin.
Tighten the screw to secure the pump cover.
Make sure that the pump shaft rotates freely
without binding.
INSTALLATION
Install the oil pump into the crankcase.
After the oil pump is installed, tighten the two
mounting bolts.
Install the pump driven gear and drive chain by
aligning the pump driven gear with the cutout in
Insert the pump shaft by aligning the flat on
the shaft with the flat in the inner rotor.
*
Install the oil pump with the arrow on the
pump body facing up and fill the oil pump
with engine oil before installation.
*
