4. LUBRICATION SYSTEM
4
-
7
MX’er SYSTEM

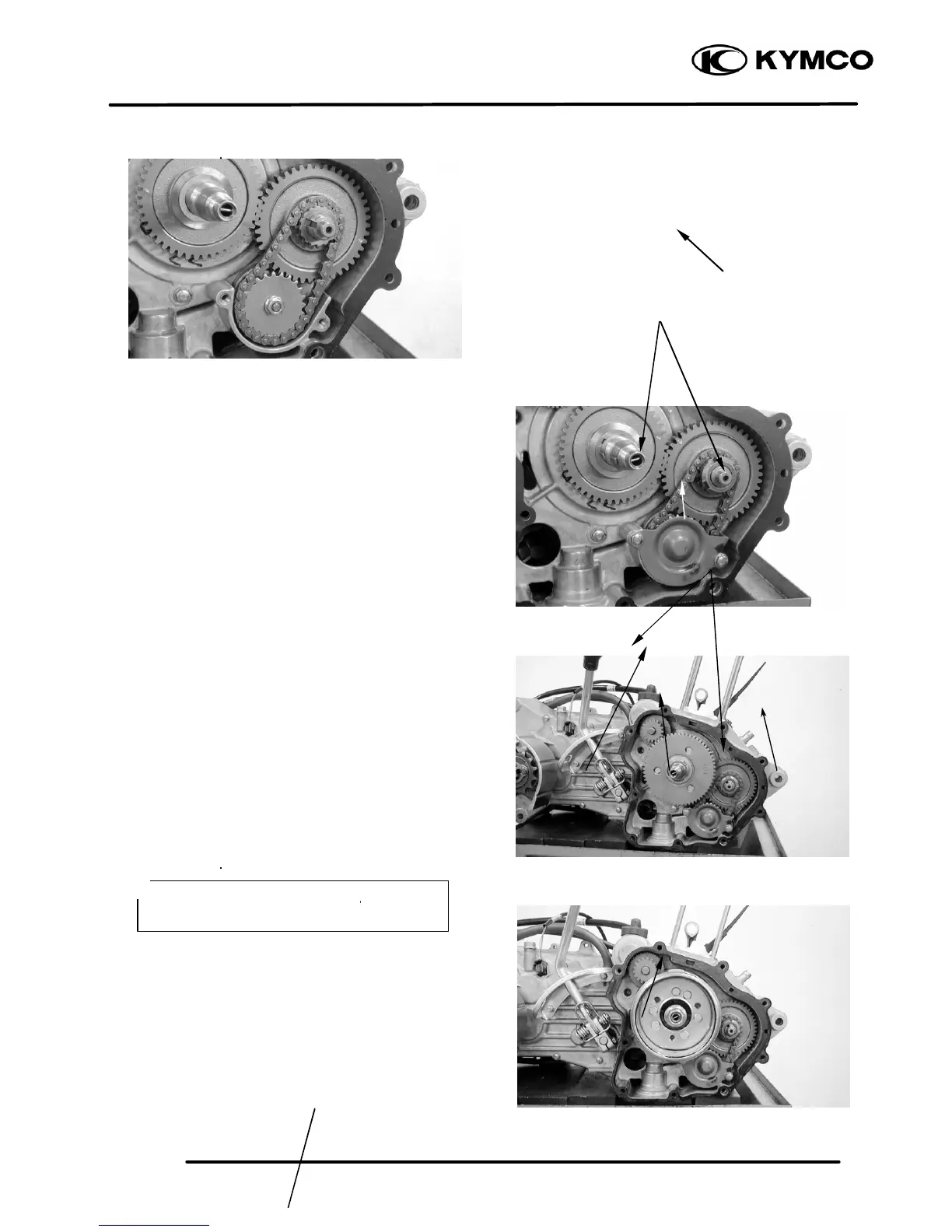

Flywheel
Starter Idle Gear
Bolts
Nut
Pump Driven Gear
Starter Clutch
the pump shaft.
Install and tighten the pump driven gear nut.
Torque: 0.8 1.2kgf-m
Install the oil separator cover and tighten the
bolts.
Install the starter idle gear and starter clutch.
Install the starter clutch nut and tighten it to
specified torque..
Torque: 9.5 kgf-m
Install the gasket and dowel pins.
Install the A.C. generator flywheel.
Install the right crankcase cover.
Torque: 0.8 1.2kgf-m
Oil Separator Cover
Gasket
Dowel Pin
Diagonally tighten the bolts in 2 3 times.
*
