9. DRIVE AND DRIVEN PULLEYS
9
-
10
MX’er SYSTEM

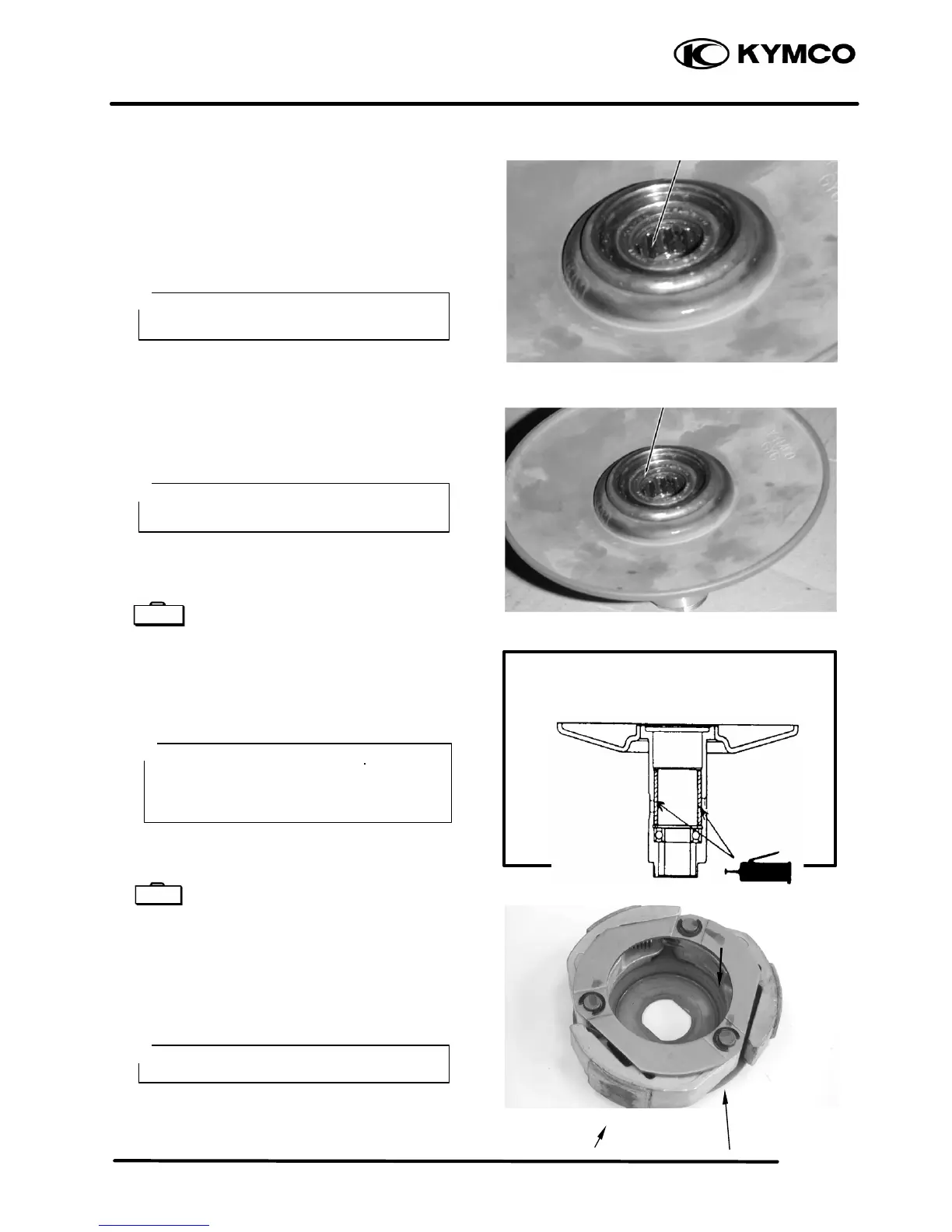

DRIVEN PULLEY FACE BEARING
REPLACEMENT
Drive the inner needle bearing out of the driven
pulley face.
Remove the snap ring and drive the outer bearing
out of the driven face.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven face
with the sealed end facing up.
Bearing Puller E008
Seat the snap ring in its groove.
Apply grease to the driven face bore areas.
Press a new needle bearing into the driven
face.
Oil Seal And Bearing Install E014
CLUTCH DISASSEMBLY
Remove the circlips and retainer plate to
disassemble the clutch.
Inner Bearing
Retainer Plate
Outer Bearing
Discard the removed bearing and replace
with a new one.
*
Special
Discard the removed bearing and replace
with a new one.
*
Pack all bearing cavities with 9 9.5g
grease.
Specified grease: Heat resistance 230°C
*
Special
Keep grease off the clutch linings.
*
