9. DRIVE AND DRIVEN PULLEYS
9
-
13
MX’er SYSTEM

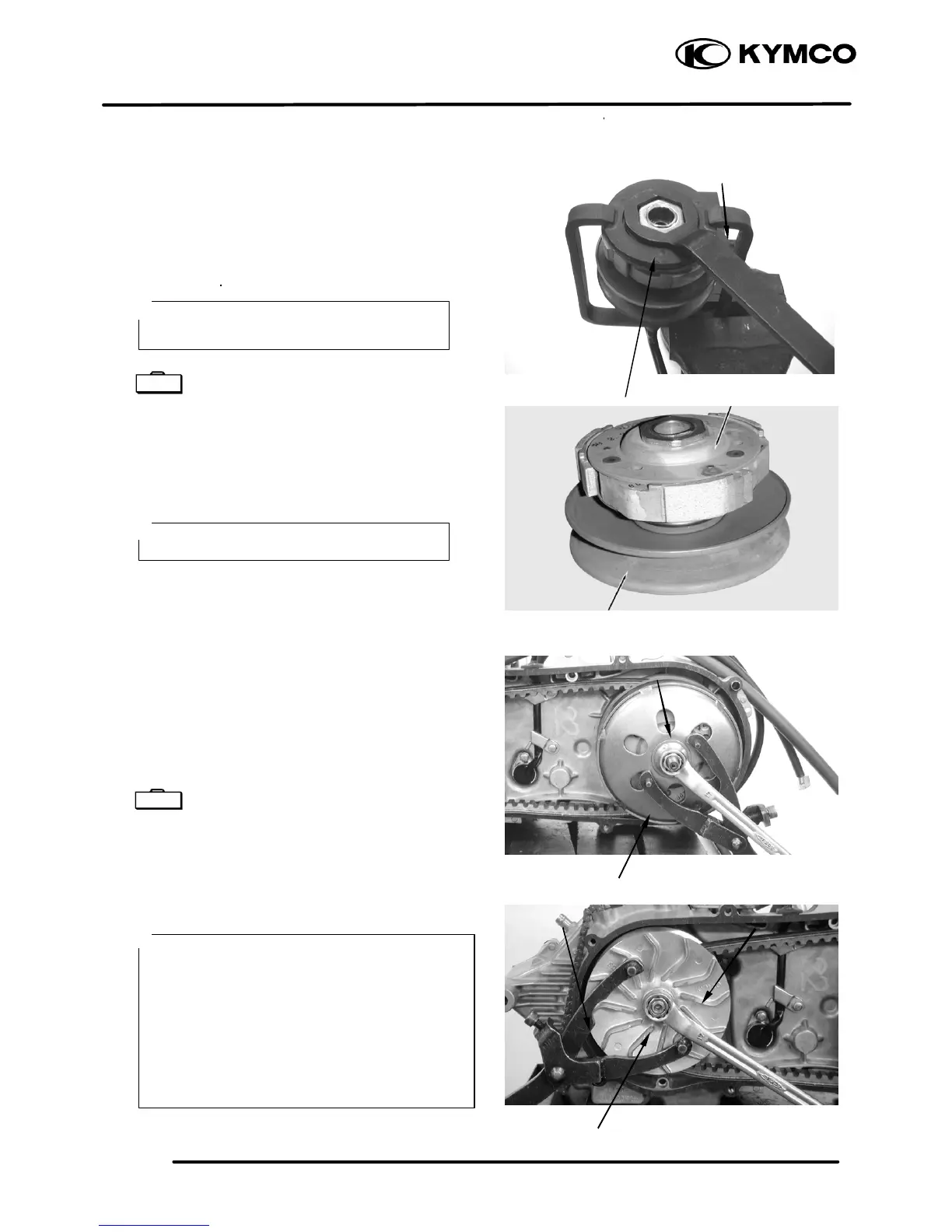

Compress the clutch spring compressor and
install the drive plate nut.
Set the clutch spring compressor in a vise and
tighten the drive plate nut to the specified
torque.
Torque: 5.0 6.0kgf-m
Clutch Spring Compressor E027
INSTALLATION
Install the clutch/driven pulley onto the drive
shaft.
Install the clutch outer.
Hold the clutch outer with the flywheel
holder.
Install and tighten the clutch outer nut.
Torque: 5.5kg-m
Universal Holder E017
Install the drive belt.
Install the drive pulley face, starting ratchet
and drive face nut.
T orque: 5.5 6.5kgf-m
Universal Holder
Drive Pulley
Driven Pulley
D
riven Face
Clutch Spring Compressor
Lock Nut Wrench
Special
Clutch Outer
Universal Holder
Nut
Be sure to use a clutch spring compressor
to avoid spring damage.
*
Special
Keep grease off the drive shaft.
*
Clutch
When installing the drive pulley face, compr
ess
it to let the drive belt move downward to the
lowest position so that the drive pulley can be
tightened.
Install the starting ratchet by aligning the starting
ratchet teeth with the crankshaft teeth.
Do not get oil or grease on the drive belt or
pulley faces.
*
