10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10
-
5
MX’er SYSTEM

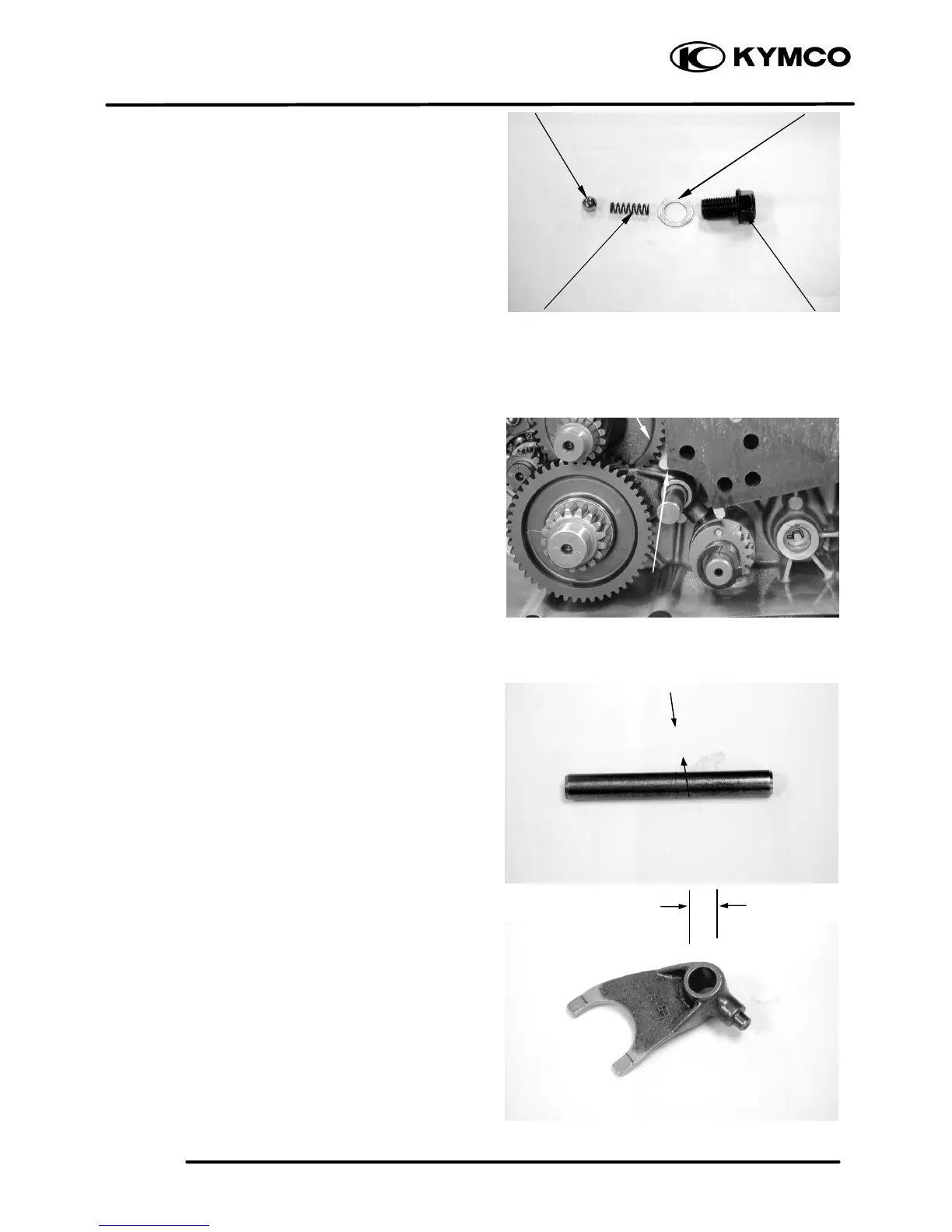

Remove spring, washer and shift cam stopper.
Remove the transmission fork shaft and
transmission fork.
Measure the transmission fork shaft O.D.
Service Limit: 11.936
Measure the transmission fork shaft hole I.D.
Service Limit: 12.058
Transmission fork
Transmission fork shaft
Shift Cam Stopper
Washer
Plug
