10. FINAL REDUCTION/
TRANSMISSION SYSTEM
10
-
9
MX’er SYSTEM

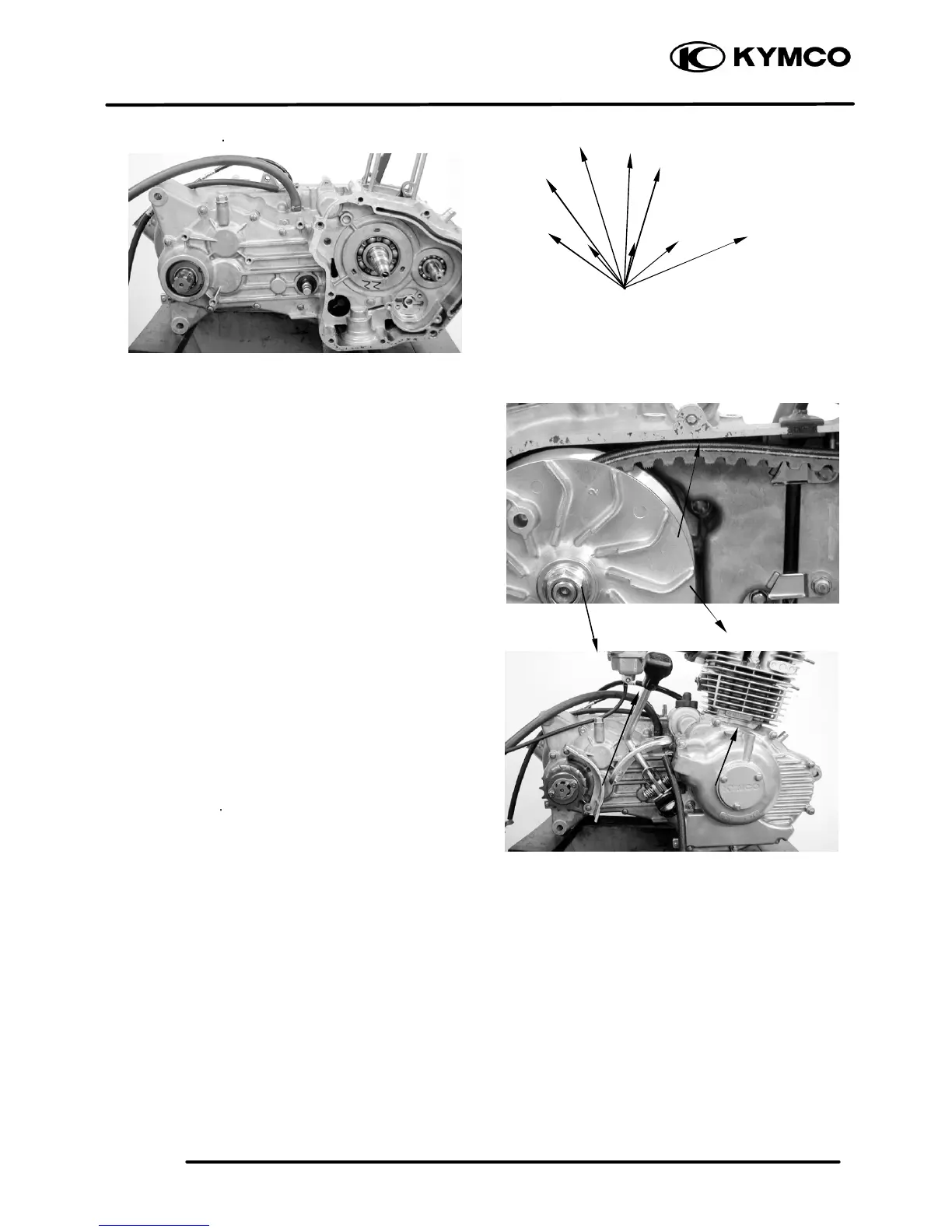

Tighten the crankcase attaching bolts.
Torque: 0.8 1.2kgf-m
Tighten the left crankcase attaching bolt.
Install the shaft gear, balance gear, oil pump,
starter clutch and flywheel.
Install and tighten the right case cover bolt.
Install the shift gear spindle.
Install the cylinder.
Specified Gear Oil:
KYMCO SIGMA GEAR OIL 90#
Oil Capacity:
At disassembly : 0.4 liter
At change : 0.2 liter
Install and tighten the oil check bolt.
Torque: 0.8 1.2kgf-m
Bolts
Bolts
Right Case Cover
Cylin
der
Oil Filler Bolt
Shift Gear Spindle
