13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13
-
7
MX’er SYSTEM
Replace if it is out of specification.

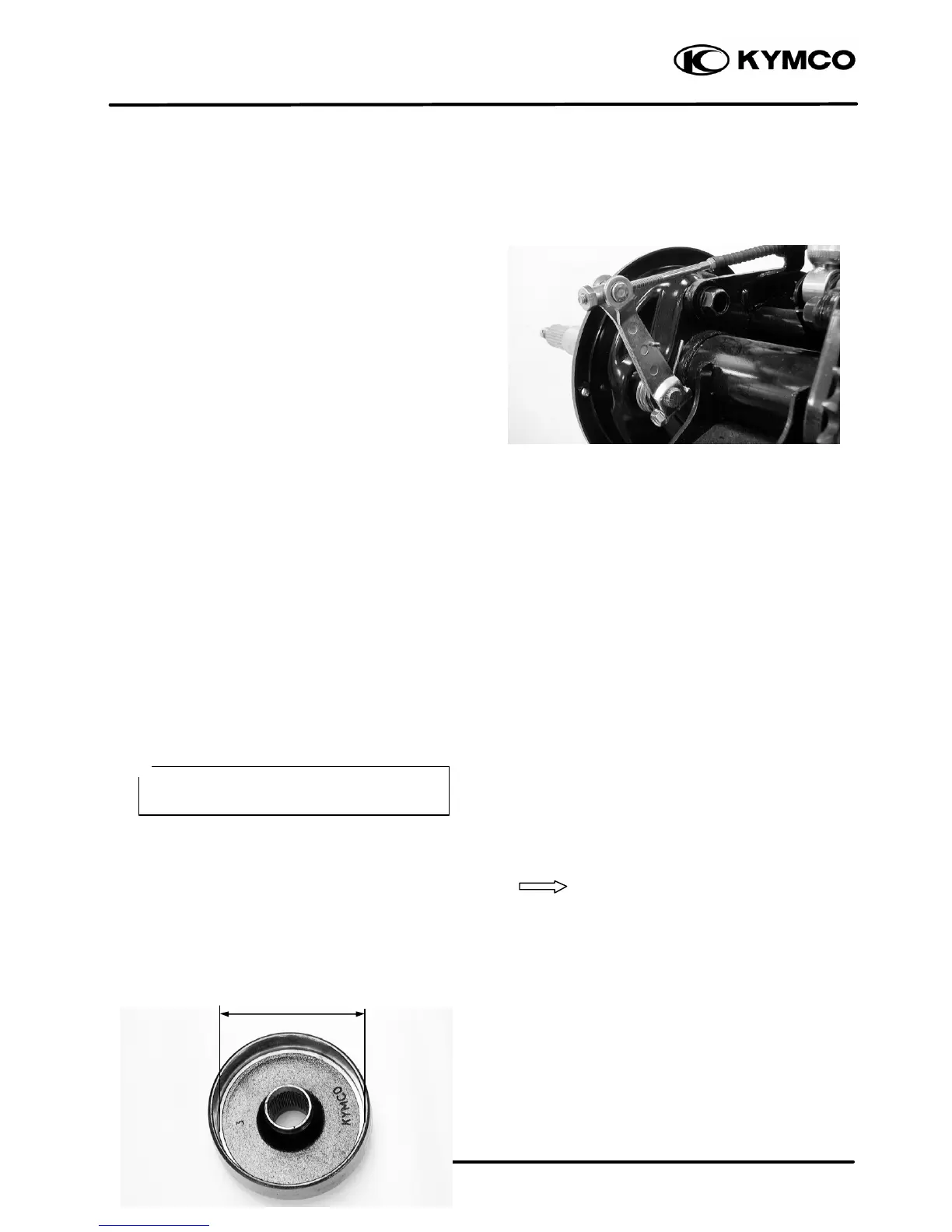

Disconnect the rear brake cable from the
camshaft lever.
Remove the brake shoes.
INSPECTION
Measure lining thickness of the brake shoes.
Service limit: 2.0 mm
Replace if it is out of specification.
Remove the rear axle from left side.
Remove four bolts and the rear axle hub.
Tap the axle and with a rubber hammer,
this will avoid damage the axle thread.
*
