13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13
-
13
MX’er SYSTEM

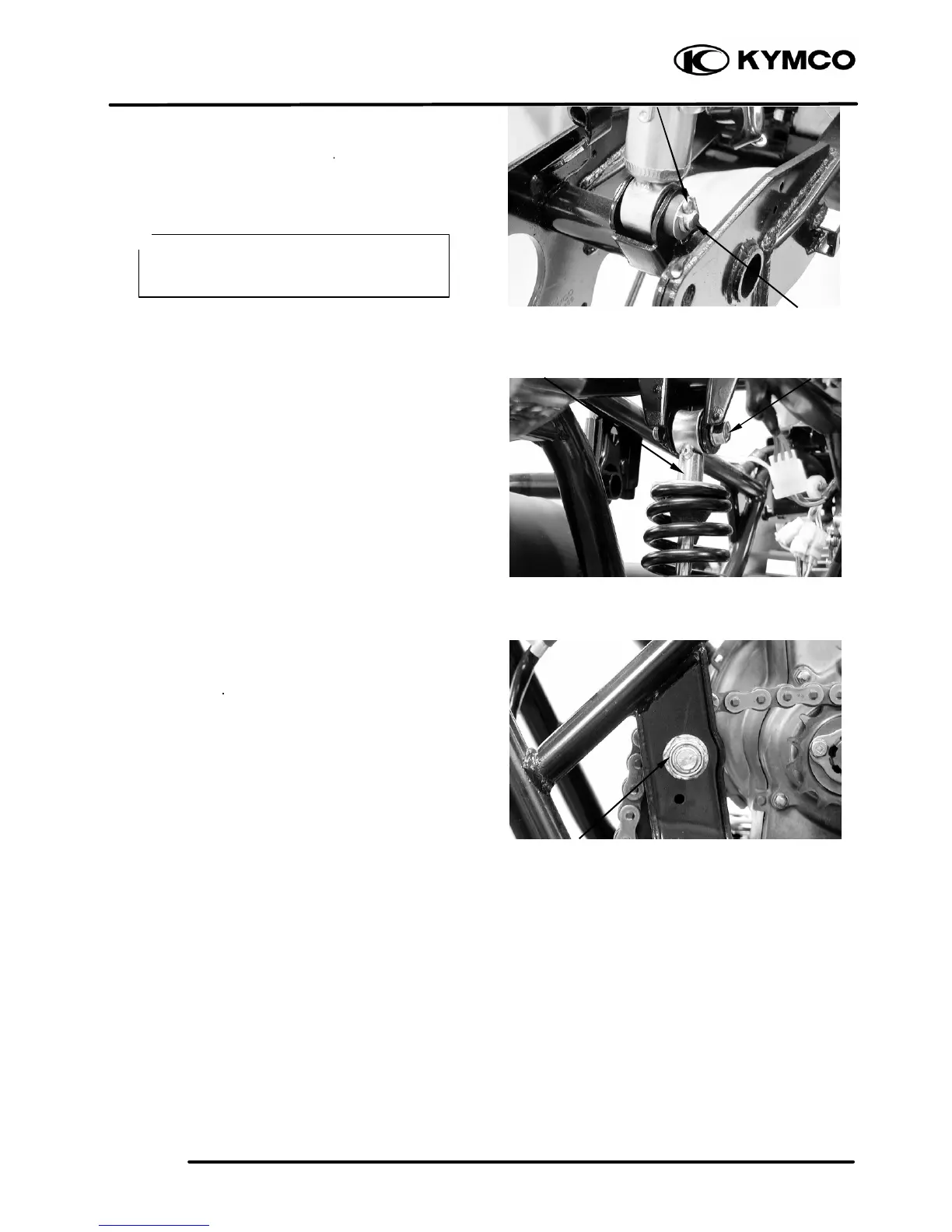

Remove the rear wheels, rear hub with rear
axle.
Refer to the “REAR WHEEL REMOVAL”
section
Remove the cotter pin, washer and shaft.
Remove the bolt, then remove the shock
absorber.
Check the tightening torque of the pivot shaft
(swingarm) securing nut.
Torque: 6.0 8.0kgf-m
Check the swing arm side play by moving it
from side to side.
If side play noticeable, check the inner collar,
bearing, bushing and thrust cover, or adjust the
shim.
When removing the lower shaft, hold the
swing arm so that it does not drop
downwards when the shaft id removed.
*
Cotter Pin
Shaft
Absorber
Bolt
Securing Nut
