13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13
-
18
MX’er SYSTEM
BRAKE PAD/DISK

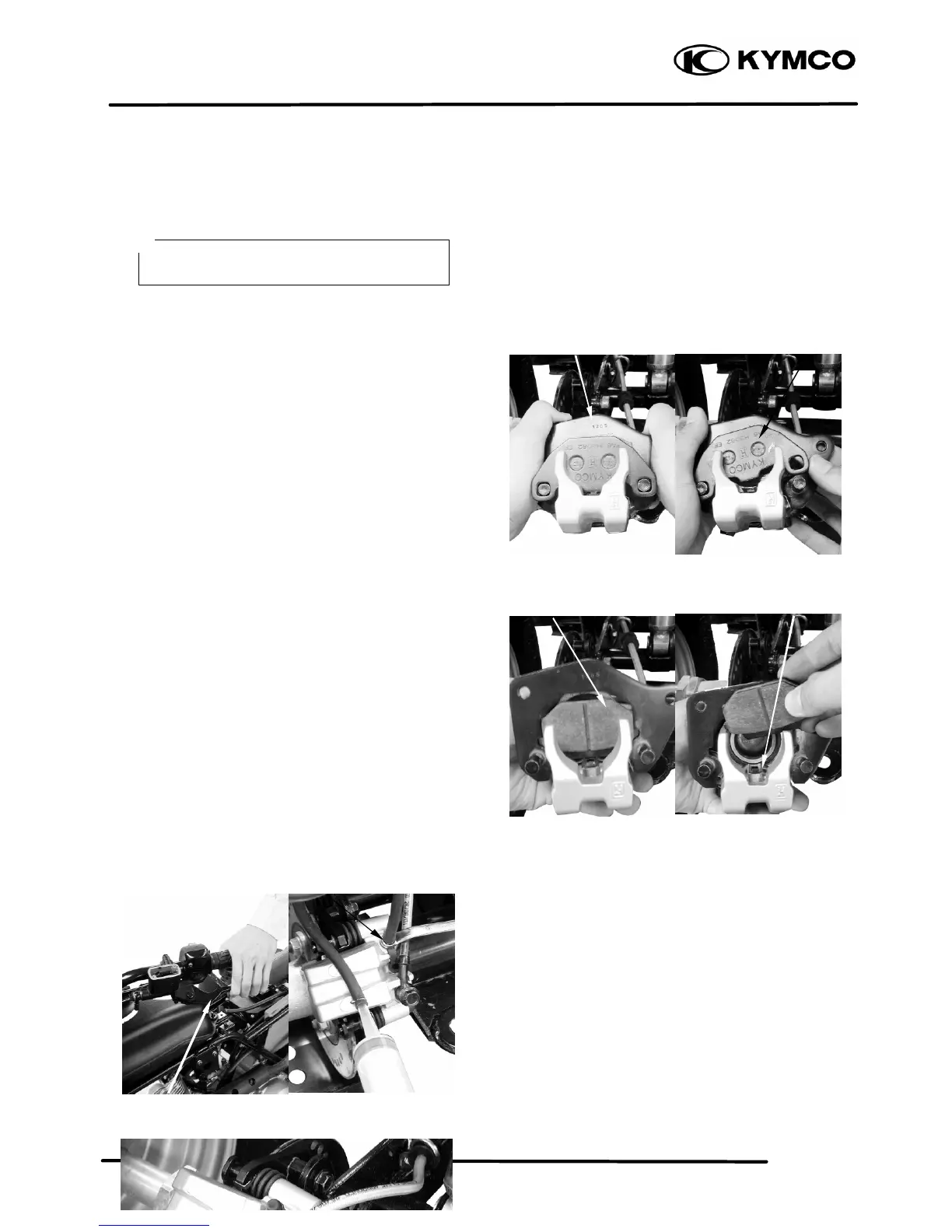

BRAKE PAD REPLACEMENT
Remove the two bolts attaching the brake
caliper holder.
Remove the brake caliper.
Push the brake caliper holder and then remove
brake pad.
Remove the other brake pad and pad springs.
ASSEMBLY
Assemble the brake pads in the reverse order
of removal.
BRAKE DISK
Measure the brake disk thickness.
Service Limit: 3.0mm
Measure the brake disk run out.
Service Limit: 0.3mm
Brake Lever
Bleed Valve
The brake pads can be replaced without
removing the brake fluid tube.
*
Brake Caliper Holder
Pad Spring
Bo
lts
Brake Bad
Brake Bad
