2LW/2LX
1-5-36
9. Remove the following connectors from
the main PWB.
Twelve connectors: 4in1 model (with
FAX)
Eleven connectors: 3in1 model (with-
out FAX)
10. Remove four screws and then remove
the main PWB.
11. Check or replace the main PWB and
refit all the removed parts.

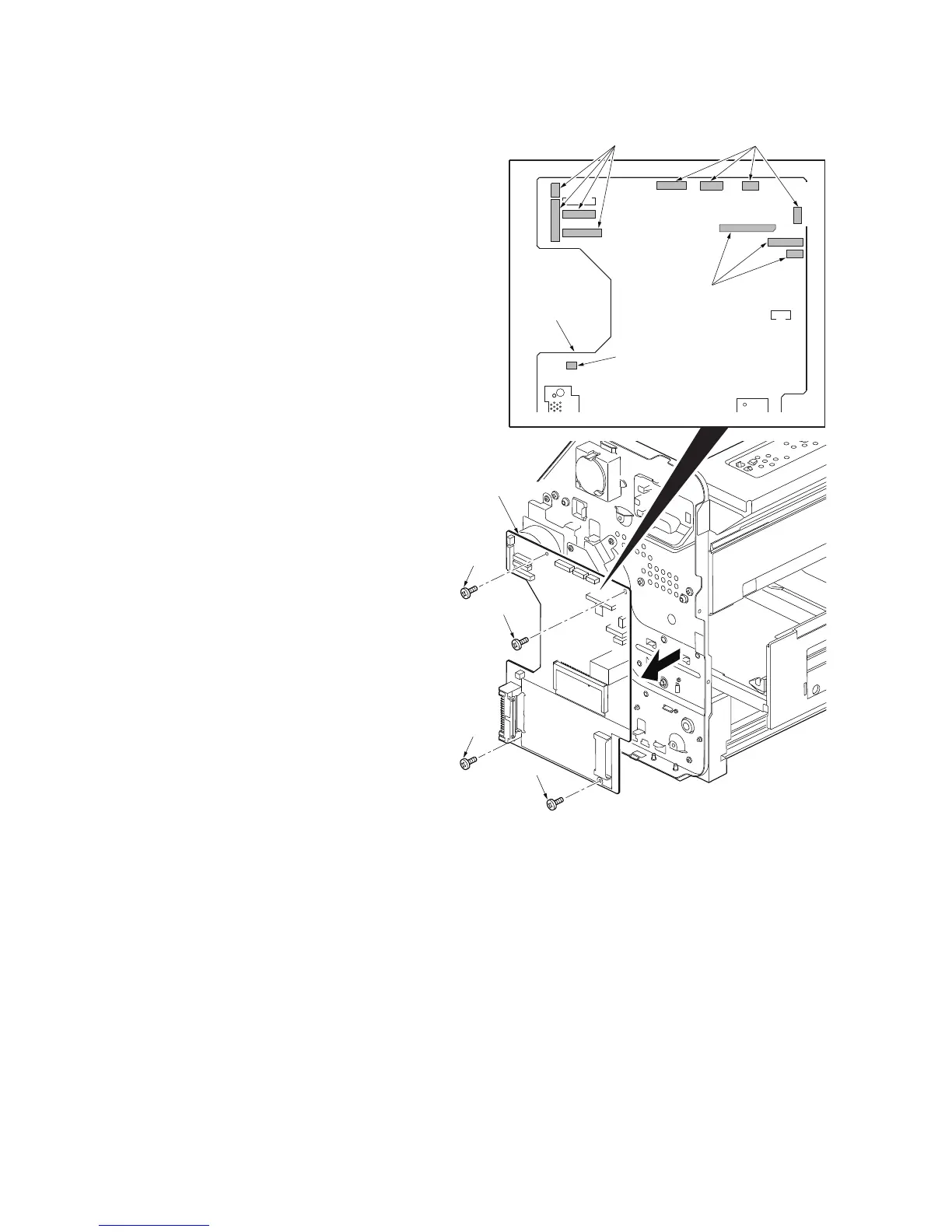

Figure 1-5-56
YC12
YC3
YC7
YC8
YC1005
YC1008
YC1004
YC14
YC16
YC13
YC15
YC1001
Screw
Main PWB
Main PWB
(4in1 models (with FAX) only)
Connectors
Connectors
Connectors
Connector
Screw
Screw
Screw
To Next Page
