Illustrated Parts List
3000C Force Feed Loader 7-3

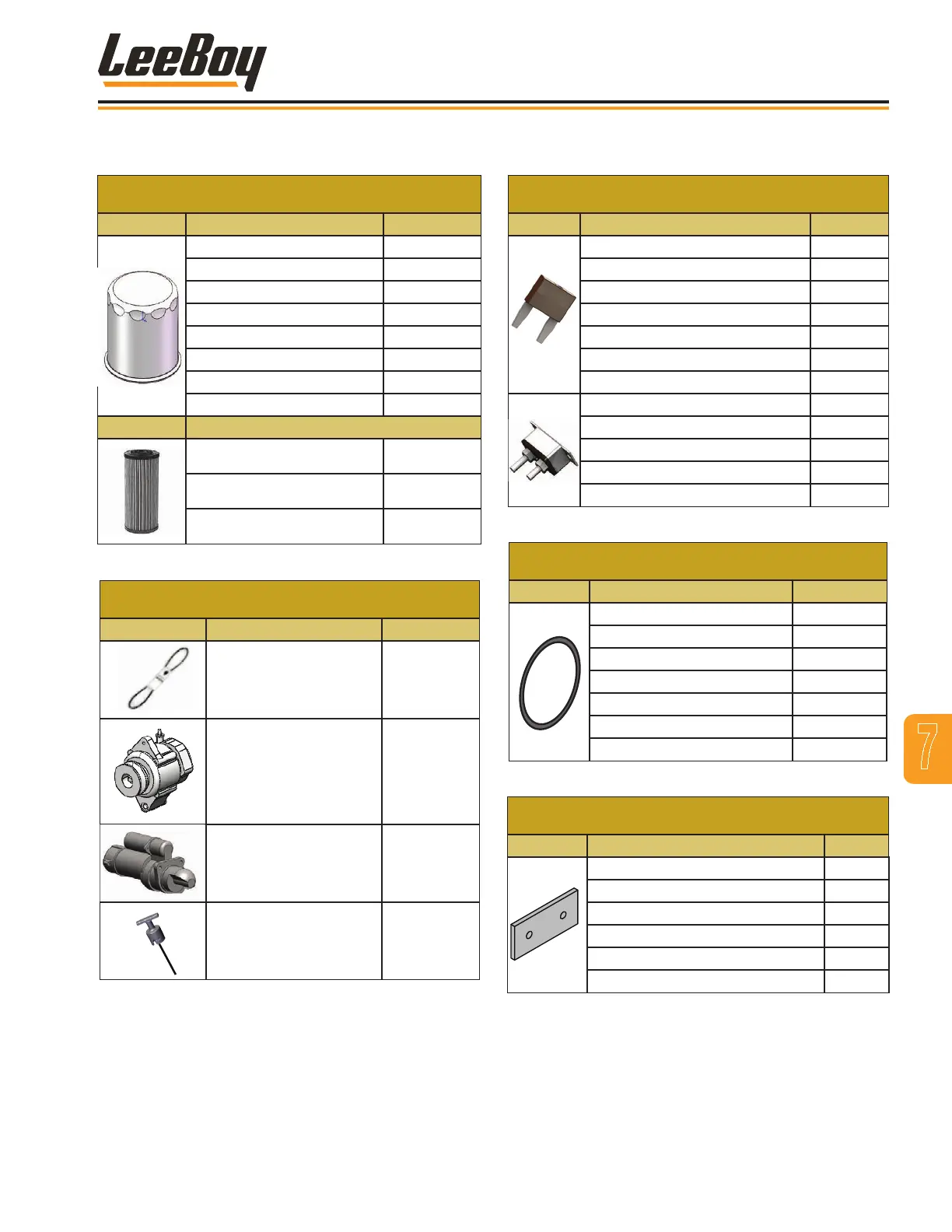

QUICK REFERENCE
FILTERS/STRAINERS
Engine Description Part #
Oil Filter 1005230-06
Fuel/Water Separator Filter 1013667-18
Fuel Filter 1011263-10
Air Cleaner, Primary 1011263-13
Air Cleaner, Secondary 1012474-25
Crankcase Filter 1011263-12
DEF Tank Filter 1013667-24
DEF Supply Module Filter 1013667-23
Hydraulic
Charge Filter 290030
Suction Strainer 1011817
Charge/Return Filter Head 290010
ENGINE COMPONENTS
Engine Description Part #
Engine Serpentine Belt 1013667-19
Alternator 1004985-01
Starter 1008650-01
Dipstick 1011263-14
ELECTRICAL COMPONENTS
Description Part #
5A Fuse 36746
10A Fuse 36340
15A Fuse 36341
20A Fuse) 36342
30A Fuse 36218
175A Fuse 1014120
200A Fuse 1014121
Breaker, 10A 34964
Breaker, 10A (w/Mount) 986546
Breaker, 15A 989260
Breaker, 25A 35701
Breaker, 30A 989261
O-RINGS
Description Part #
O-Ring, Motor Seal 1011461-01
O-Ring, Gear Box 981740-51
O-Ring, (Wheel Hub) 981740-138
O-Ring, Central Housing 1010634-02
O-Ring, (Brakes) 1010634-69
O-Ring, (Differential) 1010634-89
O-Ring, (Differential) 981740-134
Cutting Edges
Description Part #
Cutting Edge, Feeder, Low 750507
Cutting Edge, Moldboard Side 750508
Cutting Edge, Feeder 750509
Cutting Edge, 6 x 13, Carbide - Opt. 988744
Cutting Edge, 6 x 42, Carbide - Opt. 988745
Cutting Edge, 6 x 44, Carbide - Opt. 988746
Specications and designs may change without prior notice. These
illustrations do not necessarily show the standard versions.
