5. Loosen the jam nut on the adjusting screw for the
drive side.
6. Adjust both screws the same amount, trying to keep
both shafts in line with each other and to get the one
inch of play required.
7. Tighten jam nuts.
8. Tighten mounting bolts.
9. Recheck the chain for approximately one inch of
slack. If necessary, repeat the procedure.
Lever Linkages
All lever linkages can be adjusted by loosening the jam
nut on the rod end, then adjusting position of the rod
end. Be sure after making adjustments that the jam nuts
are tightened against the rod ends.
OPERATING PROCEDURES
Start-Up Procedure
NOTE: The engine will not start unless the
conveyor, feeder chain and directional
control levers are all in the NEUTRAL
position, and the E-Stop button is released.
1. Check that conveyor lever and feeder chain lever
are both in the neutral (N) position. (Figure 4-8)

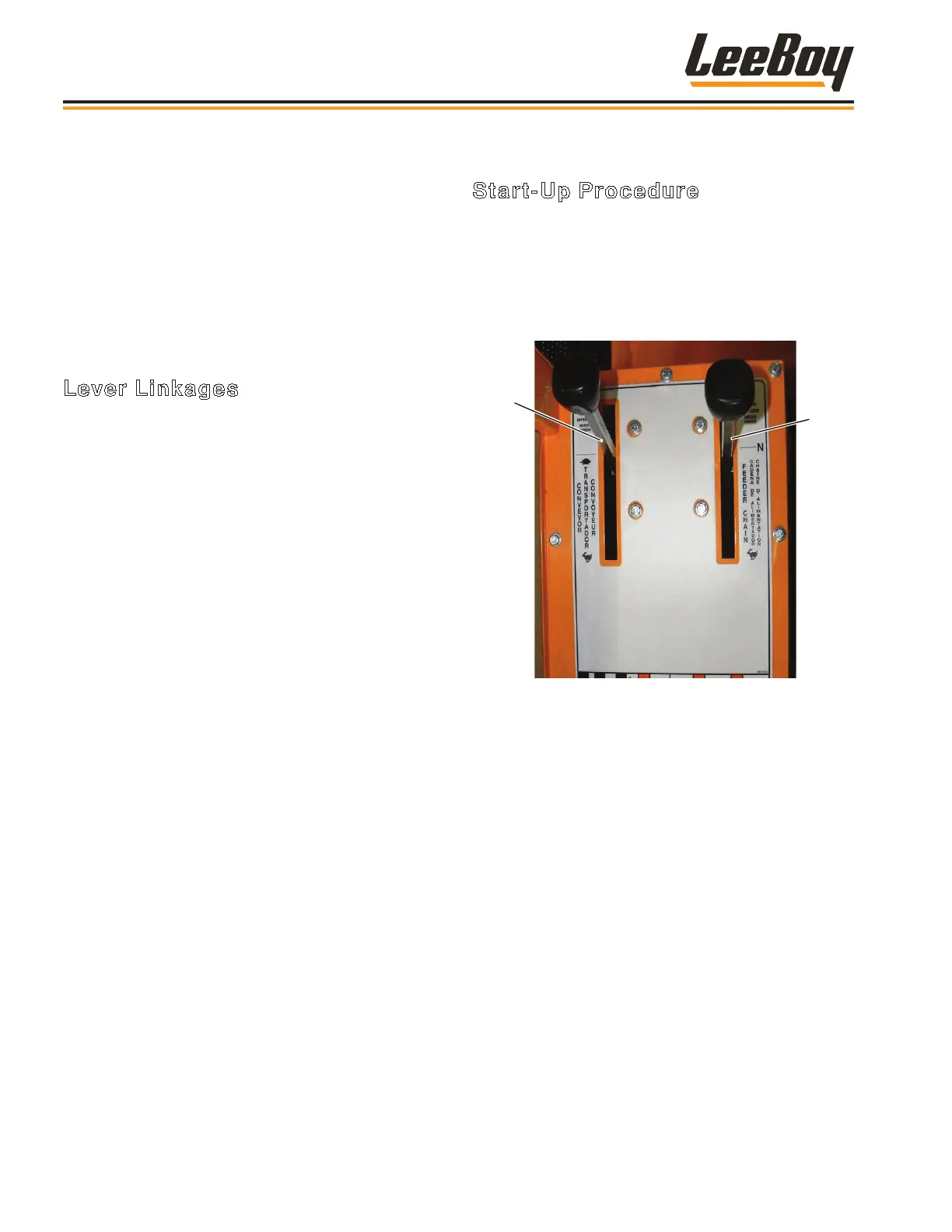

Figure 4-8. Conveyor and Feeder Levers
2. On the direction control panel, turn the parking
brake switch to the ON position. (Figure 4-9)
3. Ensure the direction control lever is in the neutral
(N) position. (Figure 4-9)
Operation
3000C Force Feed Loader4-8
