LeeBoy 3000C - Cam Roller Assembly; Feeder Chains

3. Turn nuts on both sides of machine the same
amount, keeping the feeder level.
4. Lock jam nuts.
5. Lower the feeder and check measurement.
6. Repeat to get the correct height between the feeder
blades and the transition plate.
Cam Roller Assembly
Adjust the cam roller assembly using the following
procedure (Figure 4-5):
1. Loosen both outer bolts.
2. Loosen the adjustment bolt.
3. Using a pry bar, raise the roller about 1/2-inch clear
of the rail.
4. Tighten outer bolts securely to attach bracket into
place.
5. Adjust adjusting bolt until touching the frame.
6. Tighten jam nut securely to fasten bolts into position.
2
3
4
1
5

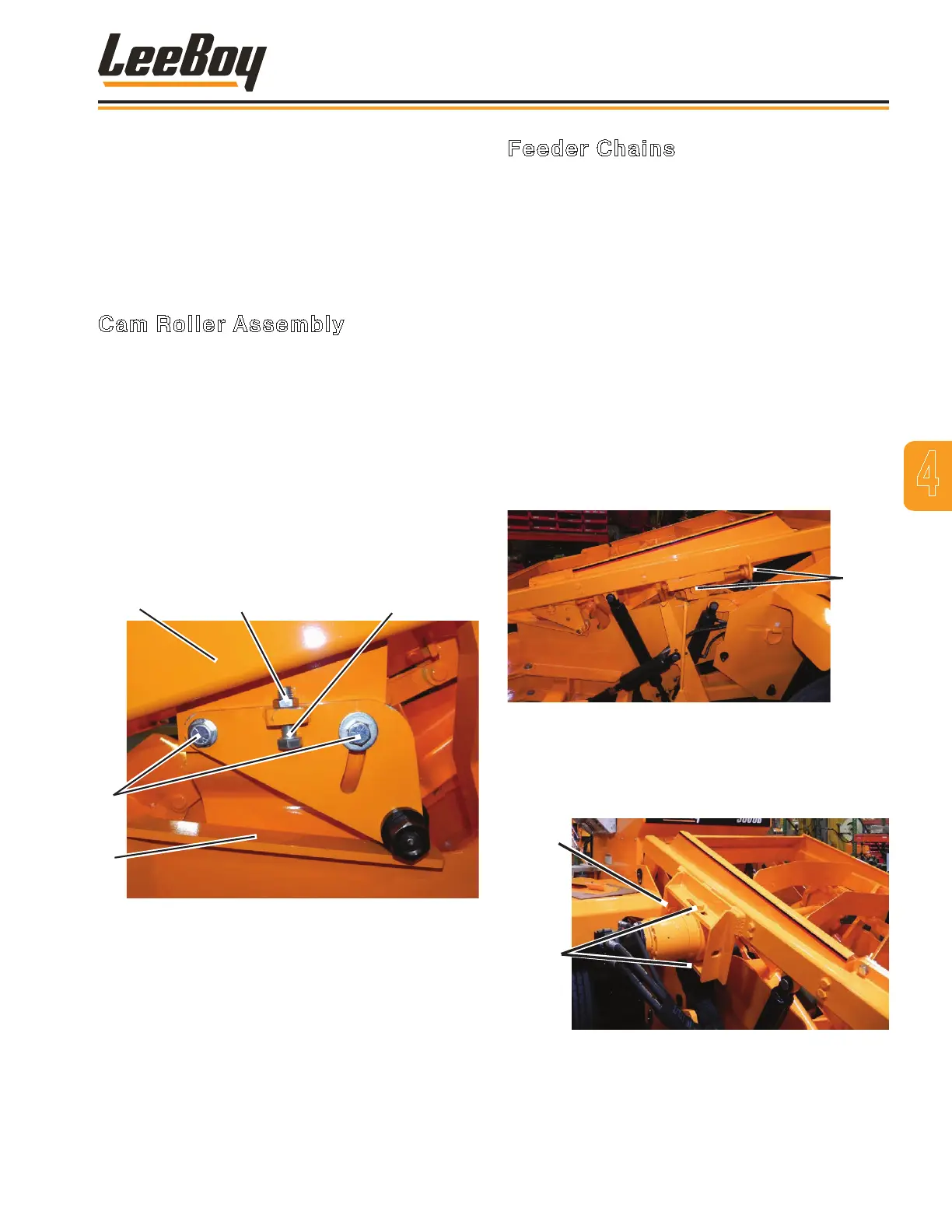

Figure 4-5. Cam Roller Assembly on Transition
Plate
1 - Rail
2 - Outer Bolts
3– Frame
4 - Jam Nut
5 - Adjusting Bolt
Feeder Chains
The feeder chains pick up material and dump it onto the
discharge conveyor belt. (Figure 4-2)
The feeder chain lever is located on the left side of the
operator’s station and controls the speed of the feeder
chain. Pushing the feeder chain lever to neutral slows
and stops the feeder chain. Pushing it forward reverses
the feeder chain. (Page 3-6)
The two chains for the feeder assembly must be
adjusted to provide one inch of “play” for proper
operation.
Perform this adjustment as follows:
1. Check the amount of play in the chains by pulling
up on the center of the chain and check for
approximately one inch of play. If the play is correct,
no adjustment is required. If the chain has too much
slack, proceed with Step 2.
Nuts
Figure 4-6. Feeder Chain Bracket and Bearing
2. Loosen the nuts securing bracket and bearing.
(Figure 4-6)
3. Loosen the jam nut of screw.
Jam
Nut
Bolts
Figure 4-7. Drive Side of Feeder Chain
4. On the drive side, loosen the bolts securing the top
and bottom of the torque hub mount . (Figure 4-7)
4
Operation
3000C Force Feed Loader 4-7
