2. Place a container under the DEF dosing unit as a
small amount of DEF may drain from the lines when
disconnected. (Dispose of the uid in accordance
with environmental regulations.)
3. Use a clean, damp cloth to wipe the unit to reduce
the risk of contamination entering the DEF system.
Debris can cause permanent damage and
premature failure in the DEF dosing unit.
4. Unscrew the DEF lter cap and remove the
equalizing element and lter element. (Figure 5-9)
5. Discard both the lter element and equalizing
element in accordance with environmental
regulations.
6. Reinstall the new lter and equalizing element.
7. Reinstall and tighten the cap.
NOTE: Lubrication on the DEF lter O-ring is not
required.
1 2 3

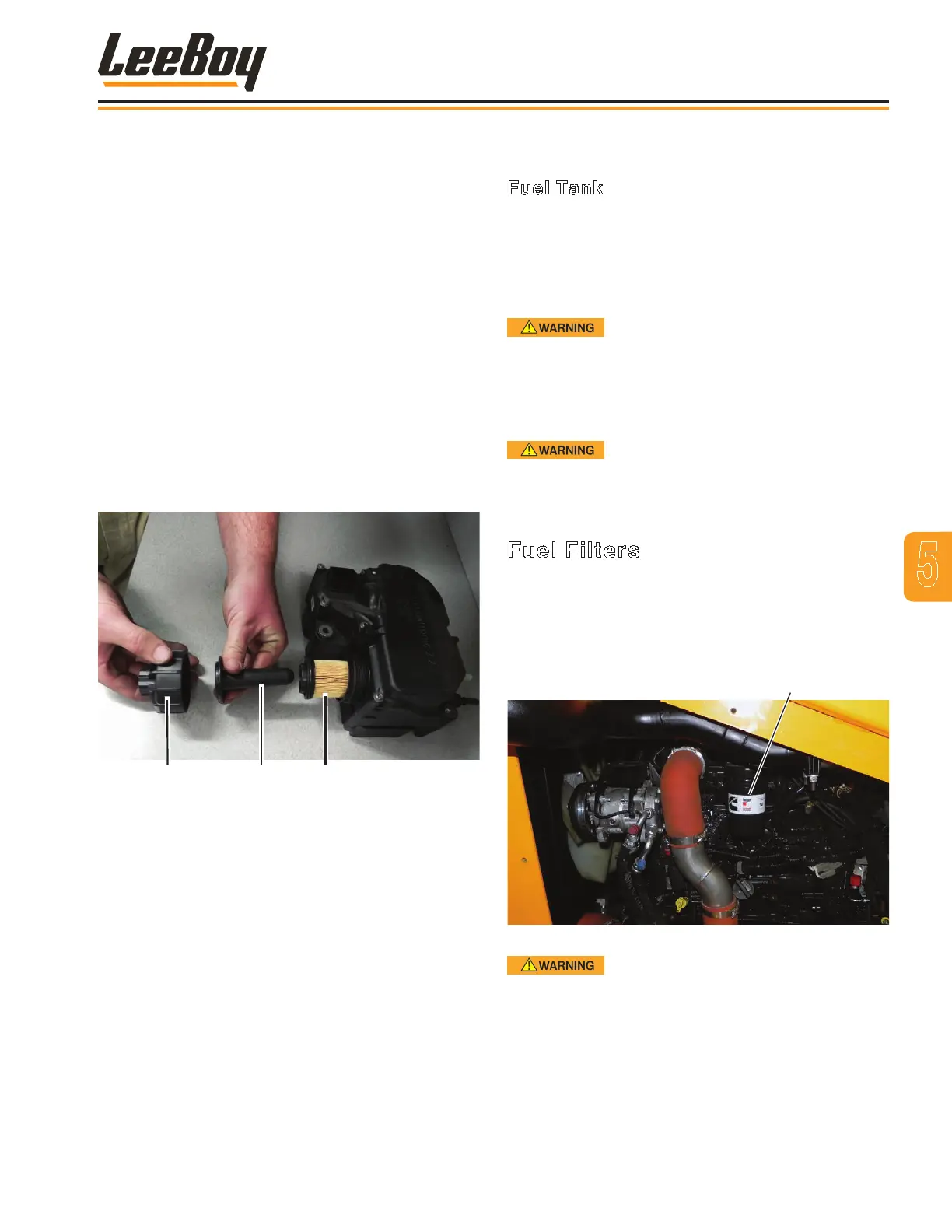

Figure 4-9. DEF Tank Filter
1 - Filter Cap
2 - Filter Equalizing Element
3 - Filter Element
