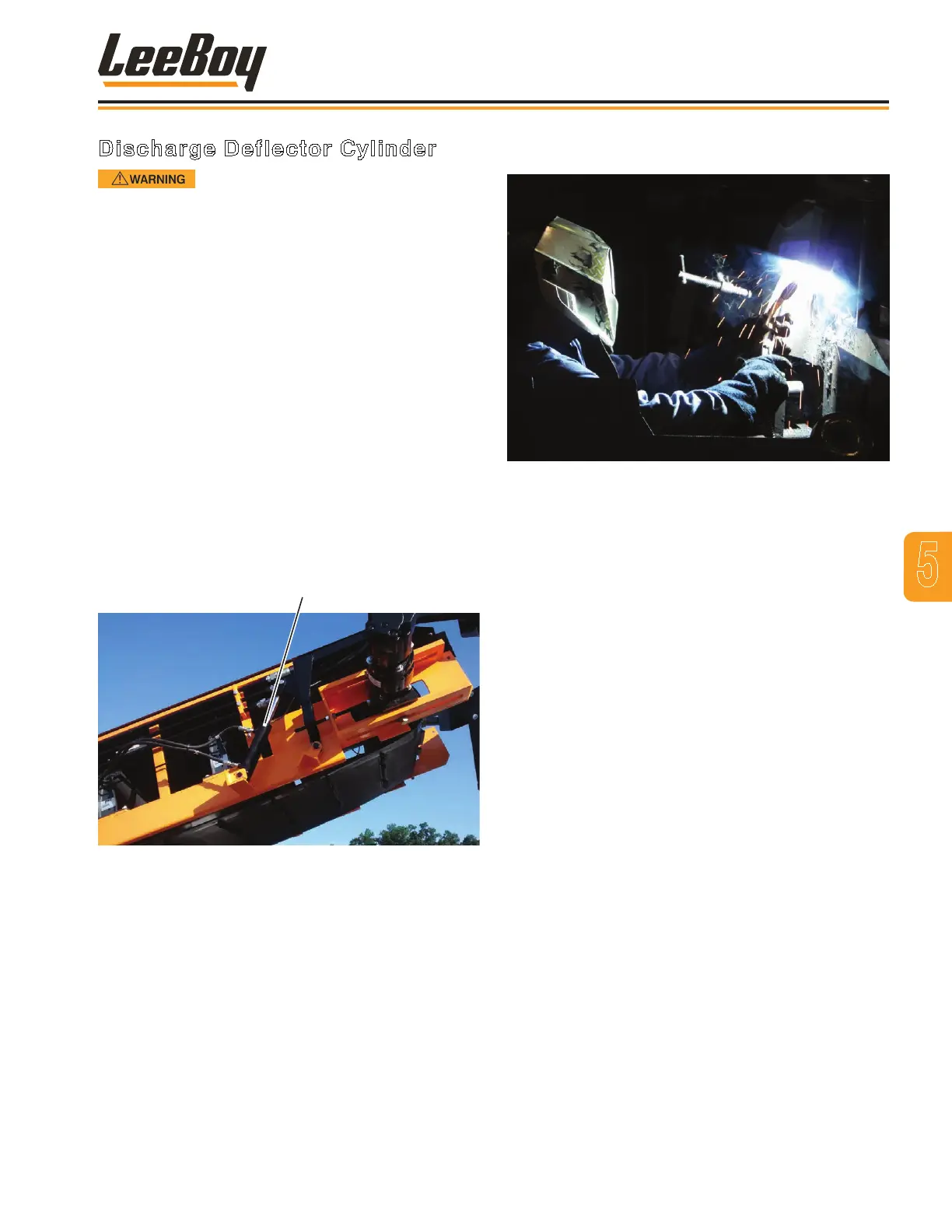

LeeBoy 3000C - Weldment; Discharge Deflector Cylinder

Discharge Deflector Cylinder
Before breaking circuit connections,
ensure power is OFF and the system pressure
has been released. Lower all vertical cylinders,
discharge any accumulators, and block any load that
could move and generate pressure.
NOTE: Plug and cap all lines and ports when
disconnected to prevent dirt from entering
the system.
There is a discharge deector cylinder on each side of
the conveyor.
NOTE: Replace one cylinder at a time so the other
supports the deector.
1. Place a container under the cylinder to catch
hydraulic oil when the lines are disconnected.
2. Disconnect and label the two hoses connected to
cylinder ttings. (Figure 5-29)
3. Remove the two clevis pins and clip pins attaching
the cylinder to the frame and conveyor.
Discharge Deflector Cylinder
Figure 4-29. Deector Cylinder
4. Remove old cylinder from machine and replace with
new cylinder.
5. Reinstall the two clevis pins and clip pins to secure
the cylinder.
6. Connect the two hydraulic hoses.
7. Add hydraulic oil, if needed.
8. Start the engine and operate the cylinder to check
for leaks and for proper operation.
WELDMENT
Figure 4-30. Welding
If the machine has been damaged or metal parts worn
due to extensive use, minor welding may be necessary
for repair. Welding is very dangerous. Only individuals
who are properly trained should weld in a dedicated area
away from others as even looking at ultraviolet light from
the ame can cause serious eye injury.
Welding hazards include toxic fumes, harmful dust,
light radiation, burns, combustion from sparks and the
potential for extensive damage to the eye. There is also
a danger of electric shock. If combustible or ammable
materials are nearby, the heat and sparks produced by
welding can cause res or explosions.
TURN THE BATTERY SWITCH OFF AND DISCONNECT
BATTERY TERMINALS BEFORE WELDING ON THE
MACHINE.
Electrical current can ignite re or cause an explosion,
therefore it is critical to turn off power to the machine. It
is also important to grind off the paint to ensure proper
ground on the area being welded.
DO NOT MAKE MODIFICATIONS TO THE MACHINE.
ONLY weld if needed for repair purposes. Weldment
modications to the machine can void your warranty.
