CONTROL CONSOLES
1
2
3
4
5
6
7

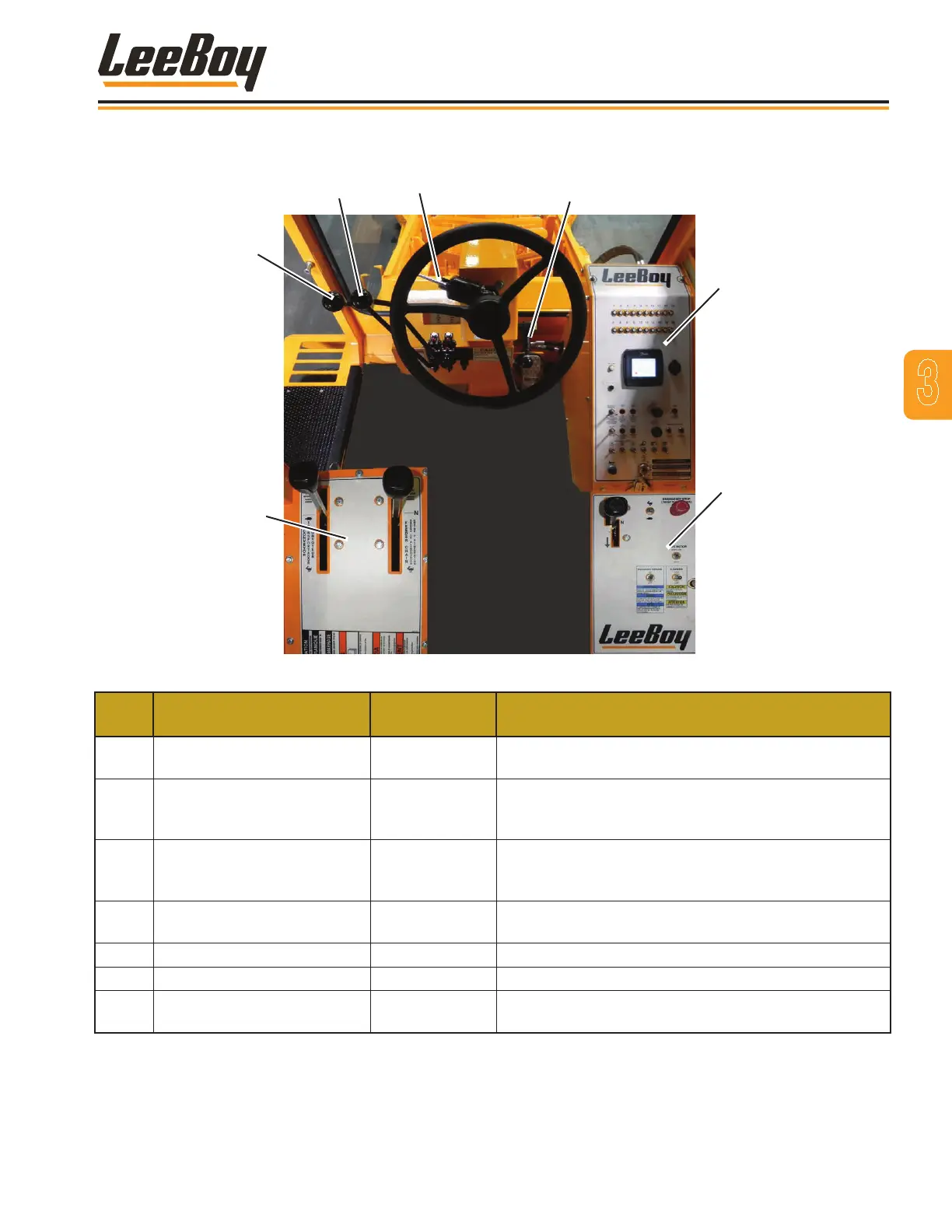

Figure 4-7. Location of Controls
ITEM
NO.
CONTROL NAME TYPE FUNCTION
1
Conveyor Feeder Control
Panel
Lever Contains the feeder and conveyer control levers.
2 Moldboard Lift Control Lever Lever
Adjusts position of moldboard. Pushing lever forward
one notch lowers moldboard. Pushing lever completely
forward places moldboard in the oat position.
3 Conveyor Lift Control Lever Lever
Adjusts position of conveyor. Pushing lever forward one
notch lifts conveyor. Pushing lever completely forward
places conveyor in oat position.
4
Right and Left Turn
Indicator Switch
3-Position,
Lever Switch
Turns on the left or right directional ashers.
5 Tilt Steering Lock Lever Lever Pull to release.
6 Operating Control Panel Gauge Various control gauges.
7 Direction Control Panel Panel
Contains direction control, parking brake, drive motor
control, motor lock, emergency stop and gear shift.
3
Component Location
3000C Force Feeder Loader 3-3
