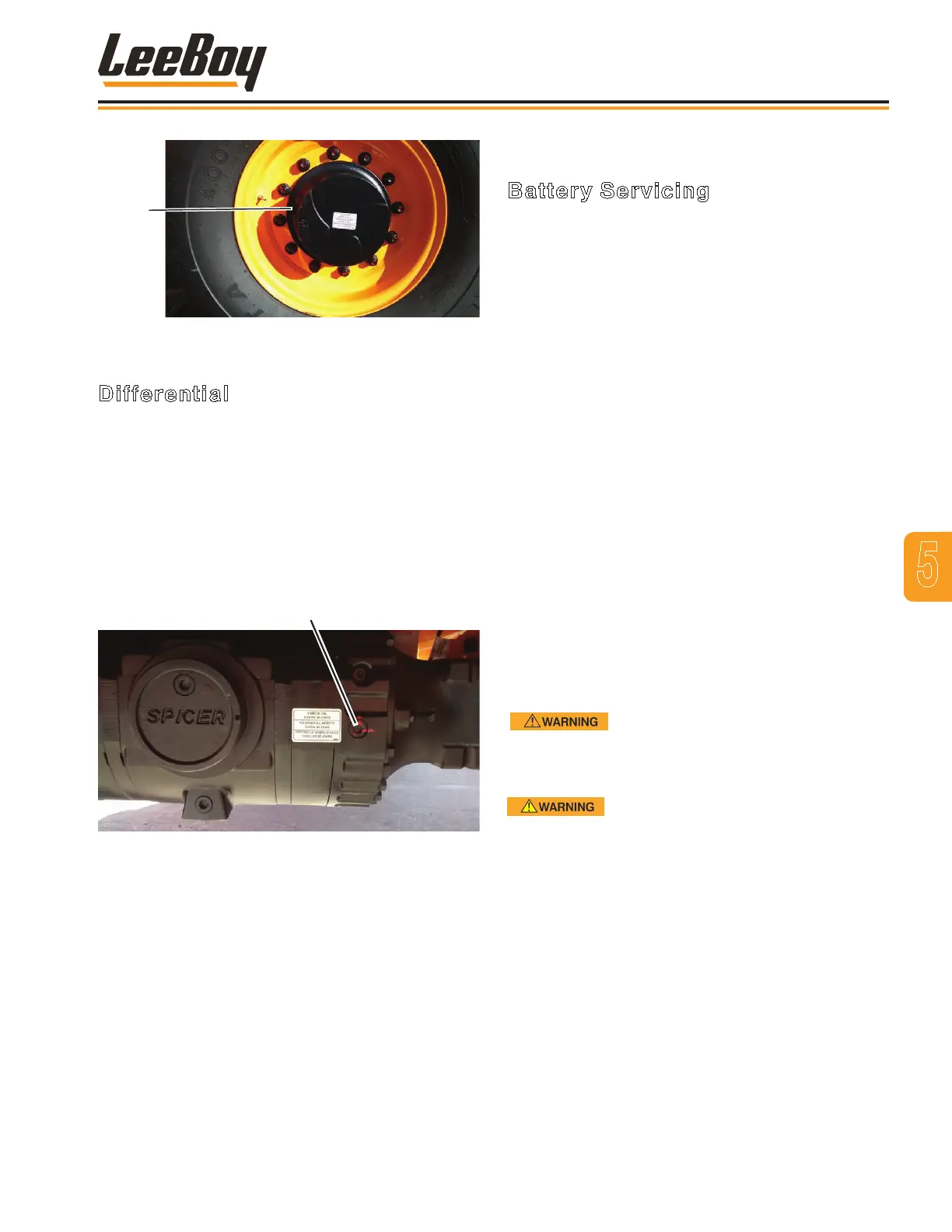

Figure 4-17. Planetary Hub Plug
Differential
The differential plug is located at the back of the rear
axle under the machine. (Figure 5-18)
To check the differential gear oil level:
1. Shut down machine and apply park brake.
2. Unscrew the differential gear oil plug.
3. Oil should be level with bottom of the plug hole.
4. Fill if needed.
Figure 4-18. Differential Fluid Fill Location
ELECTRICAL SYSTEM
Battery Servicing
The loader electrical system is a 12-volt negative ground
system.
NOTE: The electrical system is a negative ground
system. Connect the positive (+) cable to
the positive (+) post of the battery. Connect
the ground cable to the negative (-) post of
the battery. It is advisable to disconnect the
negative (-) cable rst and reconnect it last.
Reversed polarity can damage the electrical
system.
Clean terminals and battery posts thoroughly and check
that battery cable terminals are tight. Dirty or loose
connections can create high electrical resistance and
permit arcing, which will quickly burn and pit terminals
and posts.
Keep the battery clean by washing it off whenever dirt
buildup is excessive. If corrosion is present around
terminal connections, remove them and wash with
ammonia solution or a solution consisting of 1/4 lb. (11 kg)
baking soda added to one quart of warm water. Make
certain the vent caps are tight to prevent solution from
entering the cells. After cleaning, pour clean water over
the battery and surrounding area to wash the solution
away. Check vent cap breather openings to make sure
they are open.
Batteries contain sulfuric acid and
normally produce explosive gases that can cause
serious injury. DO NOT allow ames or sparks to
come near the battery.
When charging or working near a
battery, always shield your face and protect your
eyes. In case of acid contact with skin or eyes,
ush immediately with water for a minimum of 15
minutes and get prompt medical attention. If acid is
swallowed, call a physician immediately.
5
Maintenance
3000C Force Feed Loader 5-17
