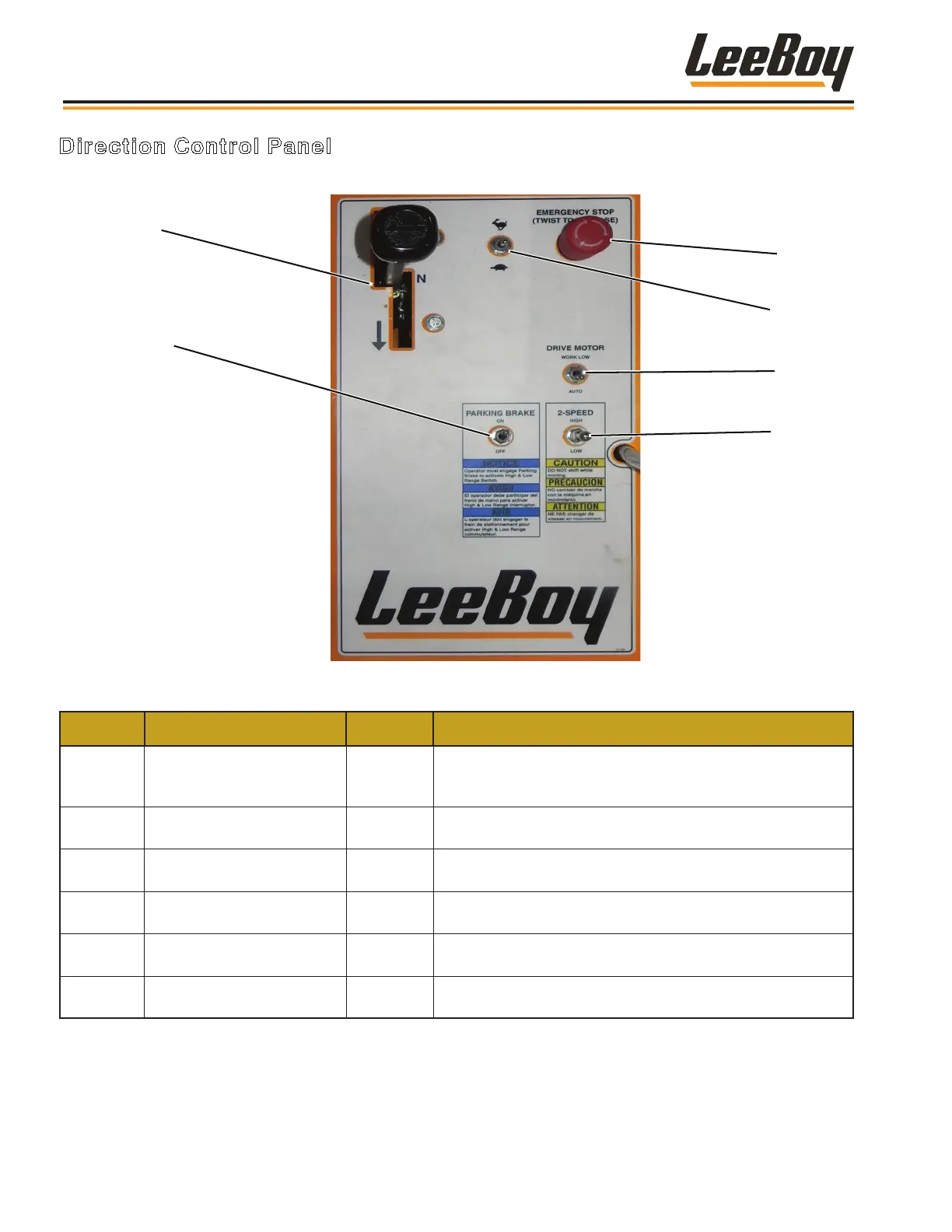

Direction Control Panel
2
1
3
4
5
6
Figure 4-10. Travel Control Panel
ITEM NO. CONTROL NAME TYPE FUNCTION
1 Directional Lever Lever
Sets direction of travel. Center position is NEUTRAL. Speed
increases as the lever is moved further forward or back-
ward.
2 Parking Brake Switch
Turns parking brake on and off. Machine must be stopped
and parking brake applied.
3 Emergency Stop
Push/Pull/
Turn
Press to deactivate the machine. Twist clockwise to release.
Must release to allow function
4 Throttle Switch
Controls engine RPMs. Move forward to increase; back-
ward to decrease RPMs.
5 Drive Motor Switch Controls motor torque. Can be used while in motion.
6 2-Speed Gear Shift Switch Forward position is high gear; back position is low gear..
Component Location
3000C Force Feeder Loader3-6
