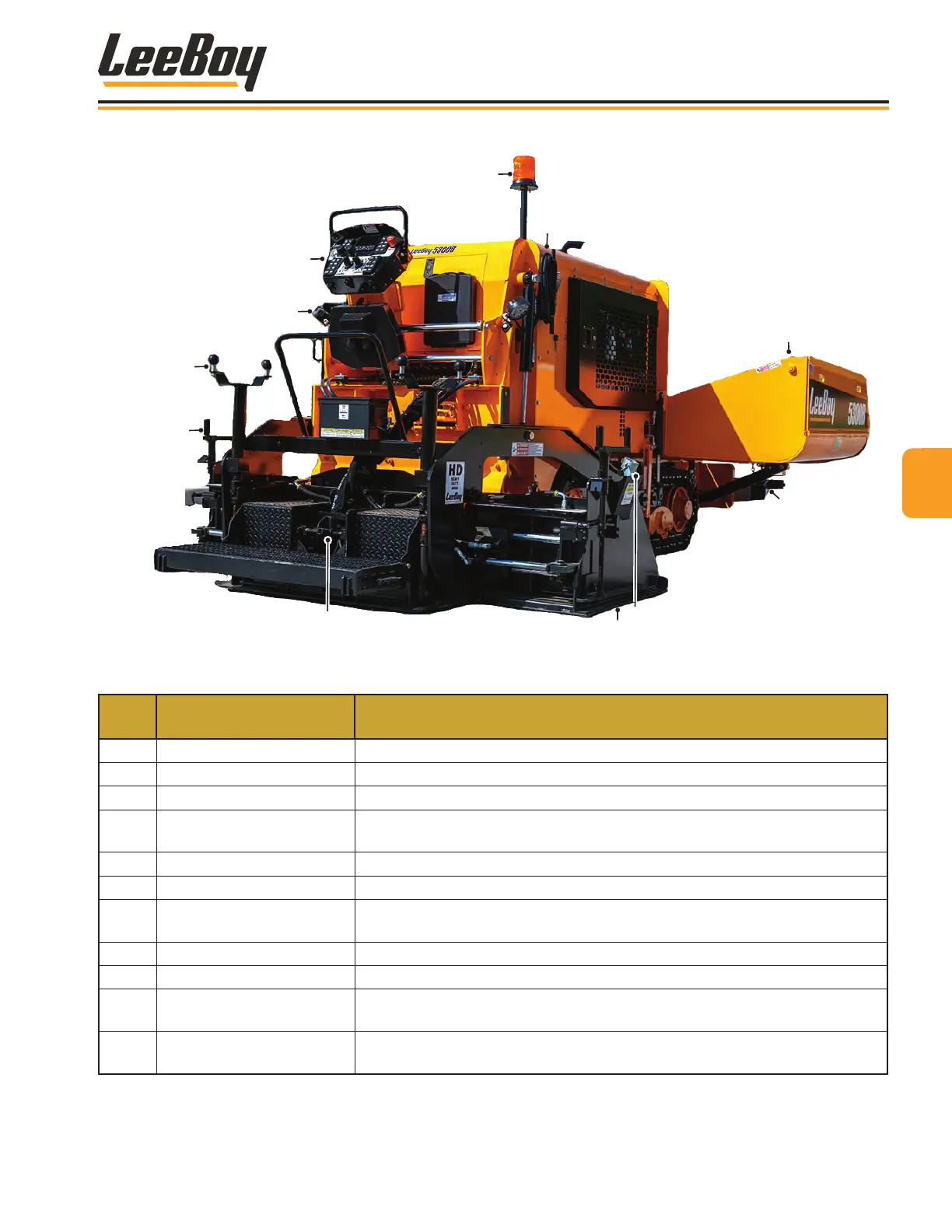

Figure 3-1. Operation Panels and Controls
ITEM
NO.
CONTROL NAME FUNCTION
1 End Gate Depth Screw Controls the depth of the asphalt (one on each side) at the end gate.
2 Flight Screw Controls the depth of the asphalt (one on each side) at the screed.
3 Work Light Used for illuminate the path of the paver.
4 Control Panel
Contains joysticks for speed and direction of travel, paver controls and the
DM430 digital display unit.
5 Beacon Light Used to alert surrounding vehicles and pedestrians.
6 Spray Down Hose Used to spray the paver clean.
7 Hopper
Receives and holds paving material load as conveyors move material to back
of the paver and screed.
8 Crown and Valley Adjusts for positive crown or negative valley in wear plate.
9 End Gate Creates a clean edge in the paved base. Has vertical and angle adjustments.
10 Sonic Sensor Bracket
Holds the optional Sonic Conveyor/Auger Sensor in position. Connected to
the Sonic Auger Adjustment.
11 Push Rollers
These rollers pushes the material delivery truck along as it delivers asphalt
into the paver hopper.
MACHINE OVERVIEW
33
Component Location
LeeBoy Model 5300B Compact Paver 3-5
