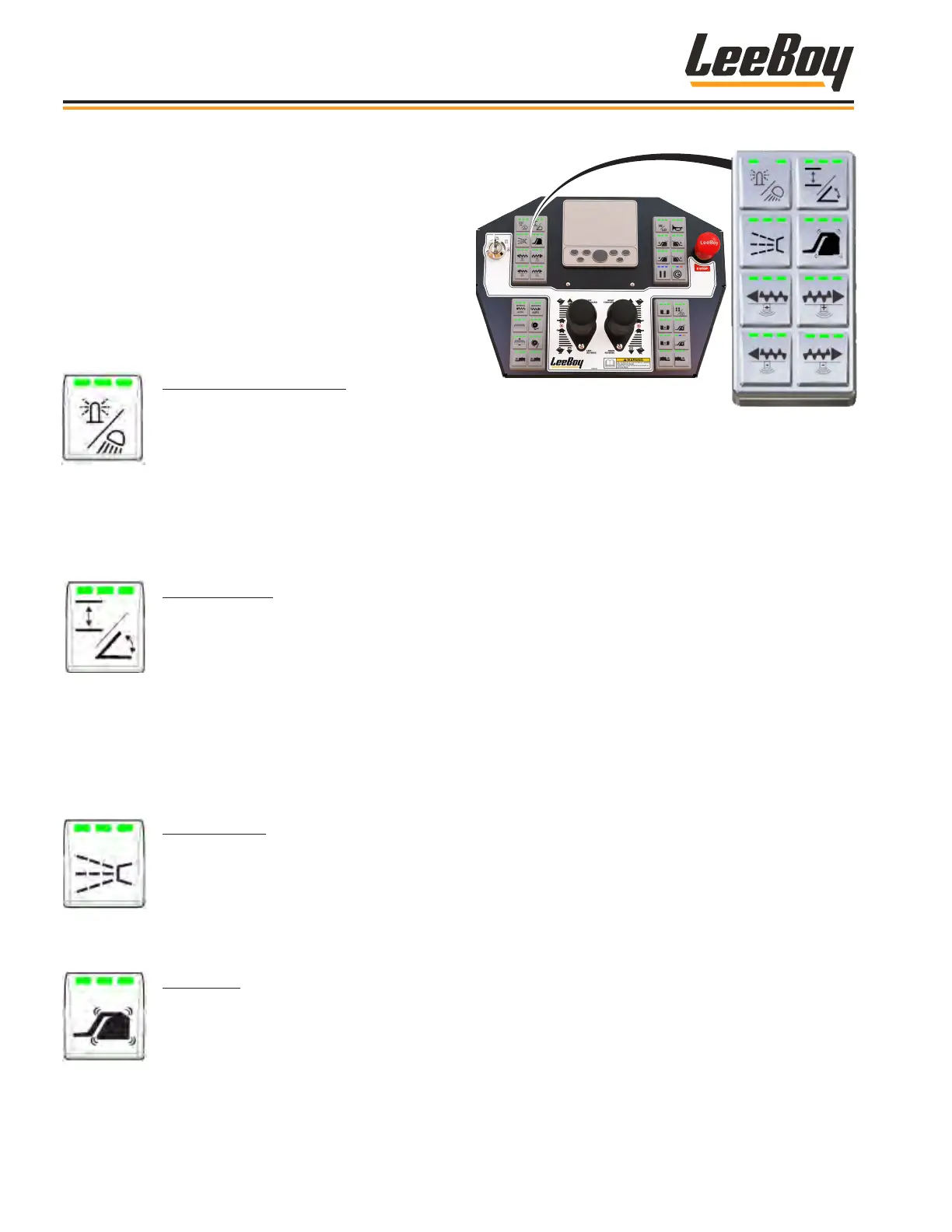

Upper Left KeypadUpper Left Keypad
The upper left keypad contains push buttons
for beacon/work lights, grade/slope, spray
down/vibrator, and pile height functions
(increase/decrease on left and right sides).
LED lights illuminate to indicate the function
status as described below:
WORK/BEACON LIGHTS
The default for this button is OFF.
• Press the button once to activate the beacon light (the left LED light illuminates green).
• Press the button again to activate the work lights (the center LED light illuminates green).
• Press the button a third time to activate the beacon and work lights (all three LED lights illuminate
green).
• Pressing the button a fourth time turns all lights OFF.
GRADE/SLOPE
The left and right tow points can be controlled automatically using the TopCon sonic automatic grade/
slope control system (if equipped with this option), or can be controlled manually using the keypad
buttons.
• The default setting is MANUAL. The left LED light illuminates green in manual mode.
• Pressing the Grade/Slope button changes to AUTO mode. The right LED light illuminates green.
The TopCon sonic control system must be connected to operate in AUTO mode.
NOTE: The Grade/Slope function is disabled when joysticks are in neutral. The center light will
illuminate YELLOW.
SPRAY DOWN
The spray down function can be turned on and off whether the console is active or inactive.
• Press the button once to turn on the spray down system. All LED lights illuminate when the spray
down system is on.
• Press the button again to turn off the spray down system.
VIBRATOR
The vibrator function can be turned on and off whether the console is active or inactive.
• Press the button once to turn on the vibrator. All LED lights illuminate green.
• Press the button again to turn off the vibrator.
NOTE: The vibrator only functions when traveling forward and will automatically turn off if paver
is put into reverse.
Operation
LeeBoy Model 5300B Compact Paver4-6
