Upper Right KeypadUpper Right Keypad

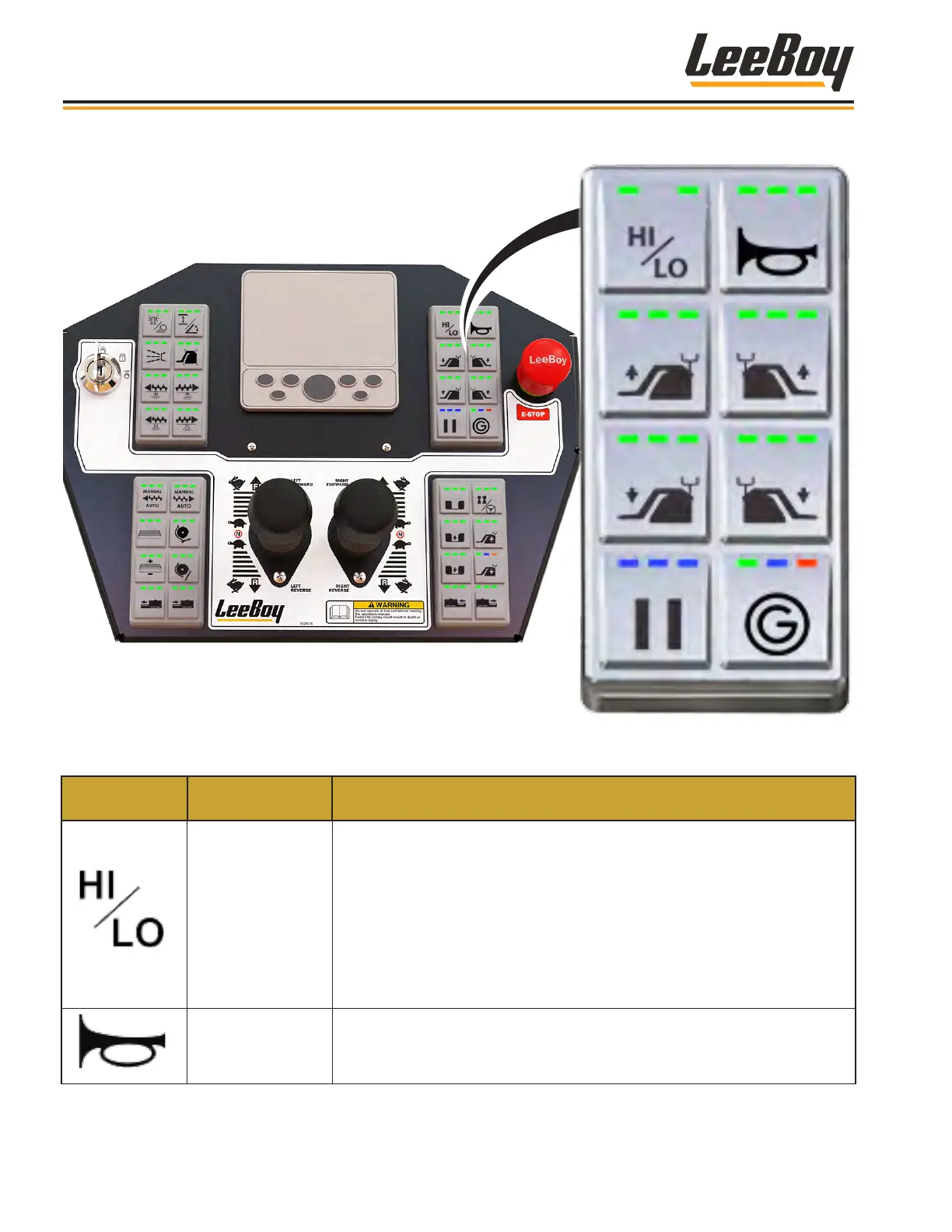

Table 3-4. Control Panel - Upper Right Keypad
KEYPAD
SYMBOL
CONTROL NAME FUNCTION
High/Low Speed
This button controls the two speed motor shift.
• Low speed is the default. The right LED light illuminates green at low
speed.
• Press the button to shift to high gear. The left LED light illuminates green
at high speed.
NOTE: Pave only in LOW speed. NEVER pave in high speed.
NOTE: The paver will automatically move into low gear when machine
operation is paused.
Horn
Pressing this button sounds the horn whether the console is active or not.
All three LED lights will illuminate GREEN when engaged.
Component Location
