Regen Level 5: If the DPF level reaches Level 5,
a red message alert banner appears on the engine
and pave screens notifying operator the DPF must be
replaced. (Figure 4-38) The DPF must be removed
and cleaned by a qualied cleaning facility, and the ECU
must be reset by a qualied engine or OEM service
technician. The engine will derate to idle with no torque
available. IMMEDIATELY contact your authorized
dealer.

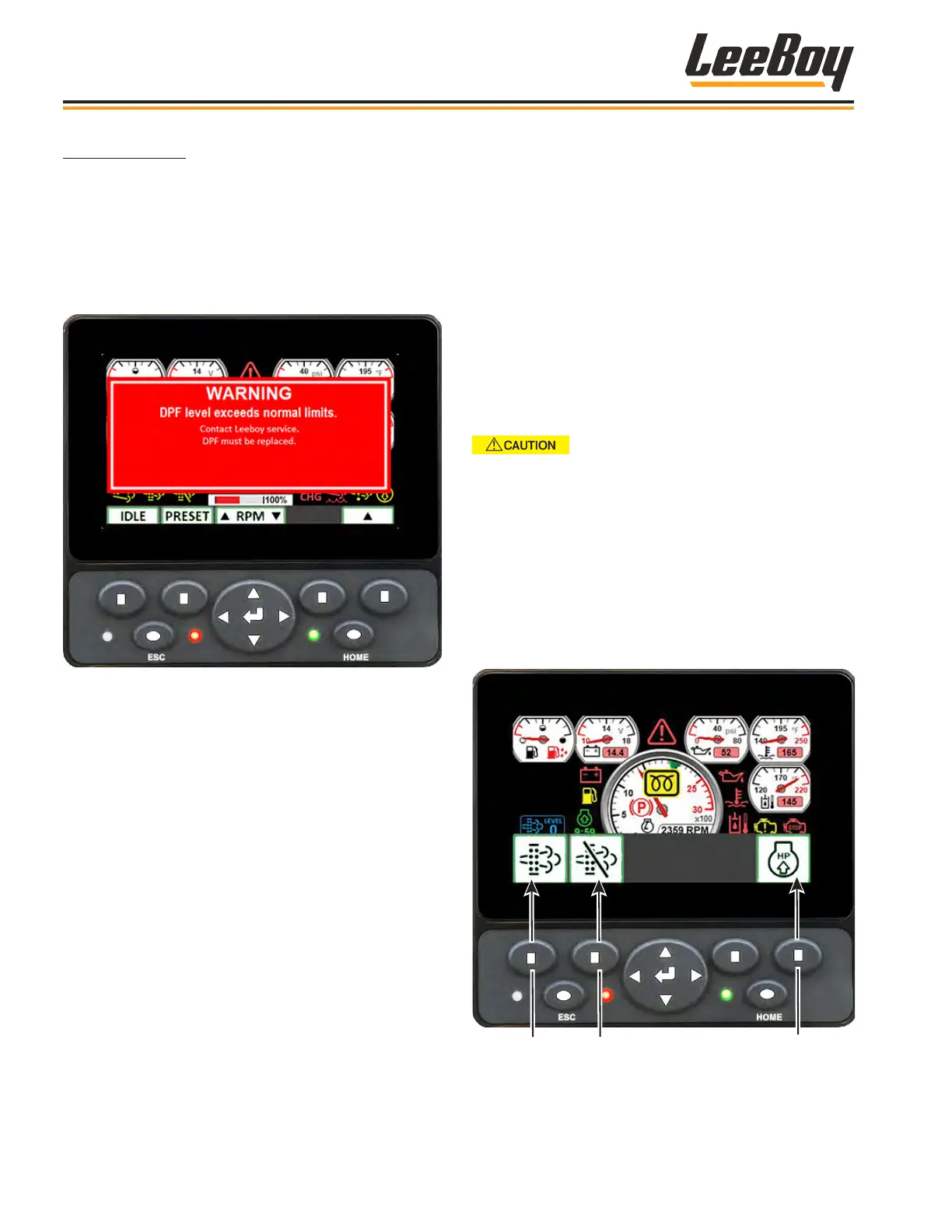

Figure 4-38. DPF Must Be Replaced Alert
Parked RegenerationParked Regeneration
If the DPF is at Level 2 or 3, and no engine faults
are present, perform parked regeneration using the
following procedure:
1. Park the paver in an open area away from people,
equipment, trees/shrubbery, debris, and combusti-
ble materials as exhaust temperatures will increase
considerably during regeneration.
2. Place the paver in NEUTRAL and engage the park
brake.
• Ensure the coolant temperature is the operating
range of 155° to 160° F.
3. Set the engine to low idle.
DO NOT ATTEMPT TO OPERATE
THE UNIT, CHANGE ENGINE RPM OR MOVE FROM
PARK/NEUTRAL WHILE REGEN IS OCCURRING. This
will abort the Regeneration process and require you
to start the process over.
4. From the engine screen, press Button #4 to access
DPF commands. A pop-up banner appears with re-
generation selections corresponding to the buttons.
(Figure 4-39)
NOTE: If the icon background is gray, the function is
unavailable (or unneeded) at the moment.
Button
#1
Button
#2
Button
#4
Figure 4-39. Engine Screen Pop-Up Banner
Operation
