LeeBoy 5300B - Under Auger Material Cut-Off; Augers and Sonic Auger Sensor

Auger
Under Auger
Material Cut-O

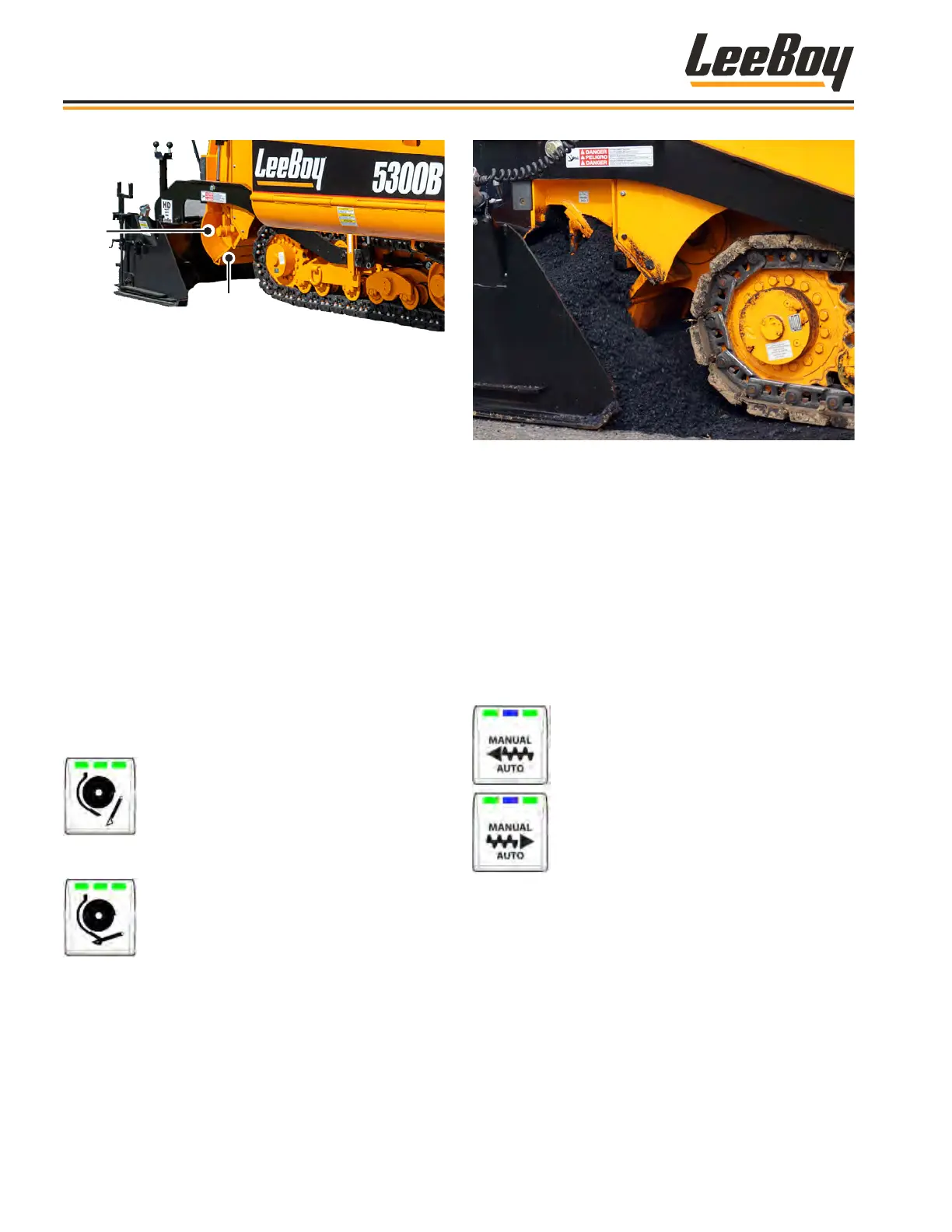

Figure 4-45. Under Auger Material Cut-Off
Under Auger Material Cut-Off Under Auger Material Cut-Off
The asphalt material moves from the auger to the Under
Auger Material Cut-Off, which control asphalt ow to the
screed and extensions. (Figure 4-45) Cut-off can open
to increase asphalt ow, or close to decrease ow when
making narrow passes at the beginning and ending of
each pass or pull. Proper use of the cut-off prevents
spillage and minimizes clean-up.
NOTE: To prevent excessive handwork, turn off the
conveyors and close the cut-off about three feet from
the end of a pull to prevent excessive handwork.
NOTE: If the paver is put into reverse, the cut-off will
automatically close
The Under Auger Material Cut-Off can be operated via
the main control panel and the corresponding active
side on the screed control keypad.
Press and hold the Cut-Off Open button on the lower left
keypad to open the Under Auger Material
Cut-Off.
Press and hold the Cut-Off Close button
on the lower left keypad to close the
Under Auger Material Cut-off.
Augers and Sonic Auger SensorAugers and Sonic Auger Sensor
The independent augers, one on each side of the paver,
push material through the under auger material cut-off
to the screed. The augers can be operated in manual
(default) or AUTO (automatic) mode.
NOTE: The augers are not needed when paving under
four-feet wide.
• You must connect the sonic auger sensor system
to operate in AUTO mode.
Selecting left or right manual/AUTO on the
control pane lower left keypad turns on
the auger. Arrow direction on the keypad
symbol indicates left or right auger.
• Press corresponding left or right
button once for manual mode.
• Press and hold button for AUTO
mode after connecting the sonic
auger system. The center blue light
illuminates when material reaches the
set material height.
Operation
LeeBoy Model 5300B Compact Paver4-38
