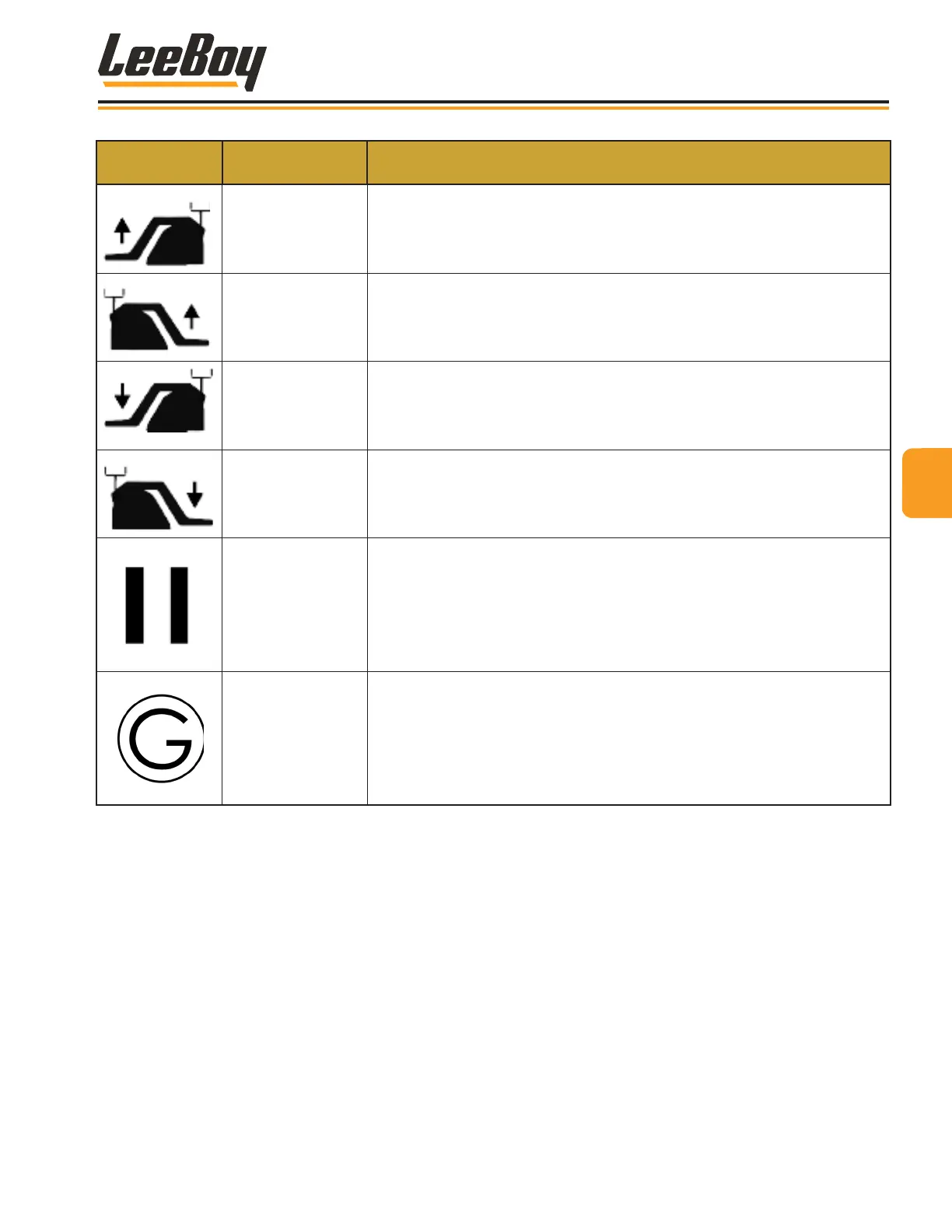

KEYPAD
SYMBOL
CONTROL NAME FUNCTION
LEFT Tow UP
Sets the asphalt mat thicker and controls the hydraulic tow cylinders. Press
and hold button to raise LEFT tow. All three LED lights illuminate green
while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
RIGHT Tow UP
Sets the asphalt mat thicker and controls the hydraulic tow cylinders. Press
and hold button to raise RIGHT tow. All three LED lights illuminate green
while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
LEFT Tow DOWN
Sets the asphalt mat thinner and controls the hydraulic tow cylinders.
Press and hold button to lower LEFT tow. All three LED lights illuminate
green while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
RIGHT Tow DOWN
Sets the asphalt mat thinner and controls the hydraulic tow cylinders.
Press and hold button to lower RIGHT tow. All three LED lights illuminate
green while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
Pause
Pauses propel (travel), conveyors and augers functions. Press the button
once to pause these functions. The three LED lights illuminate blue.
• Pressing the button again resumes these functions.
NOTE: The engine idle will remain at high but automatically go into
low idle if paused for a preset period of time (unless the generator is
enabled.)
Generator
The generator can be activated in AUTO or MANUAL mode. The default is
AUTO. The generator can be turned on whether the console is active or
not.
• Press the button once for AUTO operation (the temperature setting
controls operation). The left LED light illuminates green.
• Press the button again to turn off (the right LED light illuminates red).
33
Component Location
LeeBoy Model 5300B Compact Paver 3-13
