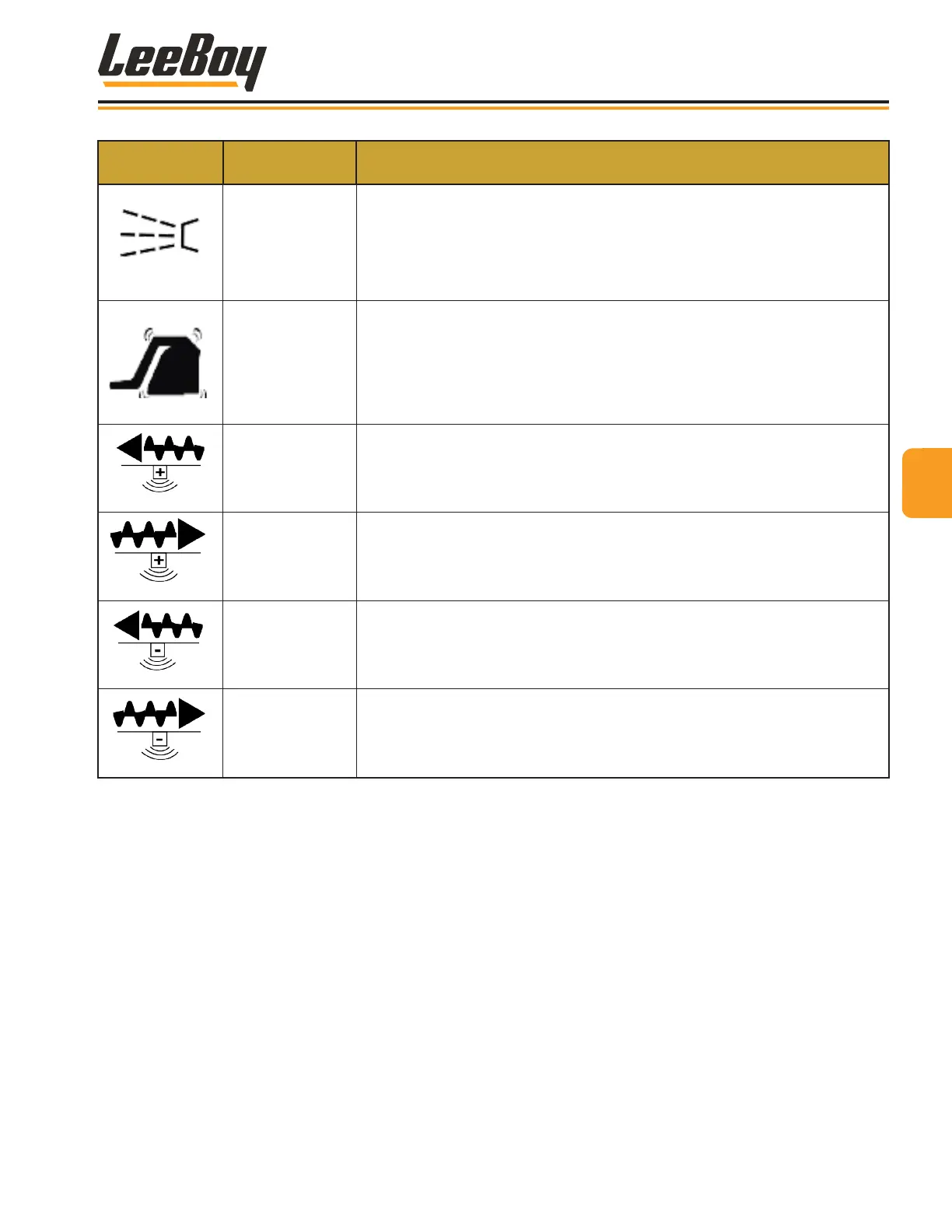

KEYPAD
SYMBOL
CONTROL
NAME
FUNCTION
Spray Down
Engages the spray down system for spraying release agent to clean,
lubricate and prevent asphalt from hardening on machine surfaces. This
function can be also used if control panel is not active.
• Press the button once to turn ON (all three LED lights illuminate green).
• Press the button again to turn OFF.
Vibrator
The screed vibrator helps compact material while paving.
• Press the button once to turn ON. All three LED lights illuminate green.
• Press the button again to turn OFF.
NOTE: The vibrator will only operator when moving forward, and
automatically turns OFF if paver is placed in reverse or neutral.
Pile Height/Auger
Speed Increase
LEFT
• Use this button to increase the auger speed on the LEFT side when auger
is set to MANUAL mode.
• Use this button to increase pile height on the LEFT side when auger is set
to AUTO mode.
Pile Height/Auger
Speed Increase
RIGHT
• Use this button to increase the auger speed on the RIGHT side when
auger is set to MANUAL mode.
• Use this button to increase pile height on the RIGHT side when auger is set
to AUTO mode.
Pile Height/Auger
Speed Decrease
LEFT
• Use this button to decrease the auger speed on the LEFT side when auger
is set to MANUAL mode.
• Use this button to decrease pile height on the LEFT side when auger is set
to AUTO mode.
Pile Height/Auger
Speed Decrease
RIGHT
• Use this button to decrease the auger speed on the RIGHT side when
auger is set to MANUAL mode.
• Use this button to decrease pile height on the RIGHT side when auger is
set to AUTO mode.
