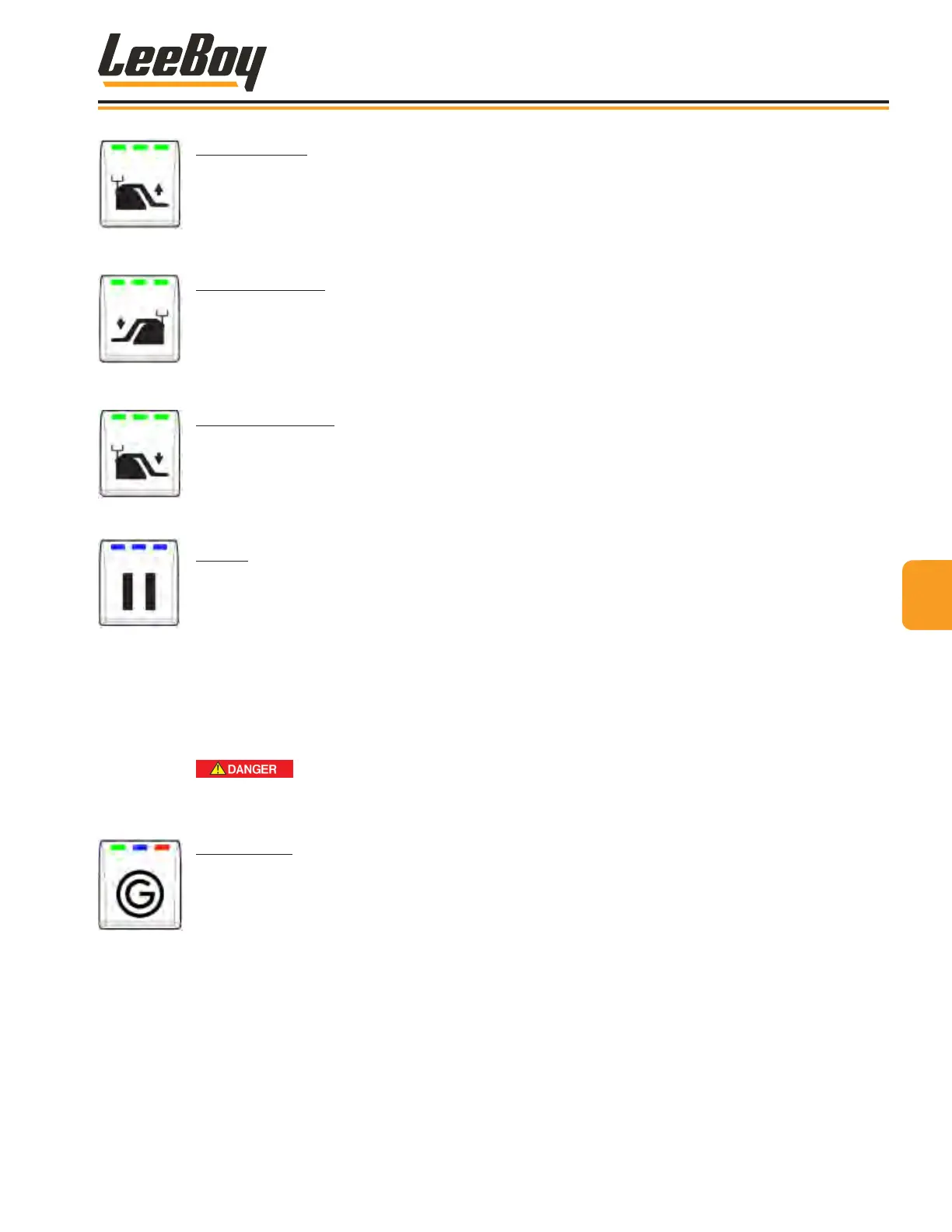

RIGHT TOW UP
Sets the asphalt mat thicker and controls the hydraulic tow cylinders.
• Press and hold button to raise RIGHT tow. All three LED lights illuminate green while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
LEFT TOW DOWN
Sets the asphalt mat thinner and controls the hydraulic tow cylinders.
• Press and hold button to lower LEFT tow. All three LED lights illuminate green while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
RIGHT TOW DOWN
Sets the asphalt mat thinner and controls the hydraulic tow cylinders.
• Press and hold button to lower RIGHT tow. All three LED lights illuminate green while engaged.
NOTE: Does not function when the grade/slope control is set to AUTO.
PAUSE
When paused, the propel, augers, and conveyors will slow to a stop. All three LED lights illuminate blue
when paused.
• Press the button once to pause operation. Press the button again to resume.
• If the screed temperature is above the set point, the engine will auto idle after the normal delay
time.
• If the generator needs to run, the engine RPM will increase as necessary while paused.
NOTE: The engine idle will remain at high but automatically go into low idle if paused for a
preset period of time (unless the generator is enabled.)
The Pause button should NEVER be used as though it’s a park brake--it is not. DO
NOT leave the operator platform when paused!
GENERATOR
The generator can be activated in AUTO or MANUAL mode. The default is AUTO. The generator can
be turned on whether the console is active or not.
• Press the button once for AUTO operation (the temperature setting controls operation). The left
LED light illuminates green.
• Press the button again to turn off (the right LED light illuminates red).
NOTE: In auto mode, if the temperature is above the set point, the center LED is solid blue. If is
below the set point, the LED will ash.
• Press the button again to turn off (the right LED light illuminates red).
• In manual mode the center LED never illuminates.
44
Operation
LeeBoy Model 5300B Compact Paver 4-11
