LeeBoy 5300B - Page 67

1
2
3
4
5
6
7

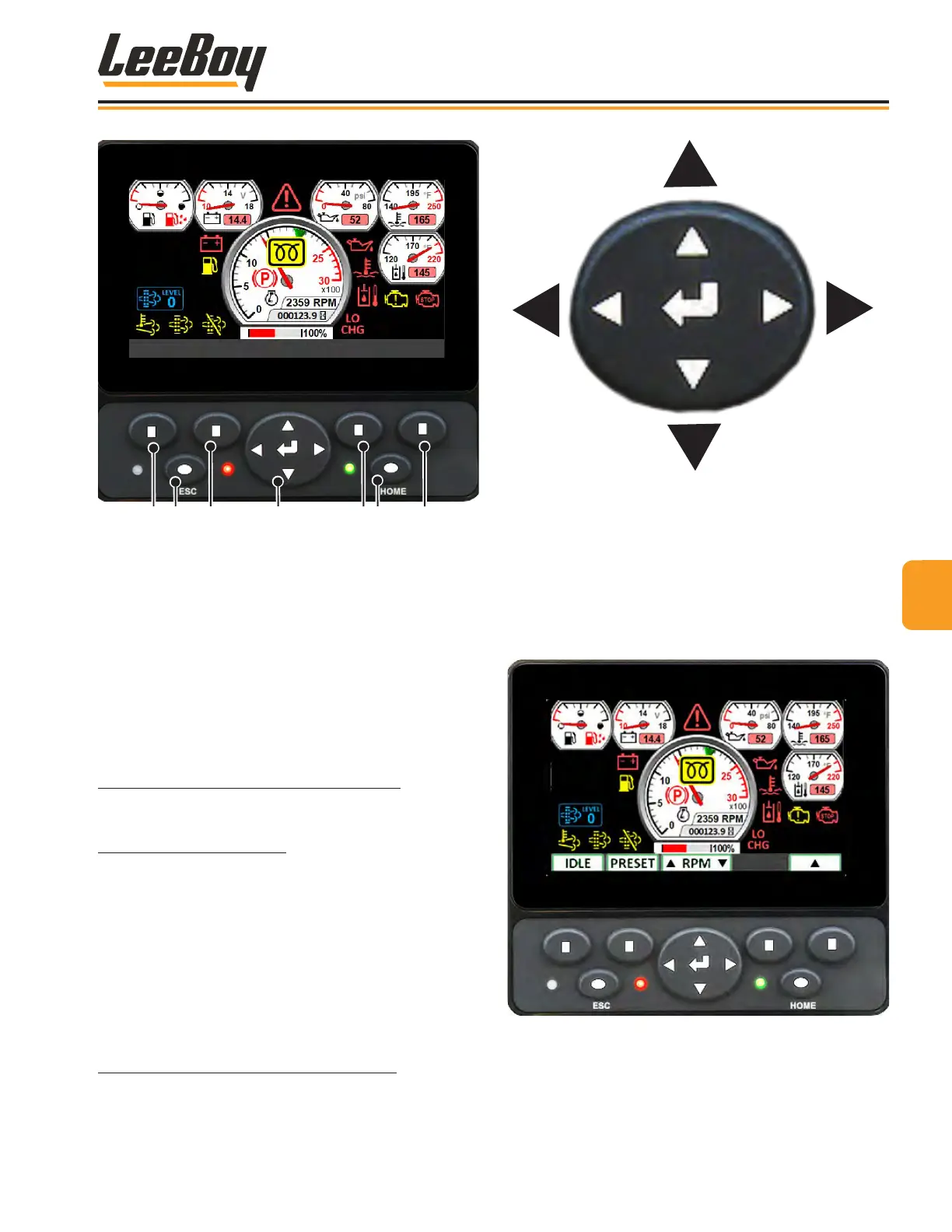

Figure 4-2. DM 430 Button Controls
1 - Button #1
2 - ESC (Engine / Engine Diagnostics
Screens)
3 - Button #2
4 - Screen Navigation
5 - Button #3
6 - Home (Pave / Pressures Screens)
7 - Button #4
ESC (Engine / Engine Diagnostics) Button: Pressing
this button toggles between engine and engine
diagnostics. (Pages 4-18 and 4-19)
Screen Navigation Button: Pressing this button
navigates as shown in Figure 4-3.
• Pressing left or right navigates between all other
screens (settings, motor direction, engine faults,
and system faults).
• Pressing up or down is used on a particular
screen scrolls through screen information (where
prompted).
• The center of the button ( ) is used to select an
item (where prompted).
Home (Pave / Pressures Screens) Button: Pressing
this button toggles between the pave and pressure
gauge screens. (Pages 4-22 to 4-26)
Navigate
UP
Navigate
LEFT
Navigate
RIGHT
Navigate
DOWN

Select
Figure 4-3. Screen Navigation Button
Engine ScreenEngine Screen
The Engine screen is the default screen and displays
various gauges. It also displays status information and
icons (fuel level, DPF level, voltage, oil pressure, coolant
temperature, hydraulic temperature, etc). (Figure 4-4)
Figure 4-4. Engine Screen
44
Operation
LeeBoy Model 5300B Compact Paver 4-15
