LeeBoy 8510b - Page 64

6-6 LeeBoy Model 8510B Conveyor Paver
Operation
1
2
3
4

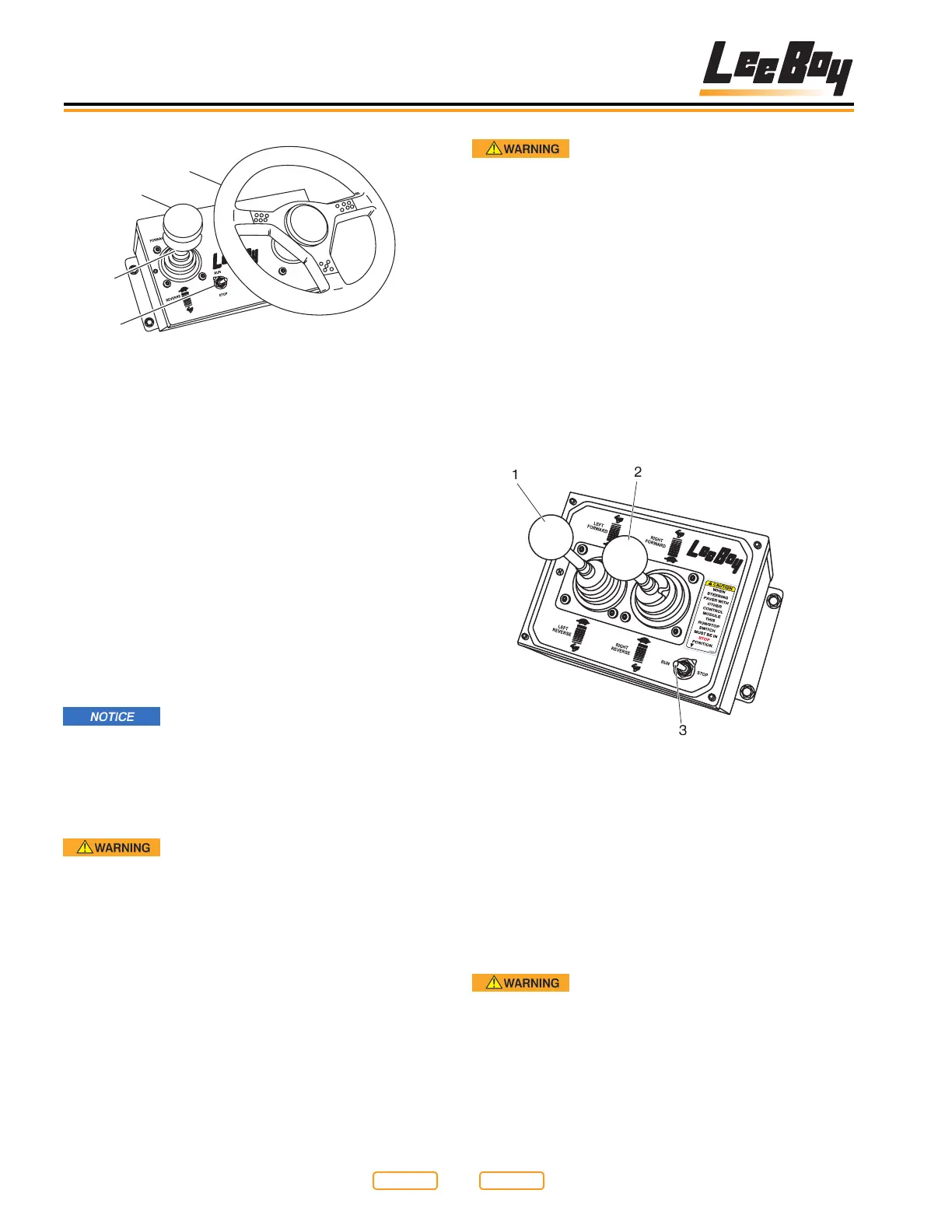

Speed And Steering Control Box Option
Figure 6-1
1 - Joystick Forward/Reverse
2 - Steering Wheel
3 - Neutral Lock
4 - RUN/STOP Switch
2. To drive paver forward lift up on the neutral lock
(Figure 6-1,3) on joystick (Figure 6-1,1) and push
forward to reach desired speed. To move in reverse
pull the joystick backward to reach desired speed.
3. Place joystick in neutral to stop paver.
4. To steer the unit, turn the steering wheel (Figure
6-1,2) in the travel direction desired. The further the
wheel is turned, the more the paver turns. Slow and
easy adjustments are required.
Turning the wheel too hard can
damage the control.
NOTE: Turning all the way to the left or right will allow
you counter rotate. Always bring paver to a
complete stop, before counter rotating machine.
Sudden stops and turns can cause injury.
Always bring paver to a stop before
counter rotating machine. Sudden stops and turns
can cause injury.
5. The RUN/STOP toggle switch (Figure 6-1,4) on
steering box will stop paver when set to the STOP
position (Figure 5-3).
Dual Joystick Option
To drive the paver, push both joysticks (Figure 6-2,1,2)
forward slowly to reach the desired speed. The more
you move the joysticks the faster the travel speed.
1. After the paver has been started and the engine is
warmed up, paver movements may be made.
Before starting forward with paver
make certain that no one is in front of the paver.
2. To drive paver forward tilt both joysticks (Figure
6-2,1,2) forward to reach desired speed. To move
in reverse pull the joysticks backward to reach
desired speed.
3. Place joysticks in neutral to stop paver.
4. To steer the unit to the left, push the right joystick
(Figure 6-2,1) farther forward than the left joystick.
The farther the joystick is pushed, the more the
paver turns. Slow and easy adjustments are
required.
5. The RUN/STOP toggle switch (Figure 6-1,4) on
steering box will stop paver when set to the STOP
position (Figure 5-3).
Speed And Steering Control Box Option
Figure 6-2
1 - Joystick Left Forward/Reverse
2 - Joystick Right Forward/Reverse
3 - RUN/STOP Switch
6. To steer the unit to the right, push the left joystick
(Figure 6-2,2) farther forward than the right
joystick. The farther the joystick is pushed, the more
the paver turns. Sudden stops or turns may cause
injury.
Rapid paver deceleration will occur
when E-STOP button or RUN/STOP switch is
engaged when traveling at high speeds. Operators
may be thrown from the paver causing personal
injury.
