5-10 LeeBoy 8520C Conveyor Paver
Maintenance
Lubrication service should only
be done in a designated area where the oil and
chemicals are contained. These by-products should
be cleaned up and discarded in accordance with
environmental regulations.
Lubrication
Proper lubrication is extremely important and neces-
sary to maintain the paver and its components at top
efciency. Lubrication reduces wear on moving parts,
seals and protects components, absorbs shock, mini-
mizes corrosion and reduces operating temperatures.

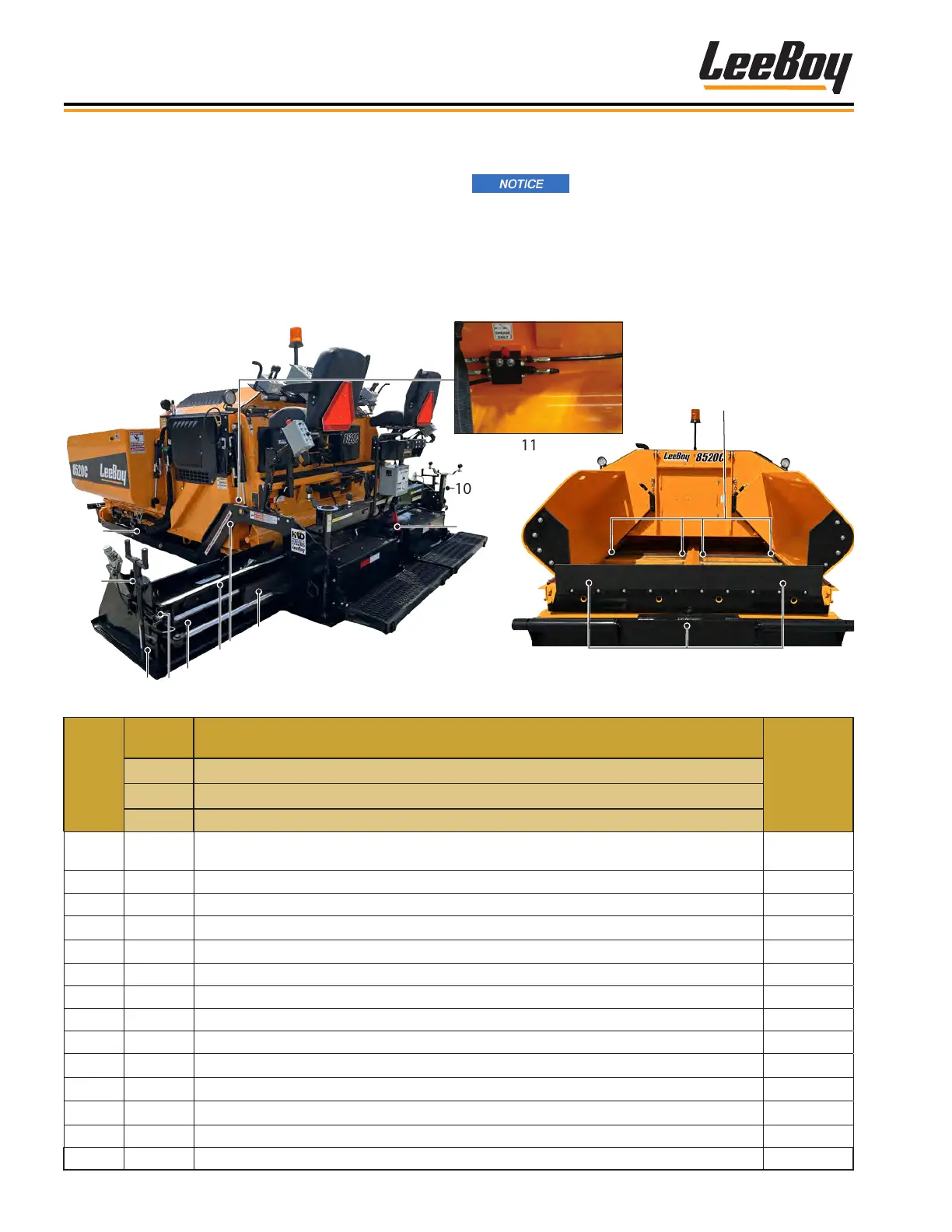

Lubrication Points ChartLubrication Points Chart
10
11
12
13
1
4
5
7
8
9
6
3
2
Table 5-2. Lubrication Points Chart
ITEM
NO.
TYPE
LUBE
DESCRIPTION AND LOCATION
INTERVAL
A Grease With Shell Avania EP Grease 2 or Equivalent
B Spray with Release or Chain Lube Agent
C Spray with Copper-Based Anti-Seize Agent
1 B
Spray tracks between track poly-pads daily for efcient operation. (DO NOT lubricate if
equipped with optional rubber tracks.)
Monthly
2 A Depth screw (both sides). Grease rst in locked position, unlock, and turn 180° to grease. Weekly
3 A screed pivot (both sides). Weekly
4
A
Tilt screws (both sides) Weekly
5
A
Conveyor pivot (under conveyor deck) on front of screed (both sides). Monthly
5 A All screws and bearings on screed extensions (both sides). Weekly
6 A Flange bearing on the AOA (Angle-of-Attack) adjusters on extensions (both sides). Weekly
7 A Conveyor pivot (under conveyor deck) on front of screed (both sides). Weekly
8 C Screed extension slide bars (both sides). Weekly
9 A Screed crown on chain. Weekly
10 A U-joints (both sides). Weekly
11 A Augers (one centralized grease point lubricates auger components). Daily
12 B Conveyor chains (one on each side of each conveyor). Daily
13 B Spray all parts of paver that come into contact with asphalt. Daily
