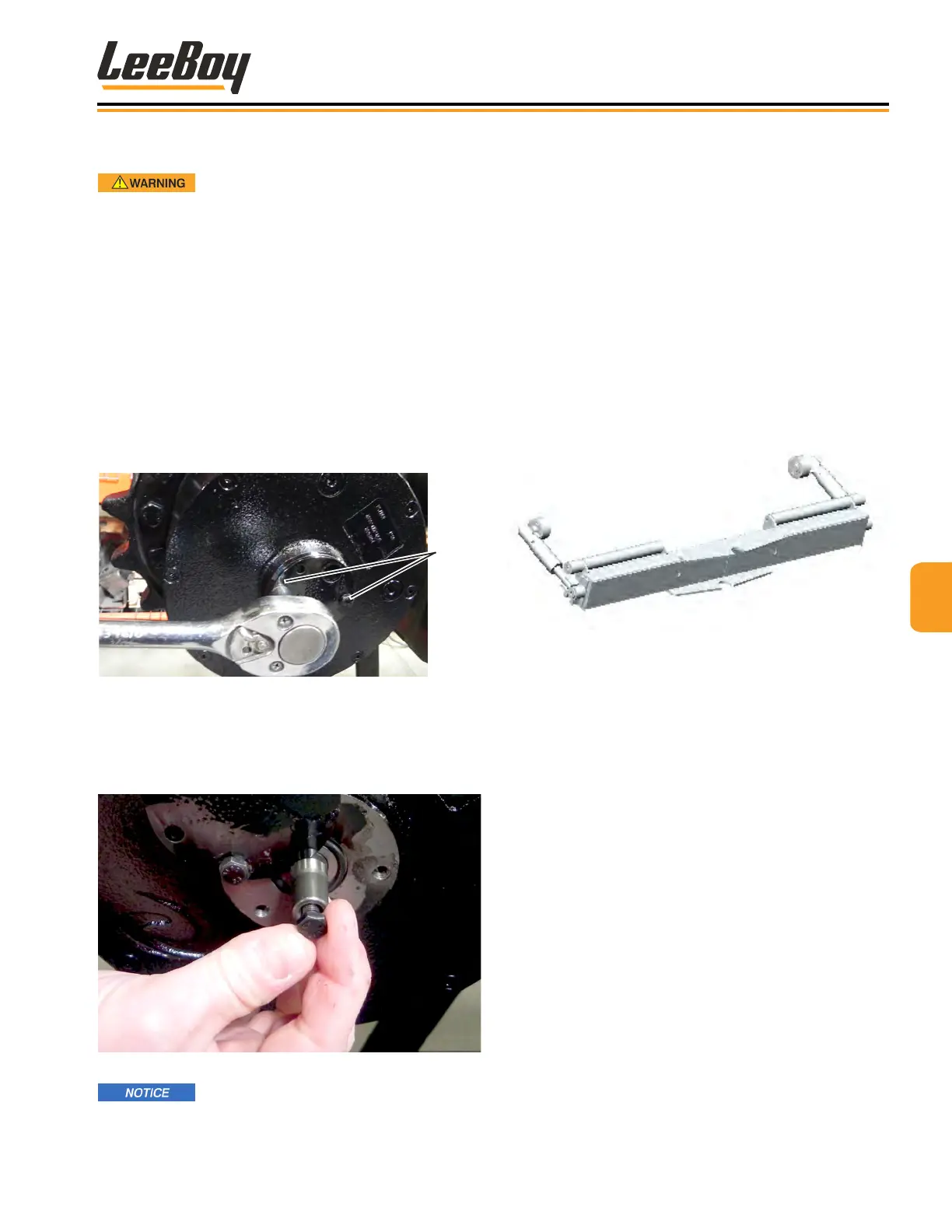

LeeBoy 8520C Conveyor Paver 4-39
Operation
Towing
Ensure the paver is on level ground
and blocked to prevent machine from moving while
preparing for towing. Be especially careful after dis-
connecting the torque hub as the paver could roll.
While it is strongly recommended that the paver be
transported rather than towed, there are situations
where you may need to tow the paver off the road until
a transport vehicle arrives. Do not tow paver long
distances.
You must disconnect the torque hub to prepare the
machine for towing as follows:
1. Using a wrench, loosen one of the two bolts on the
torque hub cap, then remove the other bolt and
retain for next step. (Figure 4-83)
Bolts
Figure 4-83. Remove Cap Bolts
2. Slide cap over and insert retained bolt into the
center of the hub. (Figure 4-84) This allows you to
pull the release mechanism out, which disconnects
the torque hub.
Figure 4-84.
Be sure to push release mechanism
back into place and reinstall/tighten bolts on cap
when nished moving the paver.
Optional Components
Umbrella OptionUmbrella Option
The umbrella kit option provides shelter from sun and
other weather conditions for the operator. The umbrella
kit assembly includes the mounting bracket and
umbrella frame assembly that can be mounted on either
side of the screed handle.
Truck Hitch Attachment OptionTruck Hitch Attachment Option
The truck hitch is an optional attachment that prevents
excessive and uneven braking from the paving material
truck. (Figure 4-85)
Figure 4-85. Truck Hitch Attachment Option
To engage the hitch with the rear wheels of the asphalt
truck:
1. Use the Truck Hitch switch on the main control
panel to move truck hitch into the desired position.
(Pages 3-6 and 3-7)
2. Extend the arm extensions of the truck hitch by
pushing and holding the Truck Hitch button in the
OUT position.
3. The paving material truck then SLOWLY backs up to
the paver until the hitch makes contact with the rear
tires of the truck.
4. Retract the arm extension by pushing and holding
the Truck Hitch switch in the IN position until both
guide rollers are fully locked onto the truck wheel
rims.
NOTE: It may be necessary to adjust the roller guides
to the inside of the wheel rims.
