3-8 LeeBoy 8520C Conveyor Paver
Component Location
Screed Controls
1
4
5
7
5
6
3
2
8

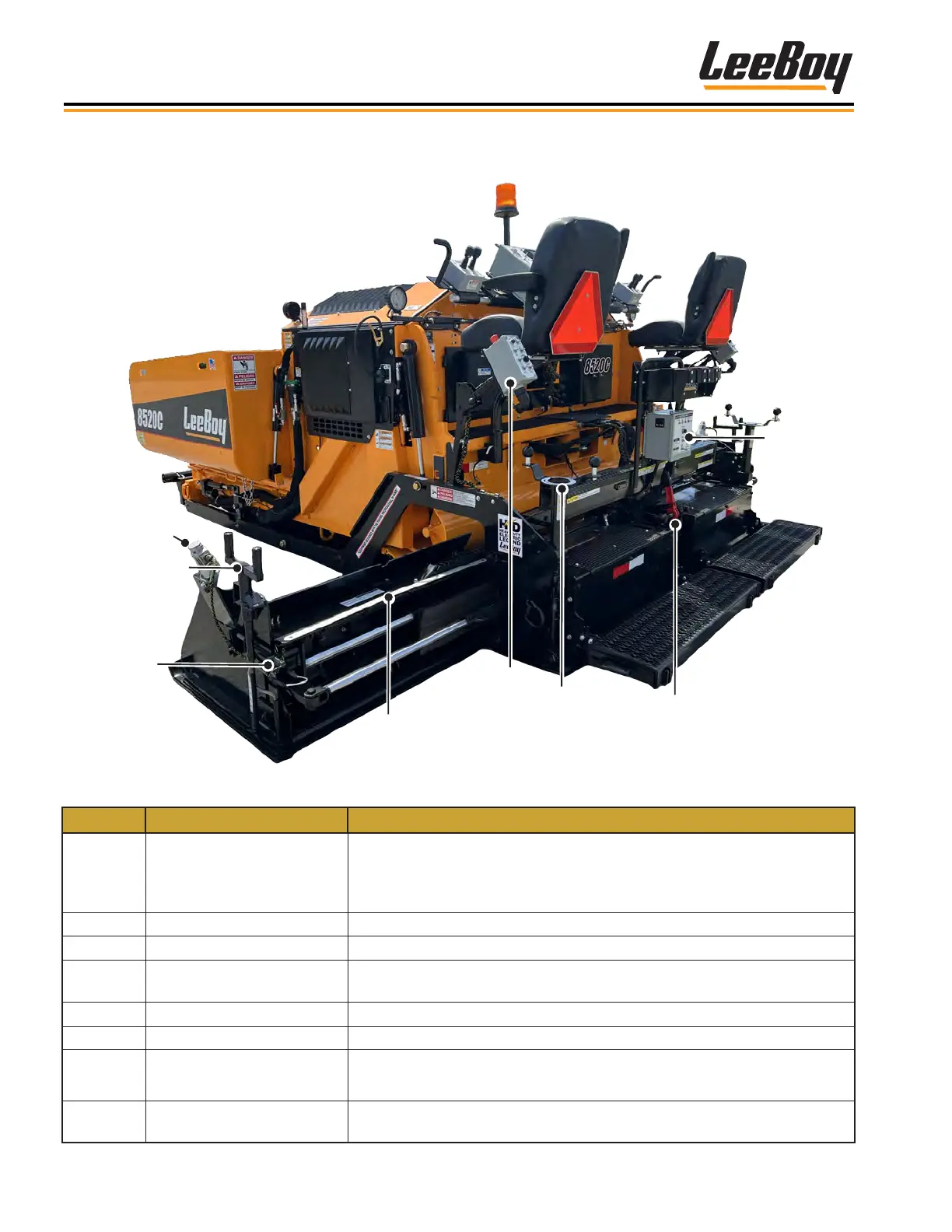

Figure 3-5. Screed Operation Controls
ITEM NO. CONTROL NAME FUNCTION
1 Sonic Auger Sensor
The sonic auger senses the asphalt height and automatically adjusts
the material ow to maintain an even pavement nish. The sonic auger
sensor slides into this mount on the screed extension and plugs into the
sonic cable connection.
2 Depth Screw Controls the asphalt depth at the end gate.
3 Tilt Screw Adjusts the tilt of the end gate.
4
Screed Extension Angle of
Attack (AOA) Screw
Adjusts the rear of the extension wearplate to provide the best mat.
Moves up or down and can level extension at wide widths.
5 Remote Screed Controls Controls for screed functions.
6 Flight Screw Controls the depth of the asphalt (one on each side of main screed).
7 Crown and Valley Adjuster
Adjusts for positive crown or negative valley in wear plate.
NOTE: Power Crown option available.
8 Electric Heat Box
Control box for the electric screed heat (and heated endgate option if
equipped).
