LeeBoy 8520C Conveyor Paver 4-45
Operation
Heated End GateHeated End Gate
The heated end gate also
heats the edge of the end gate,
producing a smoother joint
as you pave. (Figure 4-95)
(When the heated endgate is
turned on, the leading heating
element turns off on the side
you’re heating.) The heated end
gate switches are located on
the electric heat control box. 5

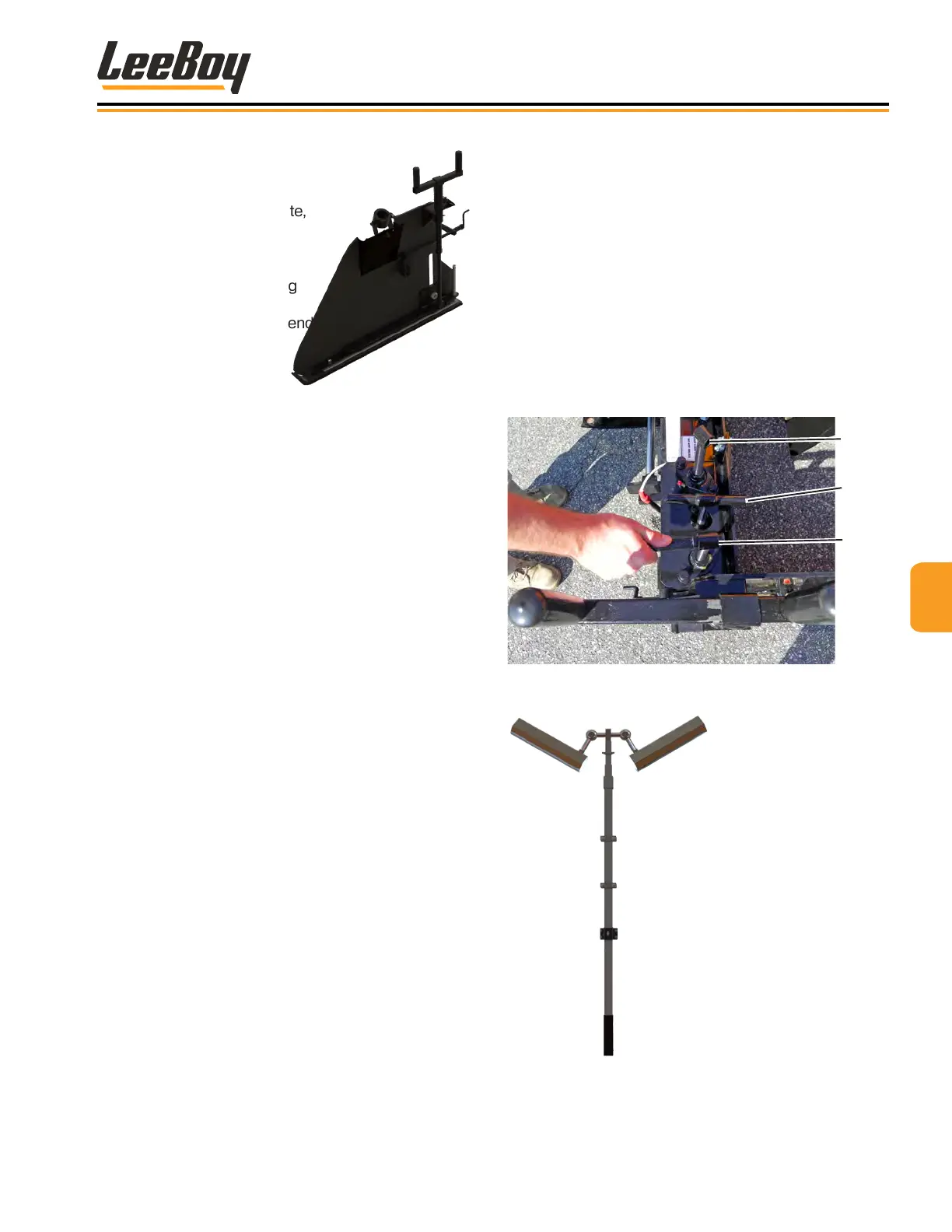

Figure 4-95. Heated Endgate
To operate the heated end gates:
1. Start the paver and idle until the engine reaches
normal operating temperature.
2. Raise the screed plate one or two inches off the
ground.
3. Turn the electric heat control box power ON by
turning the power switch up.
4. Press the Start Heat button. The HEAT ON indicator
light will illuminate and stay on as long as the
element is heating (approximately 20 minutes).
5. Turn the left or right end gate switch up to the ON
position.
6. You can restart the cycle by repeating Step 4 if
needed.
One-Foot Screed ExtensionOne-Foot Screed Extension
The 1-foot screed extensions attach to the main screed
extensions, extending paving width from 15 - 17 feet.
To attach the 1-foot extension:
1. Extend both main screed extensions.
2. Remove both endgates.
3. Install each 1-foot extension on correct side.
4. When both are installed, set wearplates at with the
main extension using the vertical lift adjusters and
AOA adjuster. (Figure 4-96)
5. Reinstall endgate.
AOA
Adjuster
Vertical
Lift
Vertical
Lift
Figure 4-96. One-Foot Screed Extension
Blade LightBlade Light
The blade light is mounted on
the operator platform oor and
clamped by the “grab handle” at
either side of the paver to illumi-
nate the work area when paving
at night. (Figure 4-97)
Two adjustable LED light wings
provide strong illumination in
any direction needed. The light
wings are mounted on a 15-foot
tripod that can also be adjusted
for height, then easily retracted
for storage. See your authorized
dealer for purchase.
Figure 4-97. Blade
Light Option
