5-24 LeeBoy 8520C Conveyor Paver
Maintenance
Fuel
Filter
Water
Separator
Fuel Pump
(w/Bowl Filter)

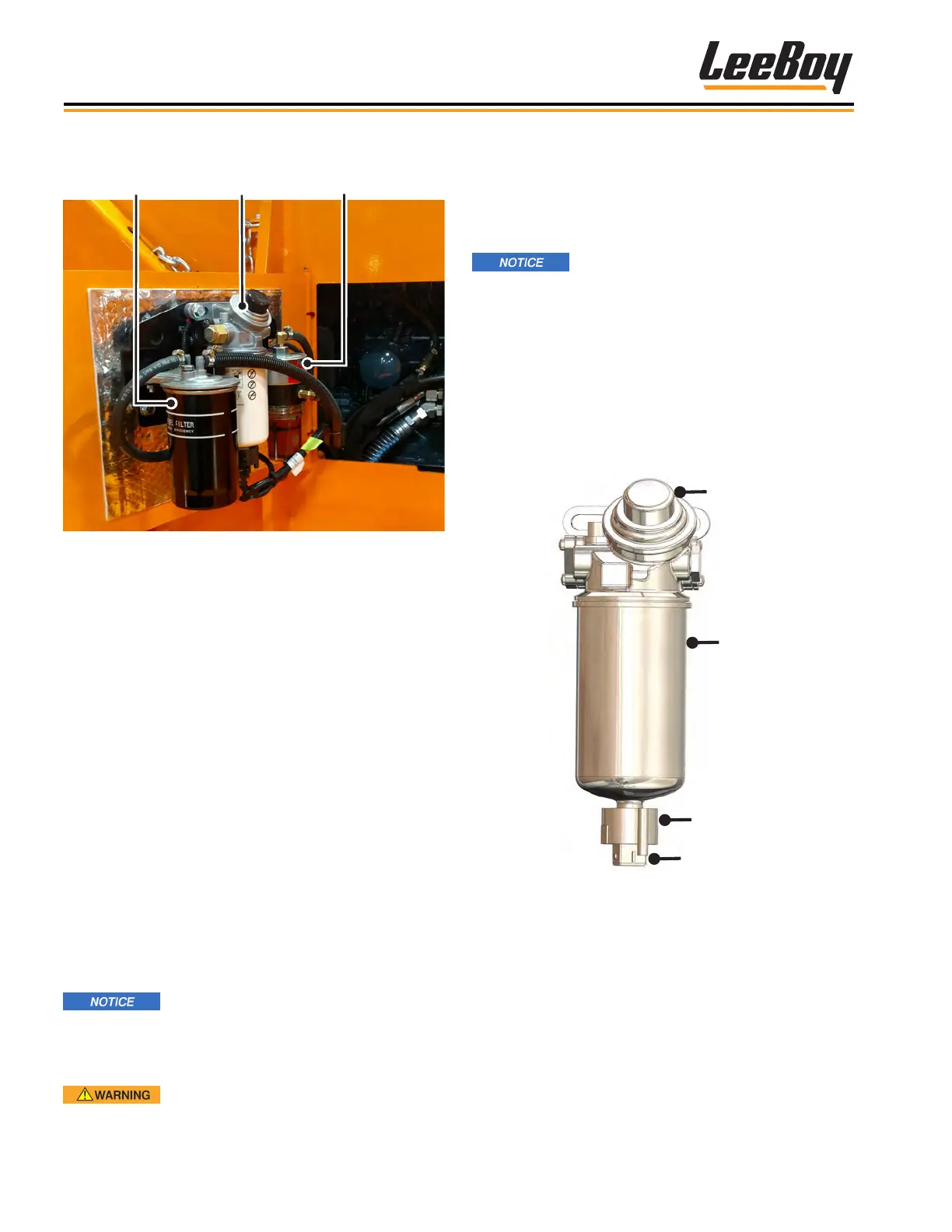

Figure 5-25. Fuel Filters
Replace the fuel lter using the following general
procedure.
1. Stop the engine and allow it to cool.
2. Put a container under the lter before removing it.
3. Wipe the area around the fuel lter and mounting
head using a clean, lint-free cloth.
4. Use a lter removal wrench to loosen and remove
the lter by turning it clockwise.
5. Drain and discard the removed lter in compliance
with local and federal environmental laws..
6. Wipe inside the lter head with a clean, lint-free
cloth.
7. Wipe a little fuel on the rubber gasket.
8. Install the new fuel lter element onto the lter head,
carefully tightening the element by hand.
9. Fill the new fuel lter element with the diesel fuel by
using the primer bulb on the lter housing.
Tighten the fuel lter as directed on by
the lter manufacturer. DO NOT overtighten the fuel
lter element onto the lter head.
10. Start the engine and check for any fuel leaks.
Explosion Hazard! Stop the engine
immediately if any fuel leakage is noted. DO NOT
start the engine until the leak has been corrected.
Fuel Water SeparatorFuel Water Separator
Water and dirt that gets into fuel settles into the water
separator. (Figure 5-26) An error code will appear on
the PV485 digital display when it needs to be emptied. It
is important to drain it immediately when this occurs.
If you run out of fuel, it is important
to pump the water separator to prime fuel injection
lines. Failure to do so can adversely affect
performance.
To drain the water separator:
1. Pull retainer clip from plug to disconnect the
harness.
2. Unplug the harness, then unscrew the plug.
3. Drain and reinsert components.
Pump
Filter
Body
Plug
Clip
Figure 5-26. Water Separator
To clean the water separator:
1. Follow the previous steps for draining the water
separator.
2. Loosen and remove the lter body and clean it with
light oil.
3. Reinsert and tighten.
