LeeBoy 8520C - Machine Specification Charts; Machine Dimensions and Engine Specifications

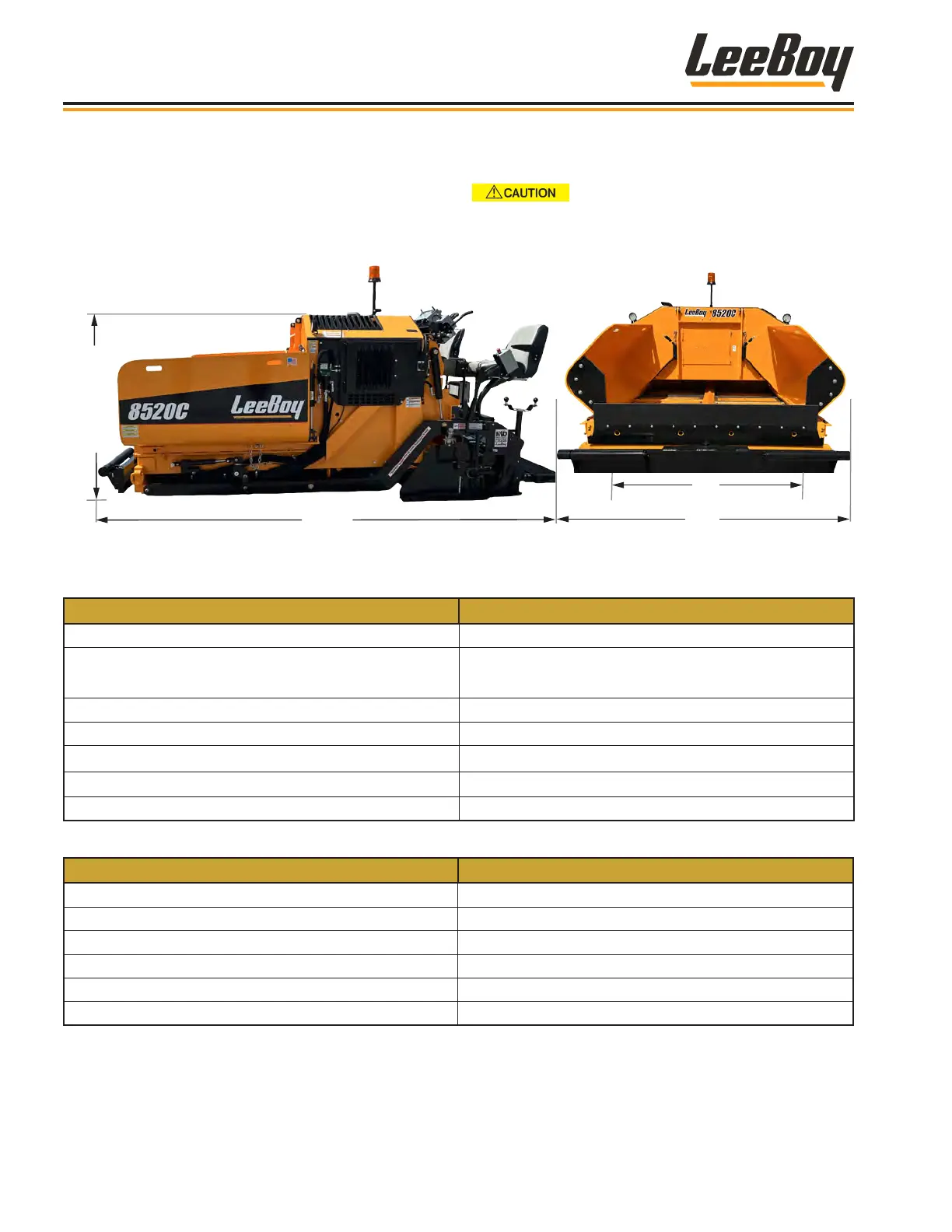

SPECIFICATION CHARTS
The specications provided in this section include
screed weights, dimensions, performance, and torque
values for both metric and standard inch fastener.
Table 2-1. Machine Dimensions
ITEM SPECIFICATION
Overall Length 14 ft 10 in (Transport: 13 ft 10 in)
Overall Height Low Deck: 6 ft 8 in
High Deck: 6 ft 10 in
Overall Width (Hopper Wings In) 8 ft 6 in
Overall Width (Hopper Wings Out) 10 ft
Overall Weight
21,400 lb
Paving Width 8 - 15 ft
Tunnel Area 6 sq ft
Table 2-2. Engine Specications
ITEM SPECIFICATION
Manufacturer and Model Kubota, V3800-TIH-2183
Engine Type Vertical Liquid Cooled Diesel, 4-Cylinder, Turbocharged
Bore, Stroke and Displacement 3.9 in; 4.72 in; 230 in
3
Maximum Gross Power 125 HP
High Idle 2200 RPM
Maximum Gross Torque 324.5 ft lb
Replace original equipment only with
components approved by your LeeBoy dealer.
14.10’
(13’ 10” Transport)
10’
8’ 6”
6.8’
(Low Deck)
6.10’
(High Deck)
LeeBoy 8520C Conveyor Paver
2-4
Information and Specications
