LeeBoy 8520C Conveyor Paver 5-47
Maintenance
Winterizing for Storage
Perform the following procedures to prepare the
machine for winterizing and storage.
1. Store the machine in a dry, protected area:
• Cover seat with plastic. Place a “DO NOT
OPERATE” tag on the main control panel.
• Cover all exposed control panels with tarps or
plastic.
• Ensure all cab doors and windows are closed
and seal properly.
• Ensure the tires are properly inated.
• Replace worn or damaged decals if needed.
2. Inspect the machine thoroughly and repair worn or
damaged parts. Inspect all hoses, couplers, ttings
and cylinders. Tighten loose ttings and replace any
worn hoses found.
3. Lubricate all grease points:
• Coat all exposed cylinder shafts with lithium-
based grease.
• Ensure all exposed threads are lubricated.
• Ensure cables are lubricated and move freely.
• If the machine has high- and low-speed chains,
be sure they are oiled.
4. Check air lter. Clean or replace air lter elements if
needed.
5. Check engine oil level and ll if needed.
• Drain dirty engine oil, ll with new oil and run the
engine ve minutes to allow the oil to penetrate
components.
To avoid the danger of exhaust fume
poisoning, DO NOT operate the engine in a closed
building without proper ventilation. Check hydraulic
oil sight gauge and ll if needed.
Hydraulic oil that is contaminated
must be drained, the lter elements replaced and
the hydraulic tank relled. Failure to perform this
maintenance procedure if needed could result in
premature failure of the pumps or motors.
Hopper Wing CylindersHopper Wing Cylinders
1. Fold in the hopper wings completely.
2. Secure wings to prevent them from falling open
when the cylinder is disconnected.
3. Fold out cylinder and disconnect hoses. (Figure
5-63)
4. Disconnect the cylinder mount by removing pins and
slide off cylinder.
5. Slide new cylinder onto the mount.
6. Clean the hydraulic hoses and reattach.
7. Reinsert pins.
Hose
Pins
Cylinder
Cylinder
Lock
Valve
Hose

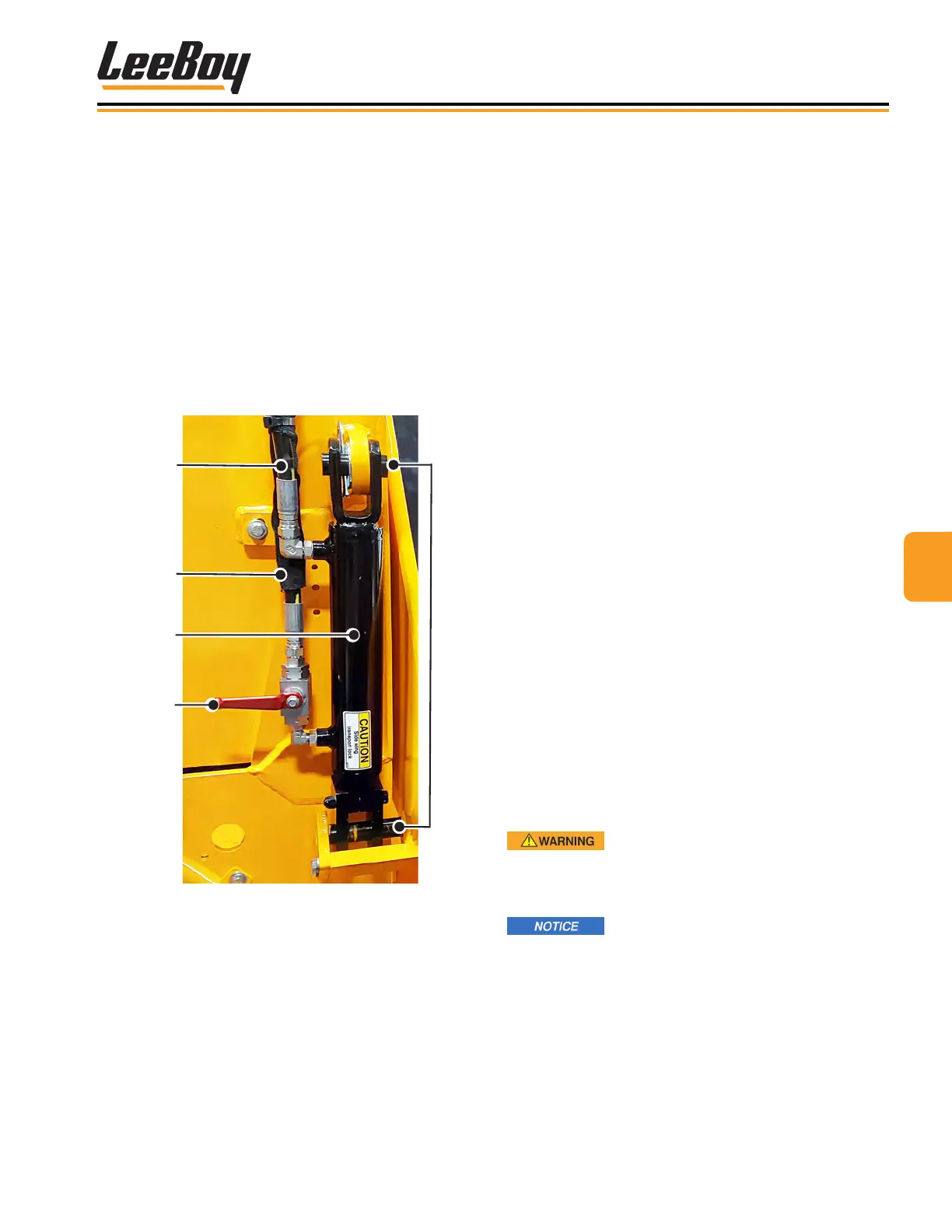

Figure 5-63. Rear Hopper Wing Cylinder
