LeeBoy 8520C - Machine Overview; Machine Overview Diagram and Controls Table

33
LeeBoy 8520C Conveyor Paver 3-5
Component Location
Machine Overview
1 2
3
4
5
6
7
8
10
9
11

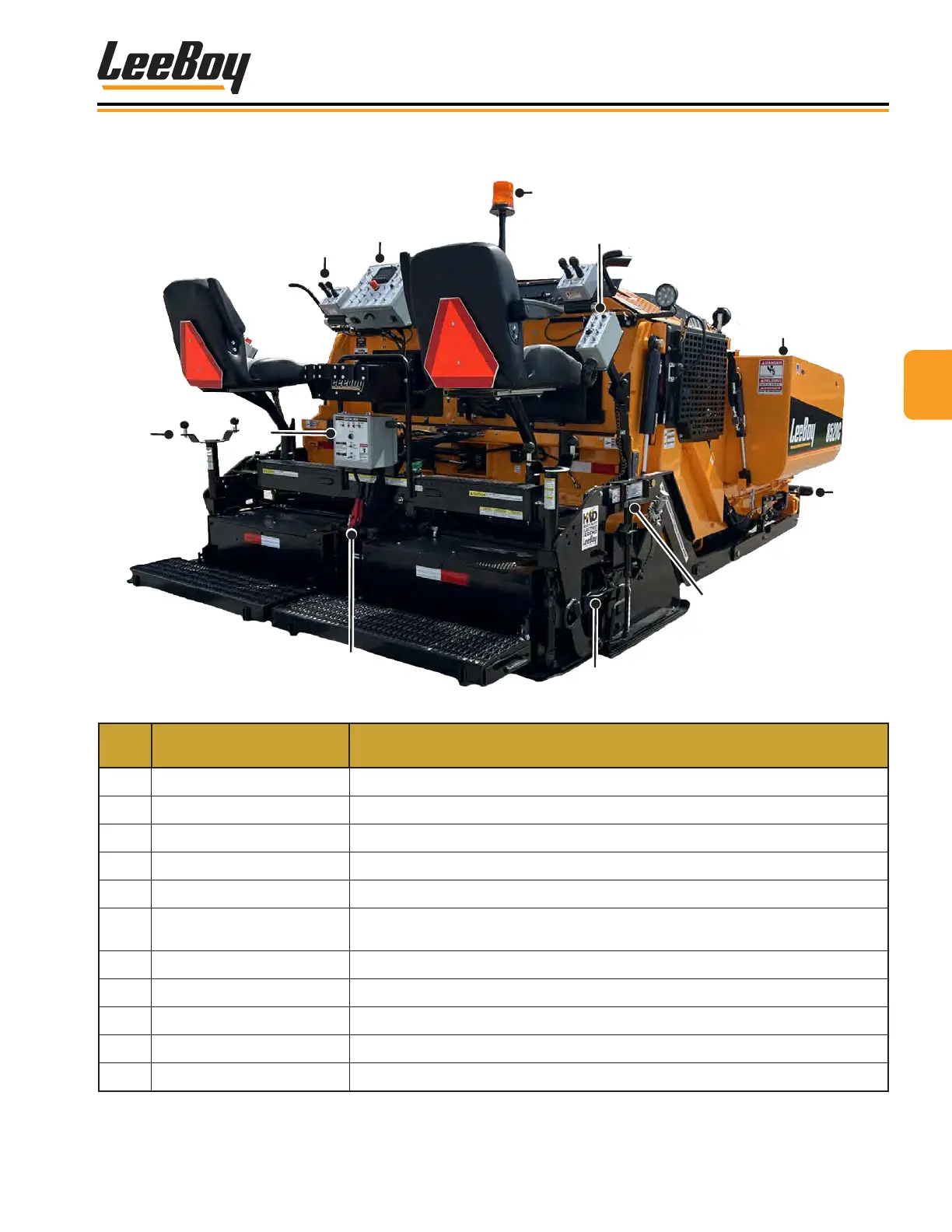

Figure 3-1. Machine Overview
ITEM
NO.
CONTROL NAME FUNCTION
1 Flight Screw
Controls depth of the asphalt (one on each side of main screed).
2 Electric Heat Box
Controls for heating the screed.
3 Joystick Controls
Controls travel direction and speed (on each operator station).
4 Operator Control Panel
Main operator control panel. Slides to either side of operator platform.
5 Beacon Light
Revolving amber safety light to alert trafc and others at the work site.
6 Remote Screed Controls
9-Function screed control box mounted on each side of screed features all
the important screed controls for ease of use while paving.
7 Hopper
Hopper wings fold out to hold asphalt material.
8 Crown and Valley Adjusts crown and valley while paving.
9 Tilt Screw Adjusts the tilt of the end gate.
10 Depth Screw Controls asphalt at the end gate (one on each end gate).
11 Adjustable Roller Bar Adjustable Roller Bar
