95
ε
ON/+
OFF/-
RL/C
2x400 VA
ON/+
OFF/-
M
G2
PL2
G1
PL1
A
ε
1 2 43
5681213 91011 7
14
15
16
002622
F417U2
Description
Control device powered at 100 – 240 Vac for dimming resistive loads, ferromagnetic
transformers and electronic transformers. The loads can be adjusted via any control
device and/or sensor connected and properly configured, or by using the button on the
device. The actuator is able to signal any load faults such as, for example, lamp failure.
The device is a component in the Lighting Management system and can also be installed
in a My Home system.
Technical data
Power supply: 100 -240 Vac @ 50/60 Hz
Number of outputs: 2 x 1.7 A
Power consumption on standby: 0.9 W
Operating temperature: (-5) – (+45) °C
Type of connection: – RJ45
– clamp input 2 x 2.5 mm
2
– clamp output 2 x 1.5 mm
2
and 1 x 2.5 mm
2
Protection index: IP20
Impact resistance: IK04
Cable section: 2.5 mm
2
Standards, Certifications, Marks
Directive:
– Electromagnetic Compatibility Directive 2004/108/EC
Installation regulations:
– CEI 64-8
Product regulations:
– IEC 60669-2-1
– EN 50428
Environmental regulations:
– EU Directive 2002/96/EC: WEEE (Waste Electrical and Electronic Equipment)
– EU Directive 2002/95/EC: RoHS (Restriction of Hazardous Substances)
Dimensions
Size: 6 DIN modules

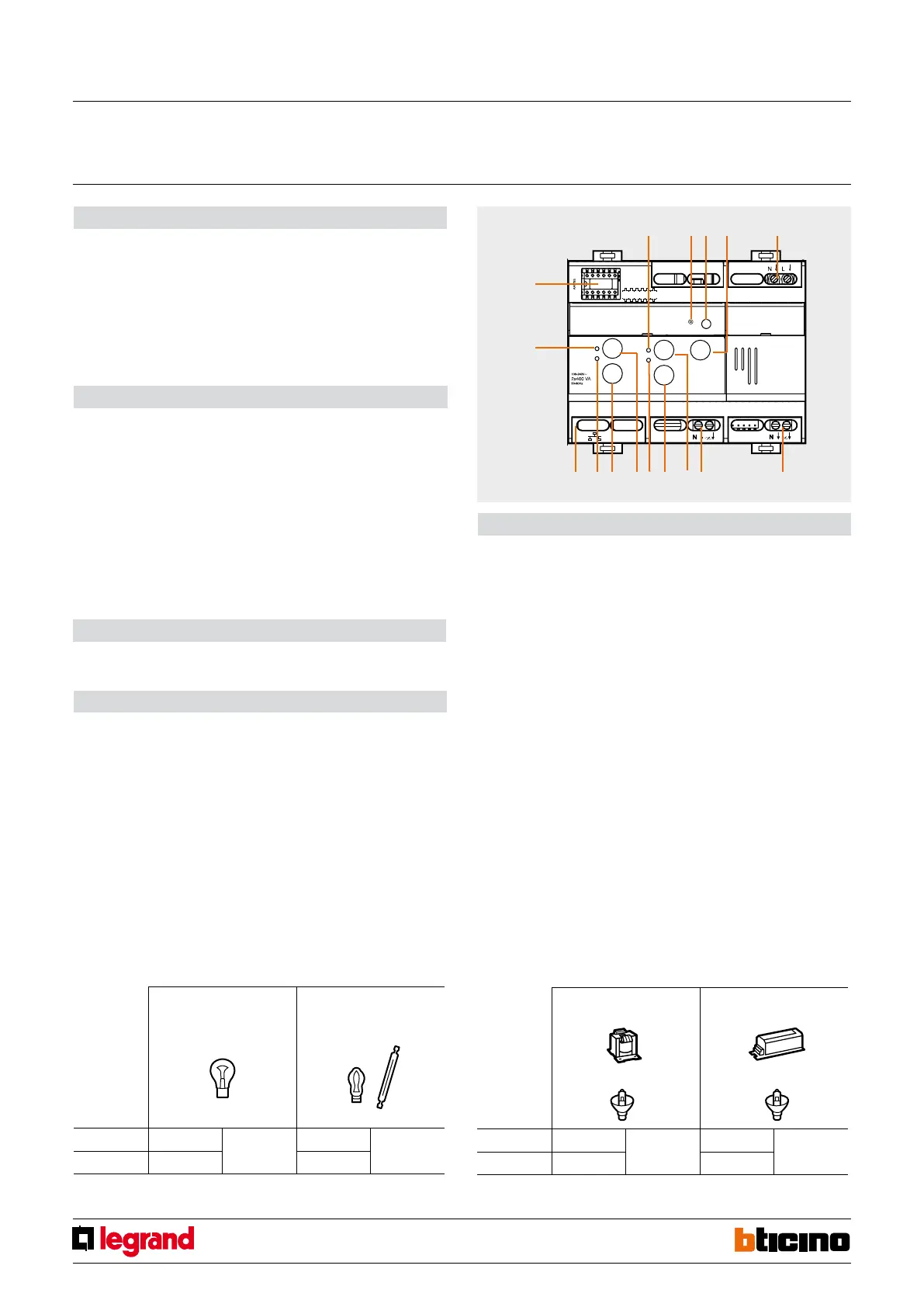

Legend
1. Learn LED
2. Learn pushbutton
3. Button for manual load forcing
4. Clamps for the connection to the 230 V ac power supply
5. Load 2 connection clamps
6. Load 1 connection clamps
7. Load 2 adjustment/ON control button
8. Load 2 adjustment/OFF control button
9. Load 2 malfunctioning LED
10. Load 1 adjustment/ON control button
11. Load 1 adjustment/OFF control button
12. Load 1 malfunctioning LED
13. BUS RJ45 connector
14. Configurator socket (note that this must only be used in My Home systems with the
physical configuration)
15. Load 1 indicator: LED OFF: load OFF
LED ON green: load ON from 1% to 100%.
LED ON orange: fault with load
16. Load 2 indicator: LED OFF: load OFF
LED ON green: load ON from 1% to 100%.
LED ON orange: fault with load
Power/Consumption of driven loads:
SCS Dimmer 2x1.7A
MQ00316-e-EN 09/06/2014
Incandescent lamp Halogen lamps
230 V~ 2 x 400 W
2 x 1.7 A
2 x 400 W
2 x 1.7 A
110 V~ 2 x 200 W 2 x 200 W
+ +
Ferromagnetic transformers Electronic transformers
230 V~ 2 x 400 VA
1.7 A
2 x 400 VA
2 x 1.7 A
110 V~ 2 x 200 VA 2 x 200 VA
WARNING: Devices that operate with an electronic transformer or a ferromagnetic transformer cannot be connected on the same line
