Warning:
For proper operation of the actuator set the type of lamp to be driven using the
configuratorinTYposition.Ifthelampdoesnotturnonorshowsunstableoperation,
select, using the configurator in the MIN or virtual configuration position, the minimum
Dimmer for energy saving lamps
MQ00594-d-EN 05/08/2014
1.3 Minimum advanced level
Virtual configuration (MYHOME_Suite) Physical configuration
Function Parameter / setting
The configurator in this position defines the minimum value
of the light intensity obtainable by means of the dimmed
adjustment.
0-100 MIN=0 O
1)
MIN=1 1%
MIN=2 5%
MIN=3 10%
MIN=4 15%
MIN=5 20%
MIN=6 25%
MIN=7 30%
MIN=8 35%
MIN=9 40%
NOTE 1): The default value is set to ensure the best performance according to the configurator in
TYposition.
level of light intensity until to obtain the value that allows the proper operation of the
lamp.

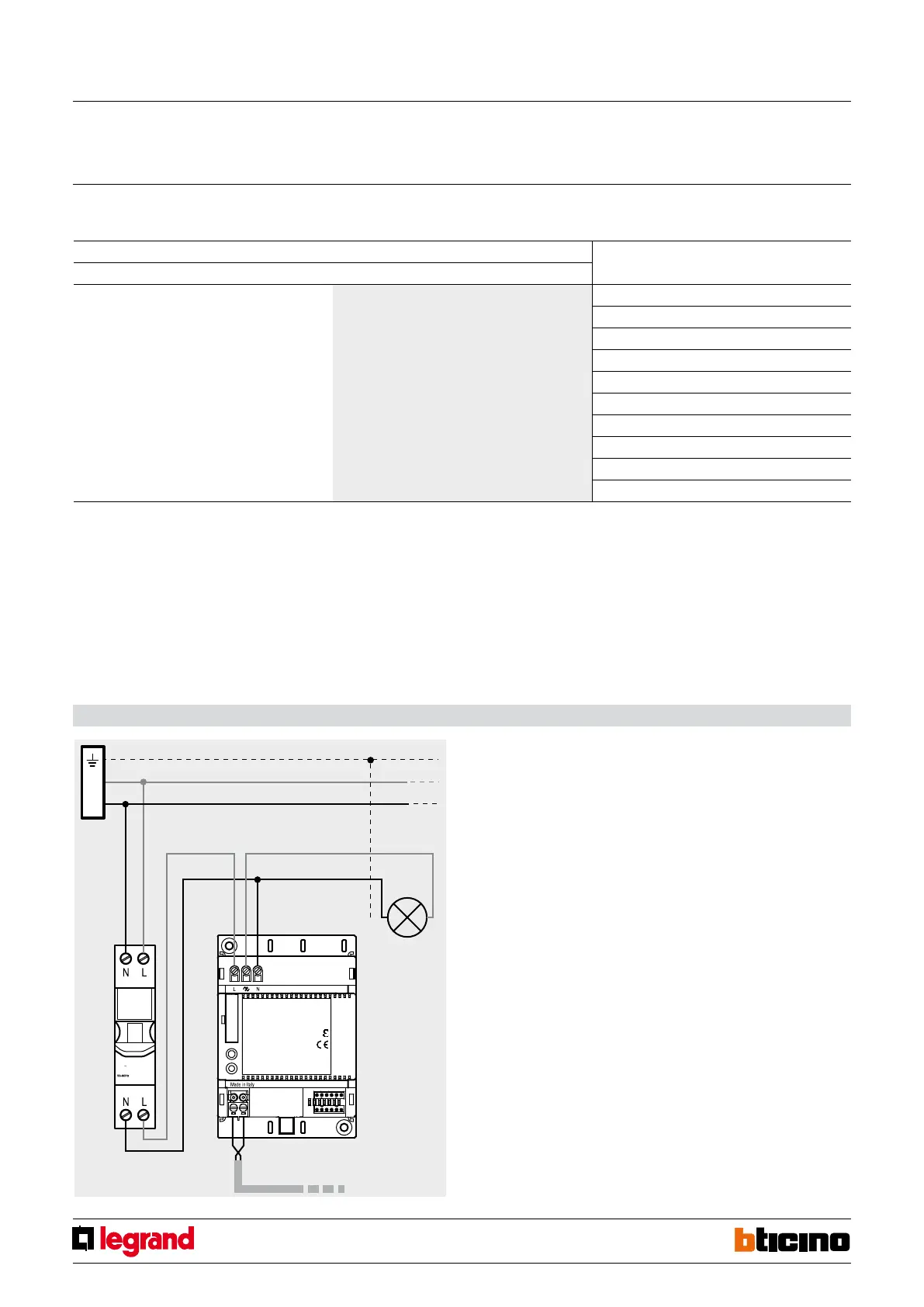

Wiring diagram
To Next Page
