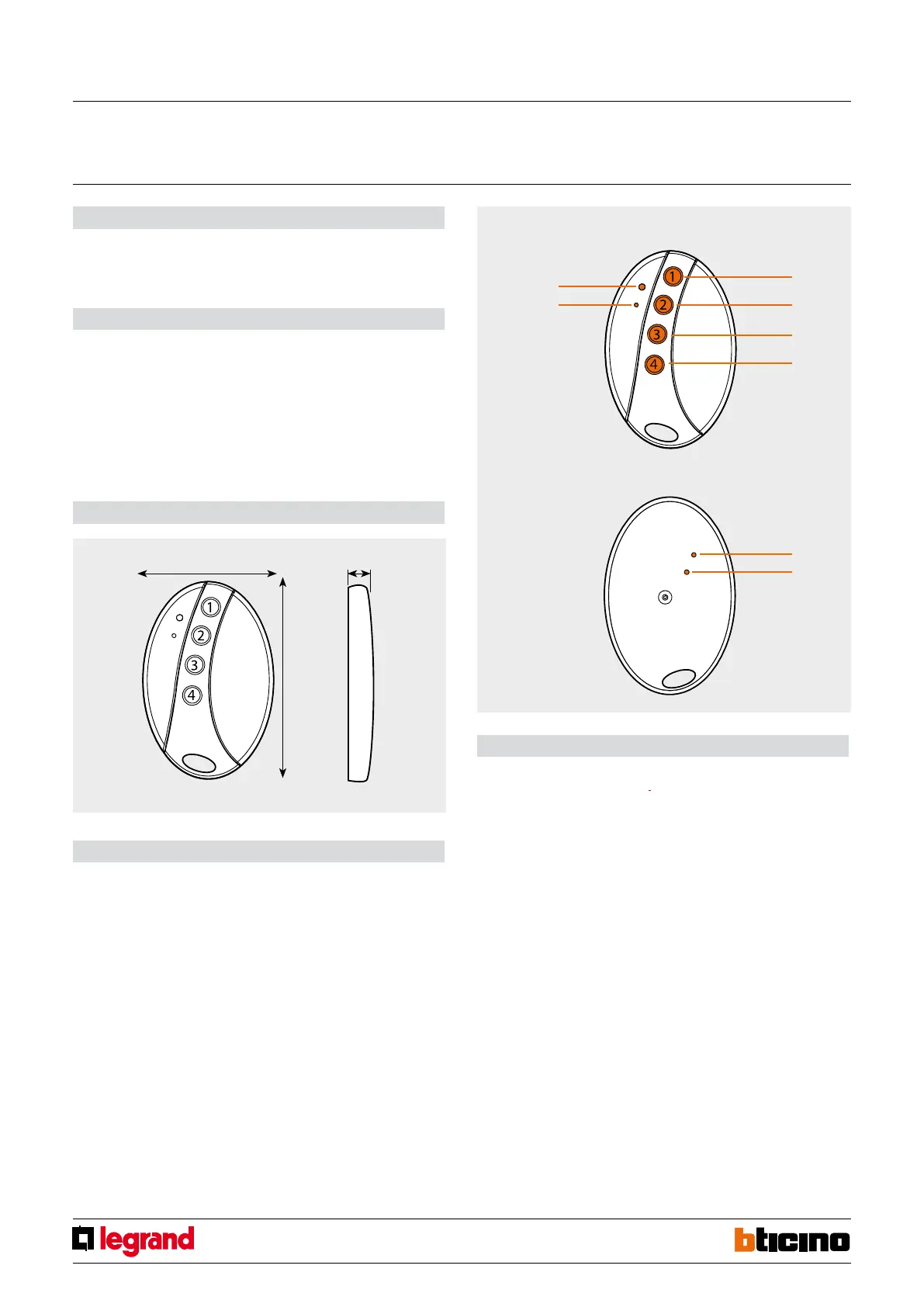

LEGRAND 3440 - Page 12

3
1
2
3
4
6
5
7
8
50 mm
76 mm
21 mm
3528N
5738 70
Remote control 4 pushbuttons
Remote control with 4 scenario control pushbuttons.
Description
Legend
1. Scenario no. 1 activation pushbutton
2. Scenario no. 2 activation pushbutton
3. Scenario no. 3 activation pushbutton
4. Scenario no. 4 activation pushbutton
5. LEARNING LED
6. LEARNING key
7. NETWORK LED
8. NETWORK key
Power supply: No. 1 lithium battery, 3V, CR2032 type
Duration of the batteries: 5 years
Operating temperature: 5 – 45 °C
Technology:
2.4 GHz Radiofrequency ZigBee® standard
Capacity: 80 m free field, 15 m in rooms with
concrete walls
Technical data
“Push and Learn” self-learning type.
Configuration
Front view
Rear view
Dimensional data
