4
2
1
4
3
5
N L
38 mm
N L
141 mm
50 mm
5738 62 3571

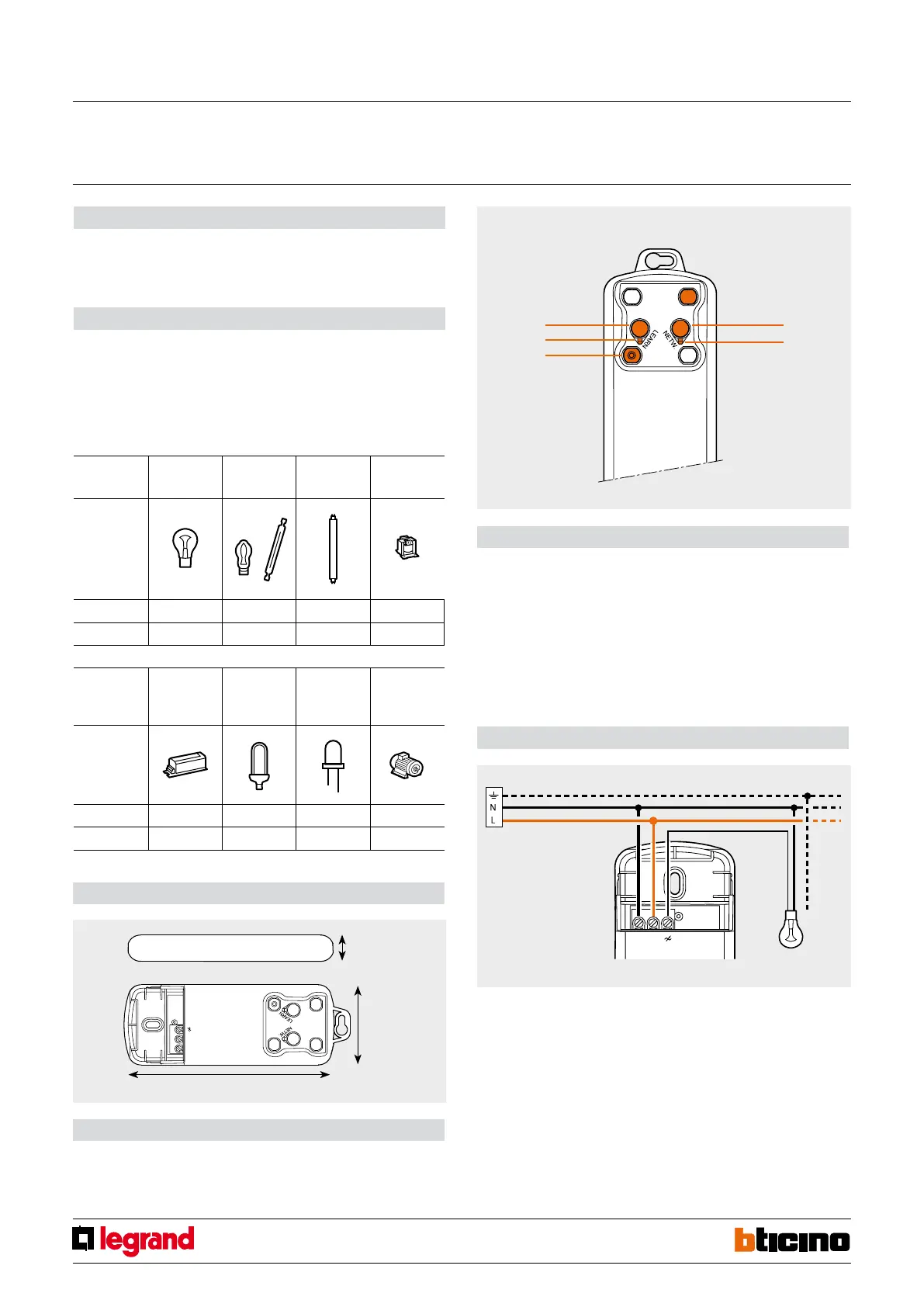

Integration module switch 1X2500W RF
Actuator for the control of a load with maximum power 2500 W, with ON/OFF control
pushbutton for system testing.
In enclosure suitable for installation inside false ceilings.
Description
Legend
1. NETWORK key
2. NETWORK LED
3. ON/OFF key
4. LEARNING LED
5. LEARNING key
Wiring diagram
Dimensional data
“Push and Learn” self-learning type.
Configuration
Important:
– Protect the device with a 10 A fuse.
– Connect a load before performing any “scenario” learning procedure.
– For conventional type transformers, a load with power 60% higher than their rated
power must be connected.
– For the calculation of the controllable power take into account the efficiency of
standard transformers (e.g.: transformer for a 50 W lamp with an efficiency of
0.78 => power actually absorbed by the transformer = 64 VA)
Front view
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology:
2.4 GHz Radiofrequency ZigBee® standard
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen lamp
Fluorescent
tube lamp
Ferromagnetic
transformer
Voltage
230 Vac 2500 W 2500 W 1250 W 2500 VA
110 Vac 1250 W 1250 W 625 W 1250 VA
Voltage
Electronic
transformer
Compact
uorescent
tube lamp
LED lamps Motors
Voltage
230 Vac 2500 W 1250 W 1250 W 250 VA
110 Vac 1250 W 625 W 625 W 125 VA
MQ00394-b-EN 30/04/2013
