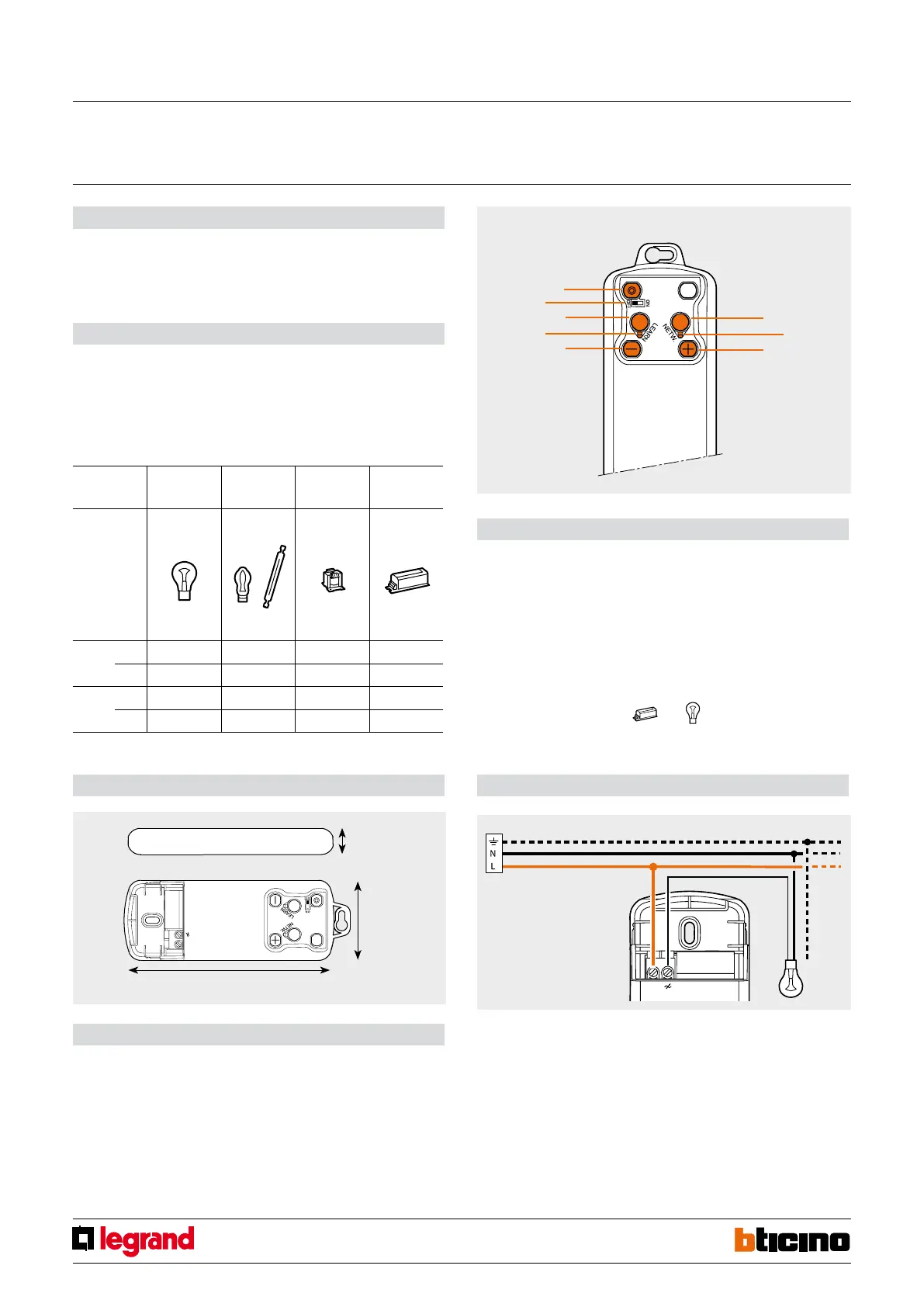

Integration module dimmer 1 X 600W all load RF
Dimmer actuator for the control of a load with maximum power 600 W, with ON/OFF
control and adjustment pushbuttons for system testing.
In enclosure suitable for installation inside false ceilings.
Description
Legend
1. NETWORK key
2. NETWORK LED
3. + key: press and release to switch the load ON at 66% of its power, press and hold
down to increase the power to the maximum value
4. - key: press and release to switch the load ON at 33% of its power, press and hold
down to decrease the power to the minimum value
5. LEARNING LED
6. LEARNING key
7. Load selection micro-switch: ON
/ OFF
8. ON/OFF key
Wiring diagram
Dimensional data
“Push and Learn” self-learning type.
Configuration
Front view
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology:
2.4 GHz Radiofrequency ZigBee® standard
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen lamp
Ferromagnetic
transformer
Electronic
transformer
Voltage
230 Vac
Max. 600 W 600 W 450 VA 600 VA
Min. 60 W 60 W 60 VA 60 VA
110 Vac
Max. 300 W 300 W 225 VA 300 VA
Min. 60 W 60 W 60 VA 60 VA
Important:
– Connect a load before performing any “scenario” learning procedure.
– For conventional type transformers, a load with power 60% higher than their rated
power must be connected.
– For the calculation of the controllable power take into account the efficiency of
standard transformers (e.g.: transformer for a 50 W lamp with an efficiency of
0.78 => power actually absorbed by the transformer = 64 VA)
30/04/2013MQ00395-b-EN
