6
N L – +
2
1
5
4
6
3
7
38 mm
141 mm
50 mm
5738 66
3573

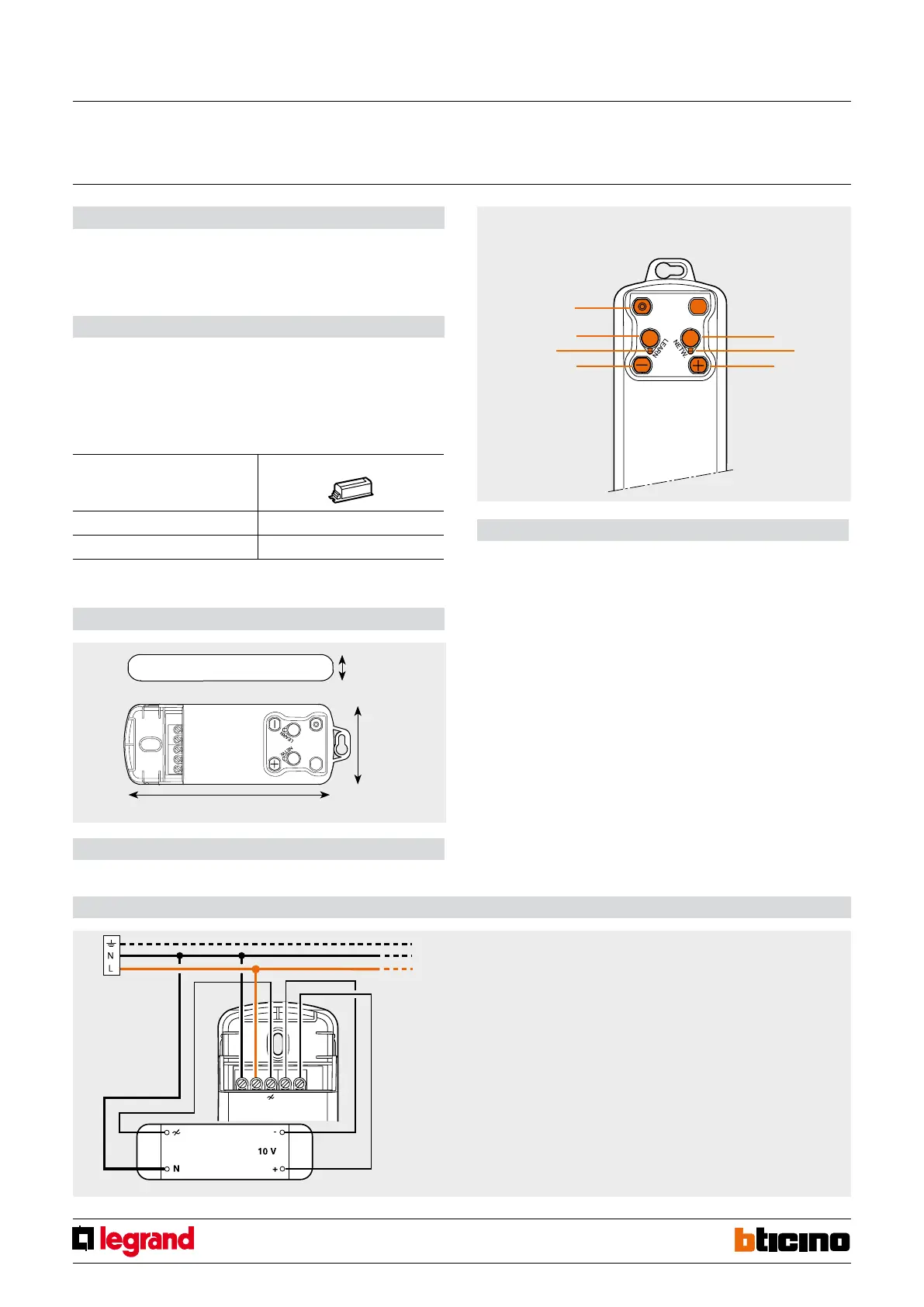

Integration module dimmer 0-10V 1000W RF
Actuator for the control of Ballasts for 0-10 V type Fluorescent tube lamps with power up
to 1000 W max. The device has pushbuttons for ON/OFF control and for the adjustment
of the power to the load for system testing.
In enclosure suitable for installation inside false ceilings.
Description
Legend
1. NETWORK key
2. NETWORK LED
3. + key: press and release to switch the load ON at 66% of its power, press and hold
down to increase the power to the maximum value
4. - key: press and release to switch the load ON at 33% of its power, press and hold
down to decrease the power to the minimum value
5. LEARNING LED
6. LEARNING key
7. ON/OFF key
Power supply: 100 – 240 Vac 50/60 Hz
Operating temperature: 5 – 45 °C
Technology:
2.4 GHz Radiofrequency ZigBee® standard
Capacity: 150 m free field, 15 m in rooms with
concrete walls
Power/absorption of the loads driven: see following table
Technical data
Wiring diagram
Dimensional data
“Push and Learn” self-learning type.
Configuration
Front view
Important:
– Connect a load before performing any “scenario” learning procedure.
– For conventional type transformers, a load with power 60% higher than their
rated power must be connected.
– For the calculation of the controllable power take into account the efficiency
of standard transformers (e.g.: transformer for a 50 W lamp with an efficiency
of 0.78 => power actually absorbed by the transformer = 64 VA)
Voltage
Ballast 0 – 10 V
230 Vac 1000 VA
110 Vac 500 VA
MQ00396-b-EN 30/04/2013
