0883 20
0883 21
0883 22
3574

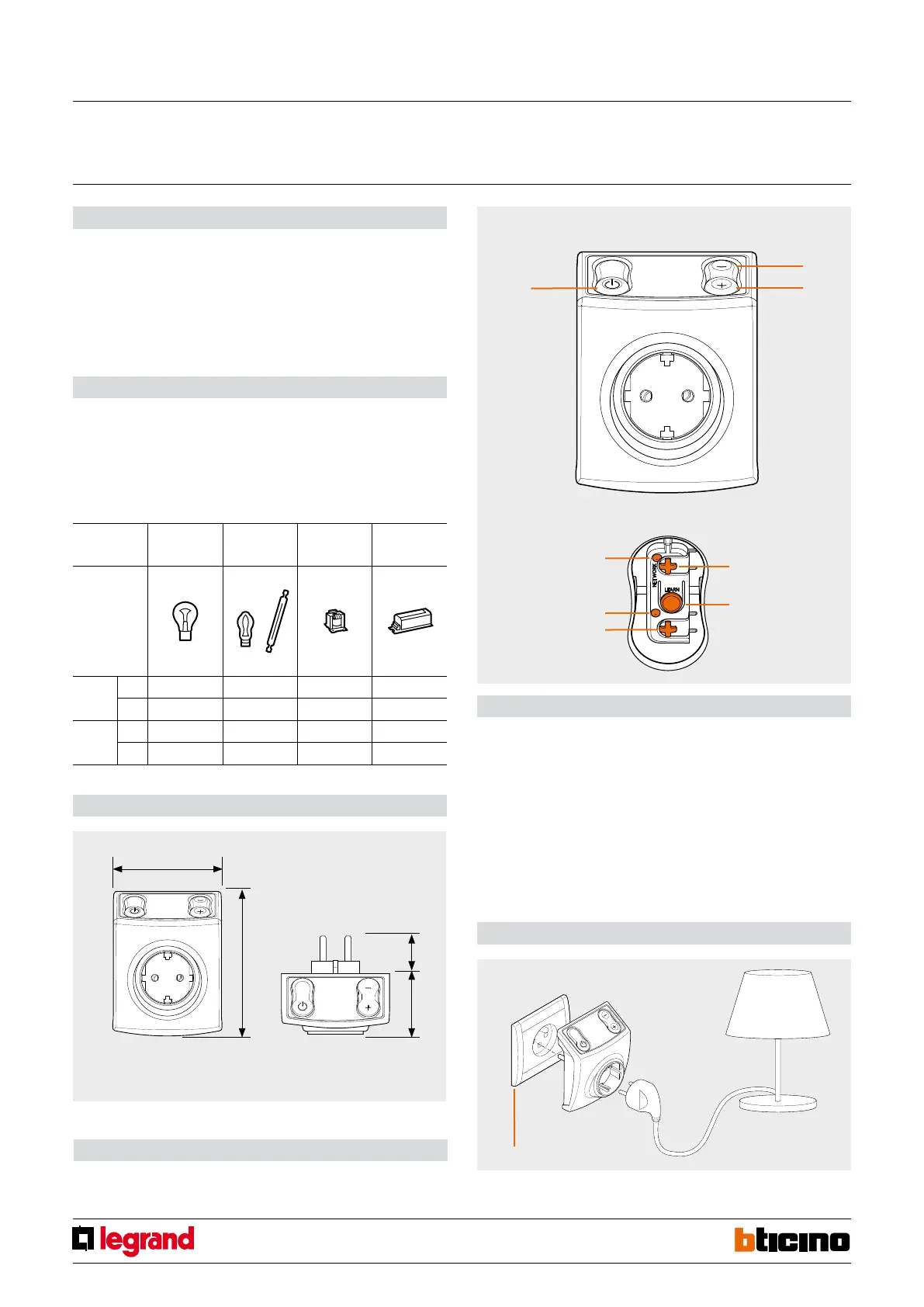

Mobile switched dimmer socket RF ZigBee
for Schuko Standard
Actuator device to be used with an electric socket, for dimmer control of a load with
maximum power 500 W. The mobile socket can be managed with one or more radio
controls or locally using an appropriate pushbutton that can be found on the top section
of the device.
The device is protected from overheating caused by overload through an appropriate
protection circuit that intervenes automatically by reducing the power to the load.
Description
Assembly, installation
“Push and Learn” self-learning type.
Configuration
Front view
Power supply: 100 – 240 Vac; 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field;
15 m in rooms with concrete walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen lamp
Ferromagnetic
transformer
Electronic
transformer
Voltage
230 Vac
max.
500 W 500 W 500 VA 500 VA
min.
50 W 50 W 60 VA 60 VA
110 Vac
max.
250 W 250 W 250 VA 250 VA
min.
50 W 50 W 60 VA 60 W
Detail point 1
Size in mm
Dimensional data
Legend
1. ON/OFF key. The programming pushbuttons and LEDs can be found under the
protection:
a. CONTROL key
b. LEARNING LED
c. NETWORK LED
d. NETWORK key
e. LEARNING key
2. – key: press and hold down to decrease the power to the minimum value.
3. + key: press and hold down to increase the power to the maximum value
Socket
