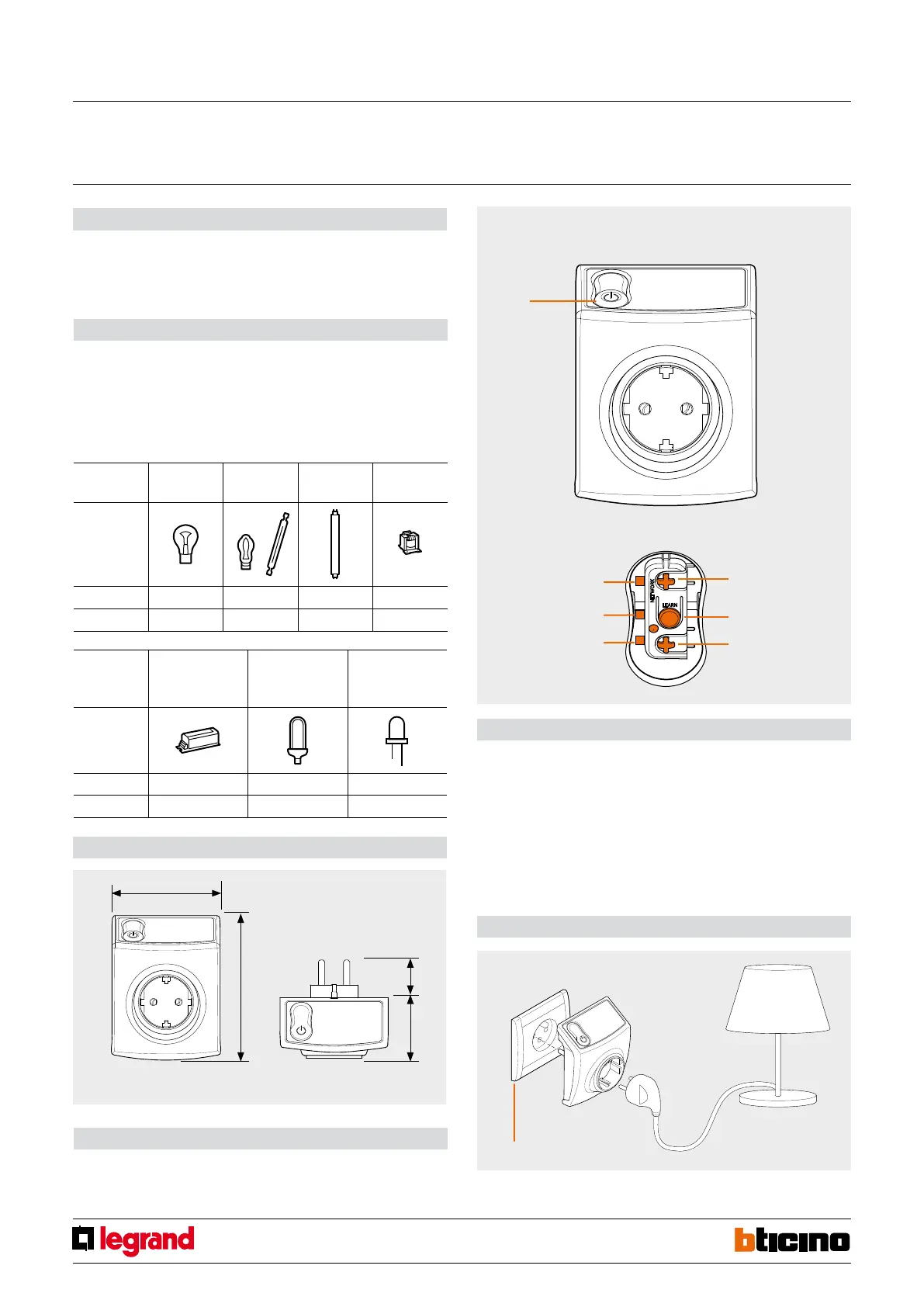

3575
Mobile switch socket RF ZigBee for Schuko Standard
Actuator device to be used with an electric socket, for ON/OFF control of a load with
maximum power 2500 W. The mobile socket can be managed with one or more radio
controls or locally using an appropriate pushbutton that can be found on the top
section of the device.
Description
Legend
Assembly, installation
“Push and Learn” self-learning type.
Configuration
Front view
Detail point 1
Size in mm
Dimensional data
1. ON/OFF key. The programming pushbuttons and LEDs can be found under the
protection:
a. CONTROL key LED
b. LEARNING LED
c. NETWORK LED
d. NETWORK key
e. LEARNING key
f. CONTROL key
Socket
Power supply: 100 - 240 Vac; 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field;
15 m in rooms with concrete walls
Power/absorption of the loads driven: see following table
Technical data
Voltage
Incandescent
lamp
Halogen lamp
Fluorescent
tube lamp
Ferromagnetic
transformer
Voltage
230 Vac 2500 W 2500 W 1250 W 2500 VA
110 Vac 1250 W 1250 W 625 W 1250 VA
Voltage
Electronic
transformer
Compact uorescent
tube lamp
LED lamps
Voltage
230 Vac 2500 W 1250 W 1250 W
110 Vac 1250 W 625 W 625 W
