0883 27
3576

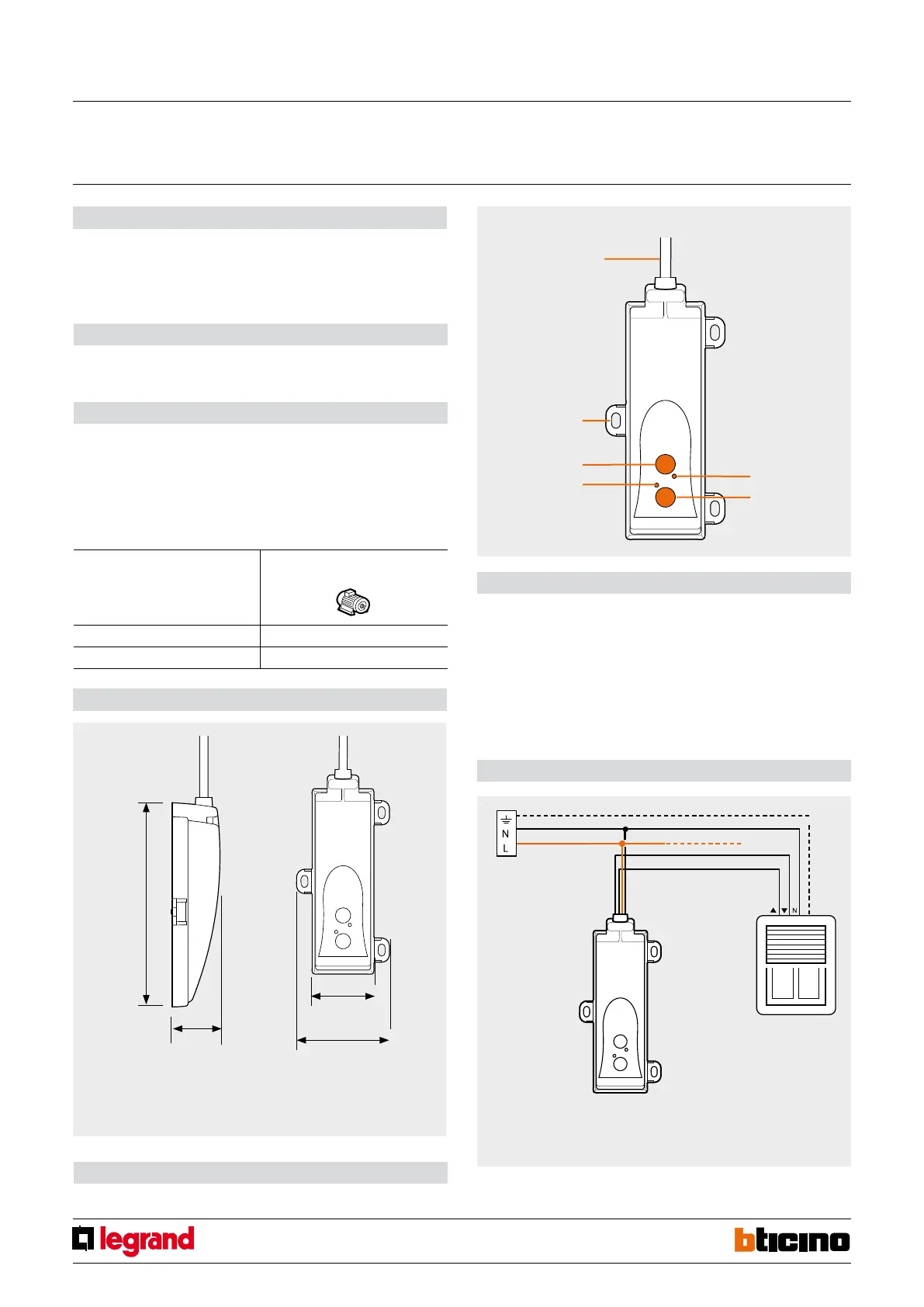

Individual roller blind controller RF ZigBee for mounting in
technical compartment
MQ00491-c-EN
Size in mm
Actuator device for the control of rolling shutter and shutter motors with maximum
power 500 VA.
The actuator is inside an appropriate enclosure for installation in rolling shutter boxes
or junction boxes.
Description
Power supply: 100 - 240 Vac; 50/60 Hz
Operating temperature: 5 – 45 °C
Technology: Radio 2.4 GHz standard ZigBee®
Capacity: 150 m free field;
15 m in rooms with concrete walls
Power/absorption of the loads driven: see following table
Technical data
Wiring diagram
Dimensional data
“Push and Learn” self-learning type.
Configuration
Front view
Legend
1. LEARNING LED
2. NETWORK key
3. Fixing hook
4. Wiring for connection to the power line and to the load
5. NETWORK LED
6. LEARNING key
Voltage
Shutter motor
230 Vac
500 VA
100 Vac
270 VA
Important: Connect a load before performing any “scenario” learning procedure.
blue
brown
grey
black
Related items
Shutter control RF HA/HB4599 (Axolute), L/N4599N (Livinglight), 067264 (Celiane/
Arteor), 078428 e 079128 (Mosaic), 663097 (Nereya) e 665111 (Niloe).
