Description
This sensor protects doors and windows and generates an alarm signal in case of unwanted
opening. The device consists of two elements:
- a magnet, to be installed on the window /door, with corresponding bracket/spacer;
- a battery powered radio transmitter with NC contact to be installed on the window/door
frame.
The alarm is generated when, by opening the door or the window, the magnet is moved away
from the corresponding radio transmitter. Up to 3 NC additional contacts can be connected to
the device, protecting 3 more units (doors/windows).
Technical data
- Power supply: 3.6 V lithium battery - type 1/2 AA
- Operating temperature: +5 – +40°C (indoor use)
- Minimum battery duration: 3 years
- Radio frequency: 868.35 MHz
- Range: 100 metres free eld
(metal, concrete walls and metal plates reduce coverage)
- Modulation: FSK
Legend

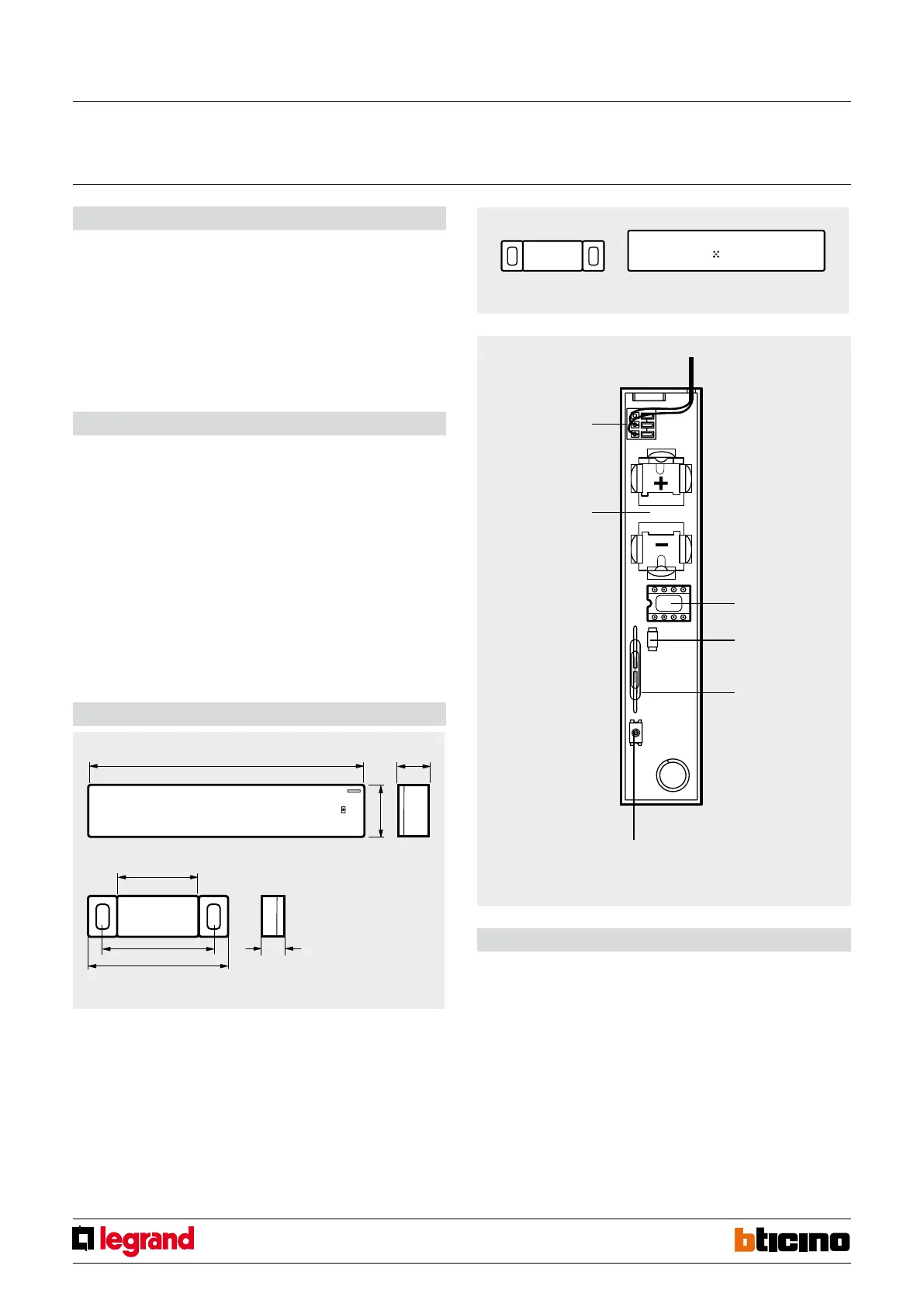

1 - Additional contact line clamp;
2 - Congurator socket;
3 - Magnetic contact;
4 - Tamper/learning;
5 - Battery housing;
6 - LED: two red ashes signal an alarm; only one ash indicates that the battery is
exhausted.
Dimensional data
CONFORMITY DECLARATION
Item 3442 meets the essential requirements of directive 1999/5/CE, as it complies with
the following standards:
ETSI EN300 220-3 ETSI EN301 489-3 EN60950 EN50090-2-2 EN50090-2-3
Year of approval of the CE mark in accordance with the above directive: 2007
Magnet
Radio transmitter
Transmitter internal view
Magnet Radio transmitter
