Conguration
Pairing magnetic contacts
1. Switch the system to “maintenance” mode.
2. Press the programming pushbutton of the radio receiver for ve seconds, until the red
LED comes on.
3. Press the tamper contact twice.
4. If the pairing of the device has been performed correctly, the red LED of the receiver
will go o. If this does not happen, repeat the procedure from step 3. If the LED
ashes, it means that the device memory is full.
5. To pair other devices, repeat from step 2.
6. Close the sensors to deactivate the tamper.
7. Perform self learning of the system from the central unit.
8. Exit “maintenance” mode.

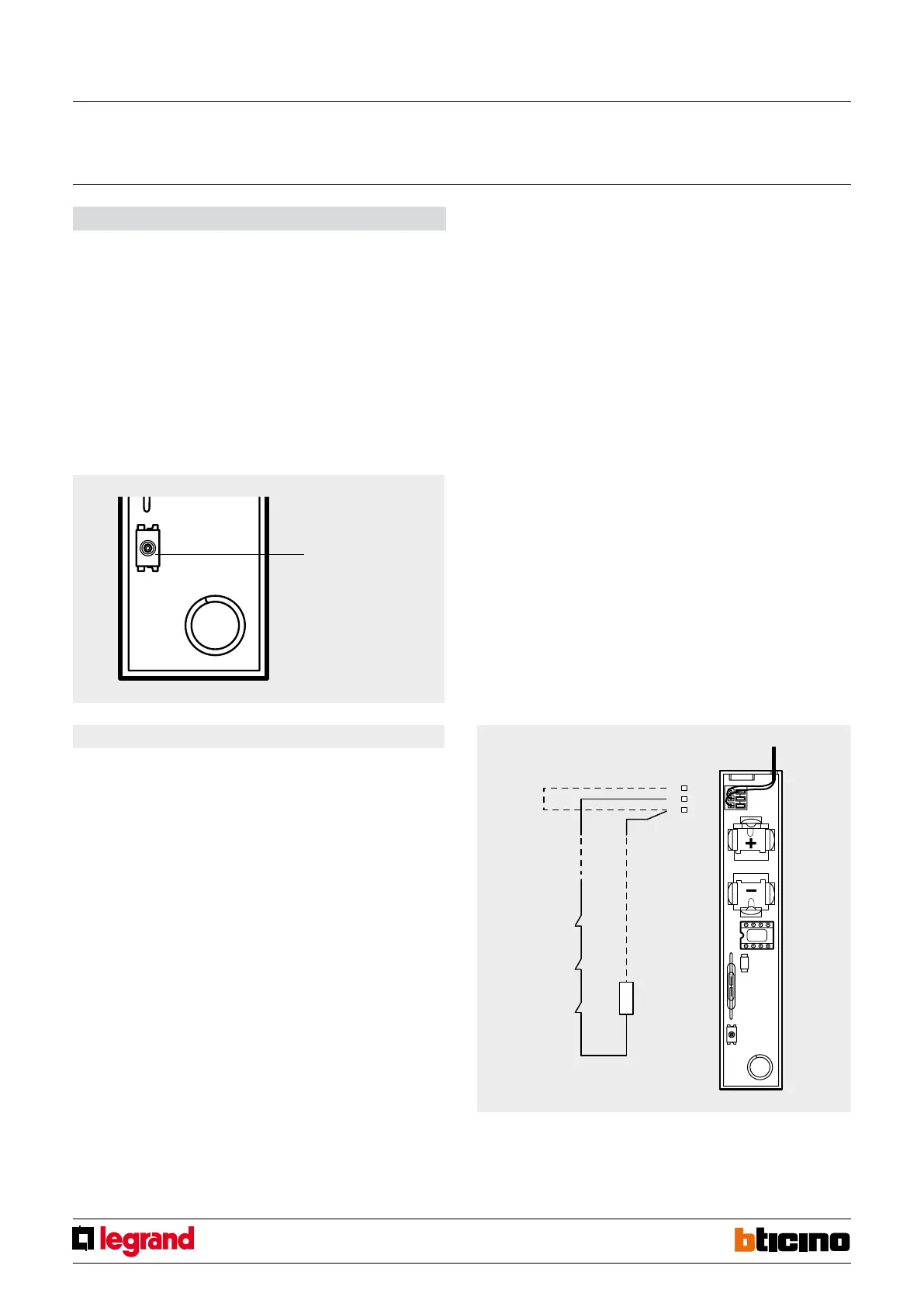

Wiring diagram
In addition to the standard NC magnetic contact, the sensor can also control the opening
of other optional NC contacts (max. of 3) connected to an appropriate clamp of the
transmitting unit, as shown in the following diagram.
Cancelling magnetic contacts
1. Switch the system to maintenance mode.
2. Remove the power supply from the radio receiver.
3. Press and hold the programming pushbutton while reconnecting the power supply to
the radio receiver.
4. After 5 seconds the LED ashes orange. If the pushbutton is released at this time, only
the remote controls are cancelled.
After 10 seconds the LED starts ashing quickly. If the pushbutton is released now,
only the sensors are cancelled.
5. After releasing the pushbutton, the LED becomes xed orange. When the LED goes
o, cancellation has been completed.
6. Perform self-learning of the system from the central unit and exit “maintenance”
mode.
Tamper/learning
Balance resistance
68K Ω
Tamper line
WARNING: For correct operation of the device the corresponding magnetic contact, or
any additional magnetic contacts, must be activated within 12 hours from the moment
the device starts operation.
Note (*): short circuit contacts – and T if no tamper line is installed
