3444
Description
This device generates an alarm signal when the sensor detects the vibrations cause by
the breaking of door or window glass. It consists of two elements:
- a vibration sensor, to be installed on the glass of the door or window to protect;
- a battery powered radio transmitter, to be installed on the frame;
Also supplied is an NC contact with additional magnet for the protection of doors and
windows.
Technical data
- Power supply: 3.6 V lithium battery - type 1/2 AA
- Operating temperature: 5 – 40°C (indoor use)
- Minimum battery duration: 3 years
- Radio frequency: 868.35 MHz
- Range: 100 metres free eld
(metal, concrete walls and metal plates reduce coverage)
- Modulation: FSK
Legend
1 - Sensor connection clamp;
2 - Congurator socket;
3 - Additional Magnetic contact;
4 - Tamper/learning;
5 - Battery housing;
6 -
LED: two red ashes signal an alarm; only one ash indicates that the battery is exhausted.

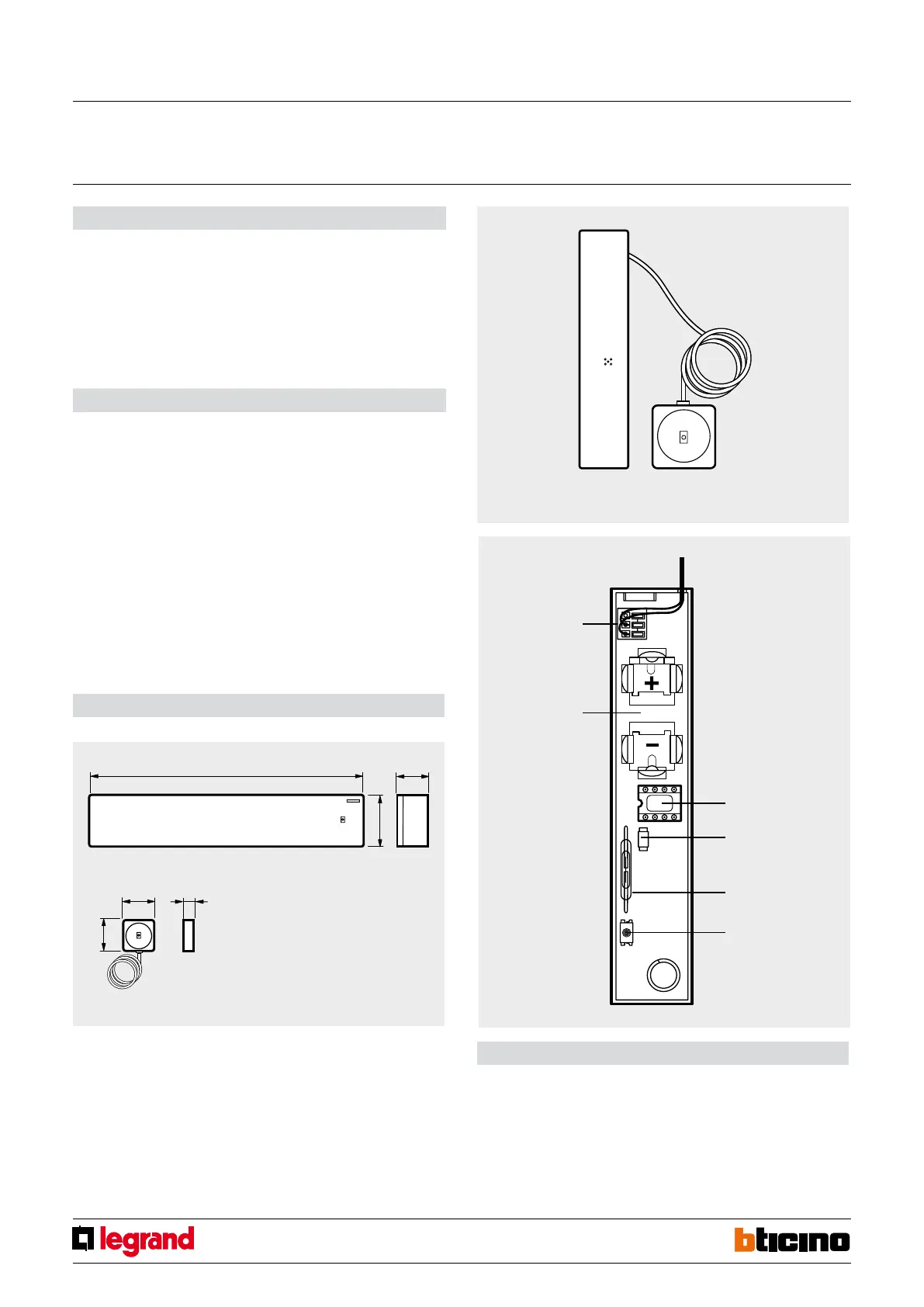

Dimensional data
CONFORMITY DECLARATION
Item 3444 meets the essential requirements of directive 1999/5/CE, as it complies with
the following standards:
ETSI EN300 220-3 ETSI EN301 489-3 EN60950 EN50090-2-2 EN50090-2-3
Year of approval of the CE mark in accordance with the above directive: 2007
Radio transmitter
Sensor
SensorRadio
transmitter
Transmitter internal view
Radio glass-breaking detector
MQ00053-c-EN 28/04/2014
