212
+–A
3479
“Auxiliary” operating mode
NOTES
- Modes 5 and 6 give the same operating results of modes 3 and 4. Their dierence is that the relay is
normally not excited. This enables an opposite behaviour in case of tampering (cutting of the wire
or BUS short circuit). In fact in mode 3 and 4 a tampering excites the device (modes indicated in
the case of actuation of alarms such as the siren, the telephone communicator, etc.); however, in
mode 5 and 6 the same tampering does not cause any actuation (modes indicated in case of safety
actuations such as electrical door locks etc.). The selection of the appropriate mode ensures total
system safety.
- The “S” key of the 3 module ush-mounted central unit or the disabling of the central unit with display,
which main function is that of silencing the sirens during a technical alarm, disables the relay if this has
been activated by the technical alarm interface congured in mode “0” or “4” (technical alarm).
- In all modes there is an auxiliary activation also in case of pre-alarm (IR detector and contact interface
with AUX congurators). Attention must therefore be paid when using the relay actuator (in modes with
memory or with sensitivity to any auxiliary channel) to avoid unwanted activations.
Congurators Description
It activates by... It resets by...
AUX
MOD
none 3 Signalling with memory of the activation of any auxiliary
channel of the system. Typical example: signalling with
memory of any technical alarm.
Any AUX device of the system Pressure of the needle key on any technical alarm
interface with AUX congurator from 1 to 9
1-9 3 Signalling with memory of the activation of the corresponding
auxiliary channel. Typical example: signalling with memory of
a specic technical alarm.
Technical alarm interface with
corresponding AUX channel
pressure of the needle key on the interface of the
active technical alarm
none 4 Signalling without memory of the activation of any auxiliary
channel of the system. Typical example: signalling without
memory of any technical alarm.
Any AUX device of the system Pressure of the needle key on any technical alarm
interface with AUX congurator from 1 to 9
1-9 4 Signalling with memory of the activation of the corresponding
auxiliary channel. Typical example: signalling without memory
of a specic technical alarm.
Technical alarm interface with
corresponding AUX channel
pressure of the needle key on the interface of the
active technical alarm
5 As mode 3 but with relay normally not excited.
6 As mode 4 but with relay normally not excited.
EXAMPLE: Activation of the solenoid valve in case of gas leak
Relay actuator conguation:
Congurator position Value
N° 1
AUX 1
MOD 6
Congurator position Value
N° 2
AUX 1
MOD 4
Technical alarm interface conguration

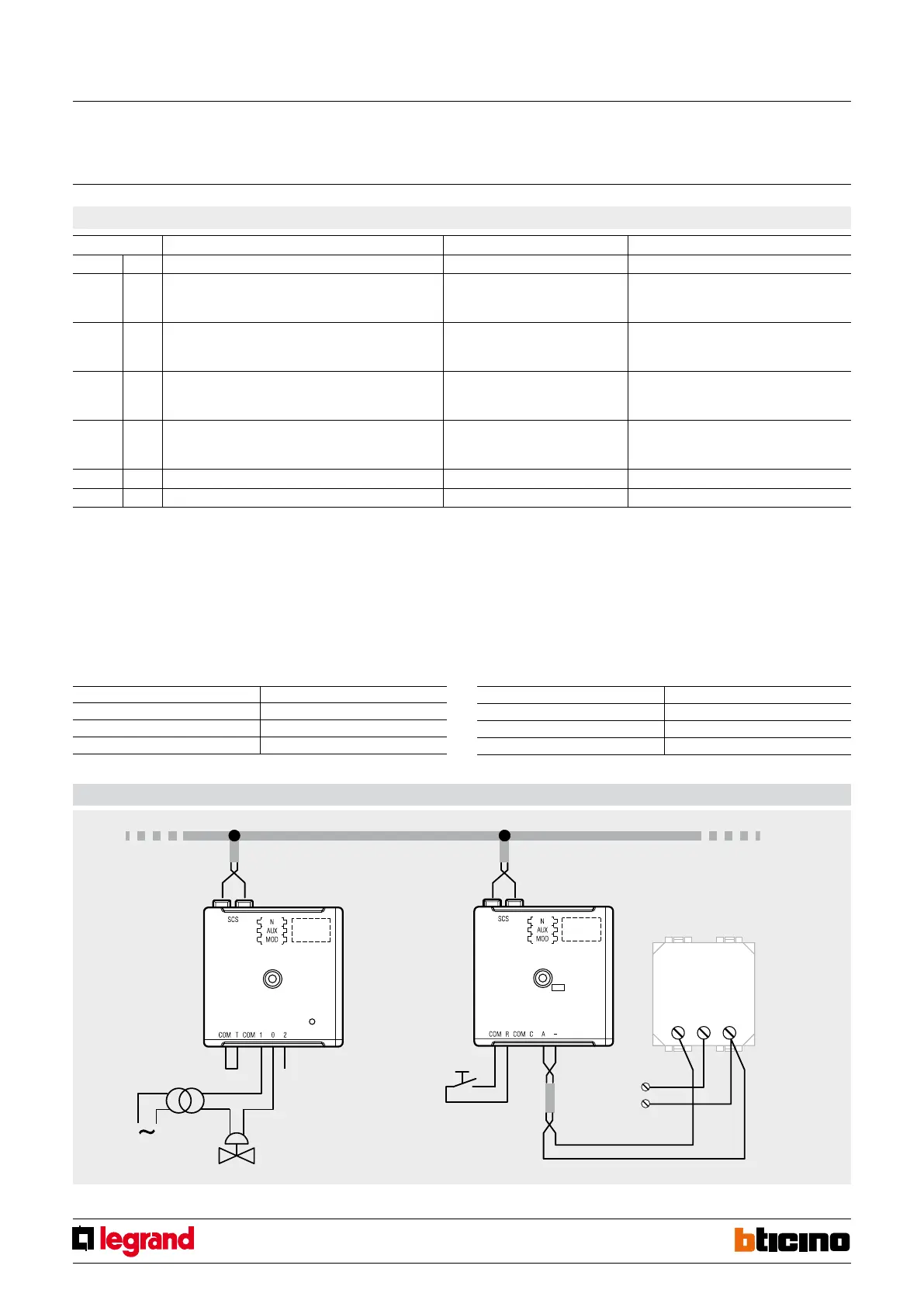

Wiring diagram
Burglar alarm BUS
to the gas detector
12 Vac
Axolute
Livinglight
Matix
Relay
actuator
Technical alarm
interface
Transformer
Solenoid valve
Alarm reset
Gas detector
Relay actuator
